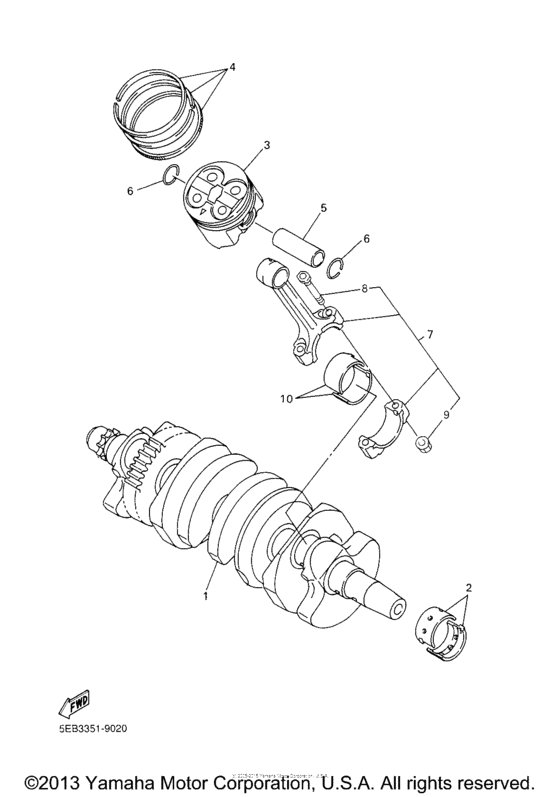

Crankshaft & Piston Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2003
- Model code
- 5SL8
- Sales region
- United States (California)
- Базовая модель
- YZFR6SRC
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-11411-00-00 Crankshaft |
5SL-11411-00-00 |
from US $802.67 |
||
|
2
|
2
5EB-11416-00-00 Plane Bearing, Crankshaft 1UR BLUE |
5EB-11416-00-00 |
from US $10.06 |
||
|
2
|
2
5EB-11416-A0-00 Plane Bearing, Crankshaft 1UR WHITE |
5EB-11416-A0-00 |
from US $10.06 |
||
|
2
|
2
5EB-11416-30-00 Plane Bearing, Crankshaft 1UR GREEN |
5EB-11416-30-00 |
from US $10.06 |
||
|
2
|
2
5EB-11416-20-00 Plane Bearing, Crankshaft 1UR BROWN |
5EB-11416-20-00 |
from US $10.06 |
||
|
2
|
2
5EB-11416-10-00 Plane Bearing, Crankshaft 1UR BLACK |
5EB-11416-10-00 |
from US $10.06 |
||
|
3
|
3
5SL-11631-00-00 Piston (Std) |
5SL-11631-00-00 |
from US $93.40 |
||
|
4
|
4
5SL-11603-00-00 Piston Ring Set (Std) |
5SL-11603-00-00 |
from US $56.65 |
||
|
5
|
5
5SL-11633-00-00 Pin, Piston |
5SL-11633-00-00 |
from US $20.83 |
||
|
6
|
6
934-50171-29-00 Circlip |
934-50171-29-00 |
from US $1.35 |
||
|
7
|
7
5SL-11650-00-00 Connecting Rod Assy |
5SL-11650-00-00 |
from US $244.54 |
||
|
8
|
8
5SL-11654-00-00 Bolt, Connecting Rod |
5SL-11654-00-00 |
from US $2.98 |
||
|
9
|
9
90179-07652-00 Nut |
90179-07652-00 |
from US $2.13 |
||
|
10
|
10
5SL-11656-20-00 Plane Bearing, Connecting RodUR BROWN |
5SL-11656-20-00 |
from US $13.46 |
||
|
10
|
10
5SL-11656-10-00 Plane Bearing, Connecting RodUR BLACK |
5SL-11656-10-00 |
from US $13.46 |
||
|
10
|
10
5SL-11656-00-00 Plane Bearing, Connecting RodUR BLUE |
5SL-11656-00-00 |
from US $13.46 |
||
|
10
|
10
5SL-11656-30-00 Plane Bearing, Connecting RodUR GREEN |
5SL-11656-30-00 |
from US $13.46 |
