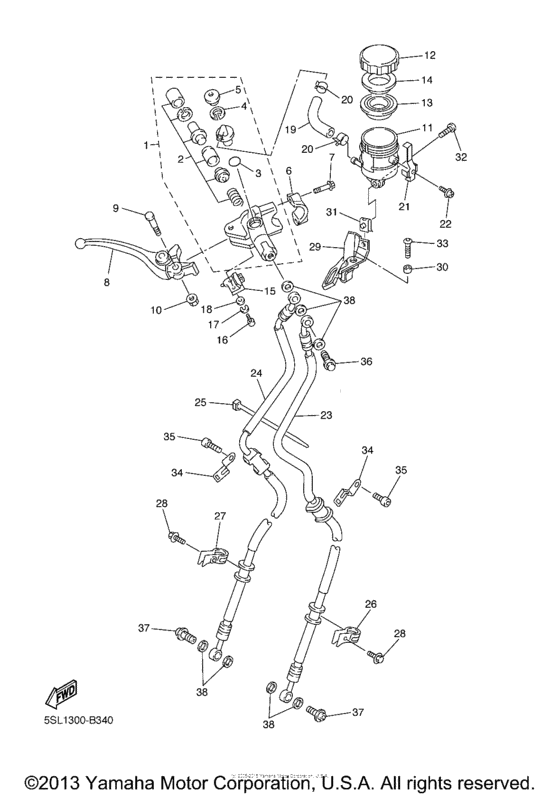

Front master cylinder Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2003
- Model code
- 5SL8
- Sales region
- United States (California)
- Базовая модель
- YZFR6SRC
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-W2587-01-00 Master Cylinder Sub Assy |
5EB-W2587-01-00 |
from US $151.98 |
||
|
2
|
2
5MT-W0041-00-00 Cylinder Kit, Master |
5MT-W0041-00-00 |
from US $42 |
||
|
3
|
3
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.35 |
||
| replacement | |||||
|
3
|
3
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
4
|
4
2VN-25866-00-00 Circlip |
2VN-25866-00-00 |
from US $3.12 |
||
|
5
|
5
3FV-2589A-00-00 Cover, Dust |
3FV-2589A-00-00 |
from US $7.79 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
5EB-26332-00-00 Bolt |
5EB-26332-00-00 |
from US $1.84 |
||
|
8
|
8
5SL-83922-00-00 Lever 2 |
5SL-83922-00-00 |
from US $52.78 |
||
|
9
|
9
3FV-2589F-00-00 Bolt, Lever |
3FV-2589F-00-00 |
from US $6.52 |
||
|
10
|
10
95606-06100-00 Nut, U |
95606-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
11
|
11
5SL-25894-10-00 Tank, Reservoir |
5SL-25894-10-00 |
from US $29.47 |
||
|
12
|
12
3GM-25852-50-00 Cap, Reservoir |
3GM-25852-50-00 |
from US $21.96 |
||
|
13
|
13
3FV-25854-00-00 Gasket, Diaphragm |
3FV-25854-00-00 |
from US $11.05 |
||
|
14
|
14
2J2-25855-50-00 Bush,diaphragm |
2J2-25855-50-00 |
from US $7.79 |
||
|
15
|
15
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $19.18 |
||
|
16
|
16
98502-04012-00 Screw, Pan Head |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
16
|
16
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
17
|
17
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
18
|
18
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
18
|
18
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
19
|
19
5PW-2582F-00-00 Hose |
5PW-2582F-00-00 |
from US $5.38 |
||
|
20
|
20
3PA-24356-00-00 Clip, Pipe 1 |
3PA-24356-00-00 |
from US $3.40 |
||
|
21
|
21
3FV-2589G-00-00 Holder |
3FV-2589G-00-00 |
from US $17.57 |
||
|
22
|
22
3GM-2589H-00-00 Screw |
3GM-2589H-00-00 |
from US $2.13 |
||
|
23
|
23
5SL-25872-00-00 Hose, Brake 1 |
5SL-25872-00-00 |
from US $95.19 |
||
|
24
|
24
5SL-25873-00-00 Hose, Brake 2 |
5SL-25873-00-00 |
from US $63.53 |
||
|
25
|
25
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
26
|
26
5SL-25886-00-00 Holder, Brake Hose |
5SL-25886-00-00 |
from US $4.11 |
||
|
27
|
27
5SL-25887-00-00
Holder, Brake Hose
|
5SL-25887-00-00 |
— | ||
|
28
|
28
90105-06041-00 Bolt, Flange |
90105-06041-00 |
from US $1.98 |
||
|
29
|
29
5SL-26292-00-00 Stay |
5SL-26292-00-00 |
from US $8.50 |
||
|
30
|
30
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
31
|
31
90183-050A0-00 Nut, Spring |
90183-050A0-00 |
from US $2.69 |
||
|
32
|
32
90149-05244-00 Bolt, Hex. Socket Button |
90149-05244-00 |
from US $1.70 |
||
| replacement | |||||
|
32
|
32
90111-05026-00 Bolt, Hex. Socket Button |
90111-05026-00 |
from US $1.70 |
||
|
33
|
33
90111-06041-00 Bolt, Hex. Socket Button |
90111-06041-00 |
from US $1.70 |
||
|
34
|
34
5SL-25876-00-00 Holder, Brake Hose 2 |
5SL-25876-00-00 |
from US $3.26 |
||
|
35
|
35
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
36
|
36
90401-10160-00 Bolt, Union(3Gm) |
90401-10160-00 |
from US $9.49 |
||
| replacement | |||||
|
36
|
36
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
37
|
37
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.55 |
||
|
38
|
38
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
38
|
38
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
