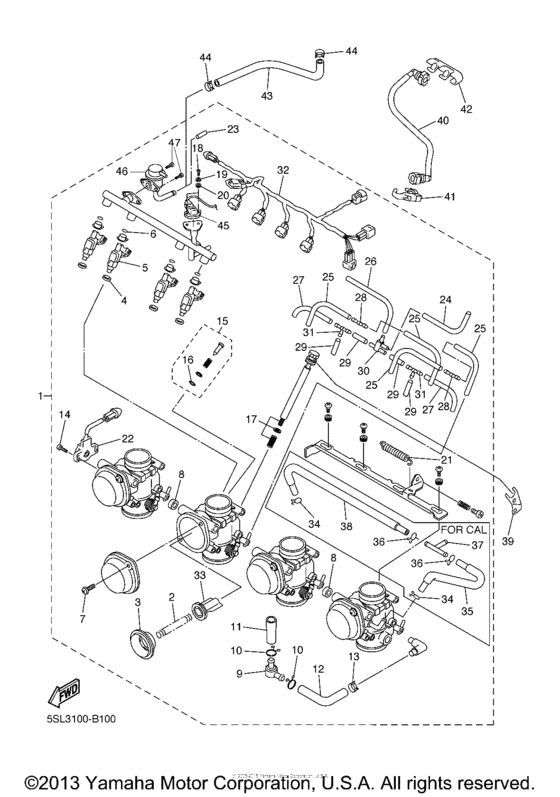

Intake (2) Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2003
- Model code
- 5SL8
- Sales region
- United States (California)
- Базовая модель
- YZFR6SRC
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-13750-00-00 Throttle Body AssyU49 |
5SL-13750-00-00 |
from US $1,733.70 |
||
|
1
|
1
5SL-13750-10-00 Throttle Body Assy |
5SL-13750-10-00 |
US $1,980.29 |
||
|
2
|
2
4SV-14933-00-00 Spring, Diaphragm |
4SV-14933-00-00 |
from US $13.46 |
||
|
3
|
3
5SL-24411-00-00 Diaphragm |
5SL-24411-00-00 |
from US $32.91 |
||
|
4
|
4
90430-09002-00 Gasket |
90430-09002-00 |
from US $7.28 |
||
|
5
|
5
5SL-13761-00-00 Injector |
5SL-13761-00-00 |
US $208.96 |
||
|
6
|
6
5FL-14147-00-00 O-Ring |
5FL-14147-00-00 |
from US $9.26 |
||
|
7
|
7
4KM-14216-00-00 Screw |
4KM-14216-00-00 |
from US $3.54 |
||
|
8
|
8
5SL-14987-00-00 Hose |
5SL-14987-00-00 |
from US $3.68 |
||
|
9
|
9
3LN-24515-00-00 Net, Filter 2 |
3LN-24515-00-00 |
from US $14.87 |
||
|
10
|
10
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
11
|
11
5SL-14148-00-00 Pipe |
5SL-14148-00-00 |
from US $3.37 |
||
|
12
|
12
5SL-14348-00-00 Pipe 1 |
5SL-14348-00-00 |
from US $25.40 |
||
|
13
|
13
90467-15001-00 Clip |
90467-15001-00 |
from US $1.56 |
||
|
14
|
14
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
15
|
15
5JW-14104-00-00 Air Screw Set |
5JW-14104-00-00 |
from US $15.87 |
||
|
16
|
16
3H1-14147-00-00 O-Ring |
3H1-14147-00-00 |
from US $10.26 |
||
|
17
|
17
5SL-14103-00-00
Throttle Screw Set
|
5SL-14103-00-00 |
— | ||
|
18
|
18
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
18
|
18
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
18
|
18
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
19
|
19
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
20
|
20
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
21
|
21
5JW-14589-00-00 Spring |
5JW-14589-00-00 |
from US $7.65 |
||
|
22
|
22
5SL-85885-00-00 Throttle Sensor Assy |
5SL-85885-00-00 |
from US $221.06 |
||
|
23
|
23
5JW-14118-00-00 Cap |
5JW-14118-00-00 |
from US $7.08 |
||
|
24
|
24
5SL-14349-00-00 Pipe |
5SL-14349-00-00 |
from US $10.06 |
||
|
25
|
25
5PW-14396-00-00 Pipe |
5PW-14396-00-00 |
from US $11.34 |
||
|
26
|
26
5PW-14349-00-00 Pipe |
5PW-14349-00-00 |
from US $6.94 |
||
|
27
|
27
68V-13533-00-00 Hose, Vacuum Sensing 4 |
68V-13533-00-00 |
from US $6.80 |
||
|
28
|
28
5PW-14251-00-00 Nipple |
5PW-14251-00-00 |
from US $3.12 |
||
|
29
|
29
5FL-14348-10-00 Pipe 1 |
5FL-14348-10-00 |
from US $4.11 |
||
|
30
|
30
5PW-1410F-00-00 Connector |
5PW-1410F-00-00 |
from US $13.46 |
||
|
31
|
31
68V-24376-00-00 Pipe, Joint 1 |
68V-24376-00-00 |
from US $9.07 |
||
|
32
|
32
5SL-82386-00-00 Extension, Wire Harness |
5SL-82386-00-00 |
from US $128.40 |
||
|
33
|
33
5PW-14112-00-00 Valve, Throttle 1 |
5PW-14112-00-00 |
from US $57.94 |
||
|
34
|
34
4LE-14137-00-00 Clip |
4LE-14137-00-00 |
from US $4.05 |
||
|
35
|
35
5SL-14465-00-00 Pipe |
5SL-14465-00-00 |
US $57.85 |
||
| replacement | |||||
|
35
|
35
5SL-14465-01-00 Pipe |
5SL-14465-01-00 |
US $41.27 |
||
|
36
|
36
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
36
|
36
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
36
|
36
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
37
|
37
90413-08012-00 Way 3 |
90413-08012-00 |
from US $4.96 |
||
|
38
|
38
5SL-14466-00-00 Pipe |
5SL-14466-00-00 |
US $18.83 |
||
|
39
|
39
5SL-14413-00-00 Stay |
5SL-14413-00-00 |
from US $3.12 |
||
|
40
|
40
5SL-13971-00-00 Pipe, Fuel 1 |
5SL-13971-00-00 |
from US $66.18 |
||
| replacement | |||||
|
40
|
40
5SL-13971-01-00 Pipe, Fuel 1 |
5SL-13971-01-00 |
from US $42.32 |
||
|
41
|
41
90464-16005-00 Clamp |
90464-16005-00 |
from US $7.65 |
||
|
42
|
42
90464-16005-00 Clamp |
90464-16005-00 |
from US $7.65 |
||
|
43
|
43
5SL-13972-00-00 Pipe, Fuel 2 |
5SL-13972-00-00 |
from US $26.78 |
||
| replacement | |||||
|
43
|
43
5SL-13972-01-00 Pipe, Fuel 2 |
5SL-13972-01-00 |
from US $26.78 |
||
|
44
|
44
90467-12003-00 Clip |
90467-12003-00 |
from US $3.54 |
||
|
45
|
45
5JW-13750-00-00
Throttle Body Assy
|
5JW-13750-00-00 |
— | ||
| replacements | |||||
|
45
|
45
5JW-13750-11-00
Throttle Body Assy
|
5JW-13750-11-00 |
— | ||
|
45
|
45
5JW-13750-10-00
Throttle Body Assy
|
5JW-13750-10-00 |
— | ||
|
46
|
46
5SL-13906-00-00 Regulator, Pressure |
5SL-13906-00-00 |
from US $127.25 |
||
|
47
|
47
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
