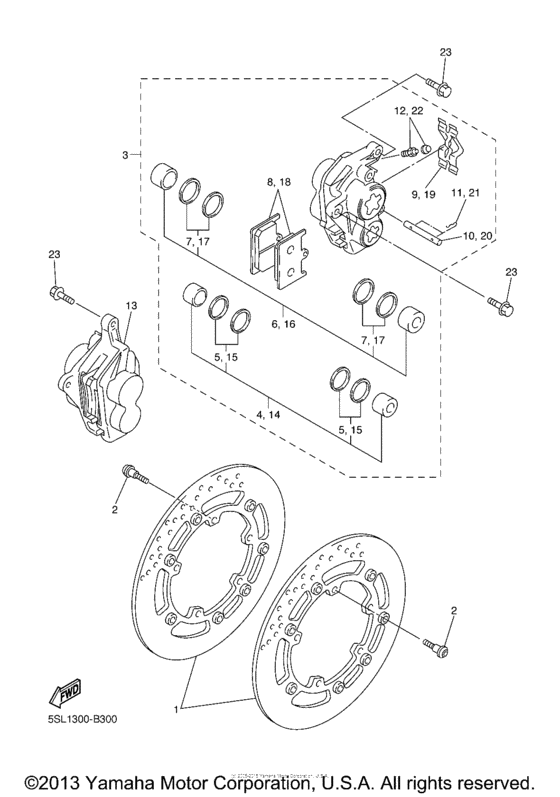

Front brake caliper Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2006
- Model code
- 4P62
- Sales region
- United States (California)
- Базовая модель
- YZFR6SVC
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-2581T-00-00 Disc Brake Assy |
5SL-2581T-00-00 |
from US $464 |
||
|
2
|
2
90109-064G6-00 Bolt |
90109-064G6-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
901-09062-54-00 Bolt |
901-09062-54-00 |
from US $1.56 |
||
|
3
|
3
5SL-2580T-00-00 Caliper Assy (Left) |
5SL-2580T-00-00 |
from US $538.47 |
||
|
4
|
4
4SV-W0057-00-00
Piston Assy, Caliper
|
4SV-W0057-00-00 |
— | ||
| replacement | |||||
|
4
|
4
4SV-25802-00-00 Piston Assy, Caliper |
4SV-25802-00-00 |
from US $105.55 |
||
|
5
|
5
3MA-W0047-10-00
Caliper Seal Kit
|
3MA-W0047-10-00 |
— | ||
| replacement | |||||
|
5
|
5
3MA-25803-10-00 Caliper Seal Kit |
3MA-25803-10-00 |
from US $36.34 |
||
|
6
|
6
4SV-W0057-10-00
Piston Assy, Caliper
|
4SV-W0057-10-00 |
— | ||
| replacement | |||||
|
6
|
6
4SV-25802-10-00 Piston Assy, Caliper |
4SV-25802-10-00 |
from US $105.55 |
||
|
7
|
7
3GM-W0047-10-00
Caliper Seal Kit
|
3GM-W0047-10-00 |
— | ||
| replacement | |||||
|
7
|
7
3GM-25803-10-00 Caliper Seal Kit |
3GM-25803-10-00 |
from US $35.28 |
||
|
8
|
8
5SL-W0045-00-00 Brake Pad Kit |
5SL-W0045-00-00 |
from US $70.92 |
||
| replacement | |||||
|
8
|
8
5SL-25805-00-00 Brake Pad Kit |
5SL-25805-00-00 |
from US $73.22 |
||
|
9
|
9
4SV-25919-00-00 Support, Pad |
4SV-25919-00-00 |
from US $16.86 |
||
|
10
|
10
4SV-25924-00-00 Pin, Pad |
4SV-25924-00-00 |
from US $14.88 |
||
|
11
|
11
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $5.10 |
||
|
12
|
12
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $14.45 |
||
|
13
|
13
5SL-2580U-00-00 Caliper Assy (Right) |
5SL-2580U-00-00 |
from US $540.04 |
||
|
14
|
14
4SV-W0057-00-00
Piston Assy, Caliper
|
4SV-W0057-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4SV-25802-00-00 Piston Assy, Caliper |
4SV-25802-00-00 |
from US $105.55 |
||
|
15
|
15
3MA-W0047-10-00
Caliper Seal Kit
|
3MA-W0047-10-00 |
— | ||
| replacement | |||||
|
15
|
15
3MA-25803-10-00 Caliper Seal Kit |
3MA-25803-10-00 |
from US $36.34 |
||
|
16
|
16
4SV-W0057-10-00
Piston Assy, Caliper
|
4SV-W0057-10-00 |
— | ||
| replacement | |||||
|
16
|
16
4SV-25802-10-00 Piston Assy, Caliper |
4SV-25802-10-00 |
from US $105.55 |
||
|
17
|
17
3GM-W0047-10-00
Caliper Seal Kit
|
3GM-W0047-10-00 |
— | ||
| replacement | |||||
|
17
|
17
3GM-25803-10-00 Caliper Seal Kit |
3GM-25803-10-00 |
from US $35.28 |
||
|
18
|
18
5SL-W0045-00-00 Brake Pad Kit |
5SL-W0045-00-00 |
from US $70.92 |
||
| replacement | |||||
|
18
|
18
5SL-25805-00-00 Brake Pad Kit |
5SL-25805-00-00 |
from US $73.22 |
||
|
19
|
19
4SV-25919-00-00 Support, Pad |
4SV-25919-00-00 |
from US $16.86 |
||
|
20
|
20
4SV-25924-00-00 Pin, Pad |
4SV-25924-00-00 |
from US $14.88 |
||
|
21
|
21
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $5.10 |
||
|
22
|
22
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $14.45 |
||
|
23
|
23
90105-105A7-00 Bolt, Flange |
90105-105A7-00 |
from US $5.09 |
||
