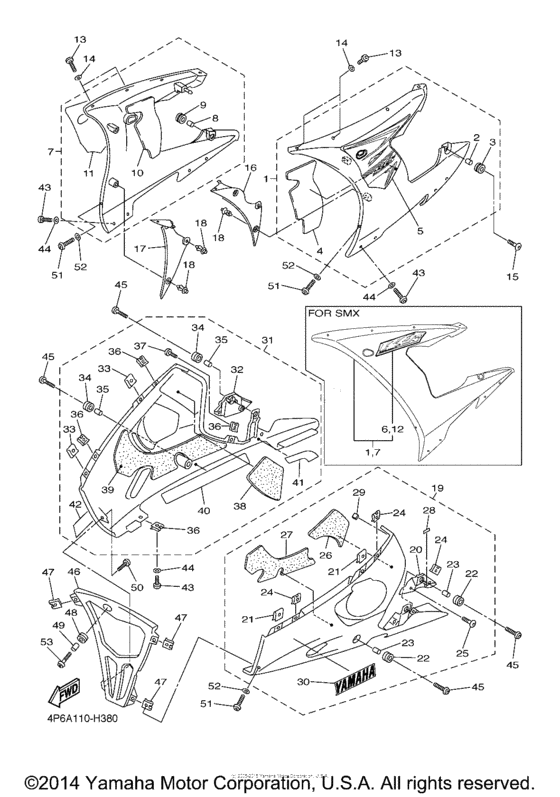

Cowling (2) Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2009
- Model code
- 4P6A
- Sales region
- USA
- Базовая модель
- YZFR6SYL
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-Y283U-S0-P1 Panel Assembly 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5SL-Y283U-S0-P1 |
from US $461.70 |
||
|
1
|
1
5SL-Y283U-T0-P0 Panel Assembly 1Use for Color MAT BLACK 2 MBL2 / 0582 |
5SL-Y283U-T0-P0 |
US $461.70 |
||
|
2
|
2
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
3
|
3
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
4
|
4
5SL-2836T-00-00 Damper, Locating 1 |
5SL-2836T-00-00 |
from US $6.01 |
||
|
5
|
5
4P6-28391-20-00 Graphic 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4P6-28391-20-00 |
US $113.89 |
||
|
6
|
6
4P6-28315-50-00 Emblemfor Color Black Metallic X SMX / 0903 |
4P6-28315-50-00 |
from US $21.02 |
||
|
7
|
7
5SL-Y283V-T0-P0 Panel Assembly 2Use for Color MAT BLACK 2 MBL2 / 0582 |
5SL-Y283V-T0-P0 |
US $461.70 |
||
|
7
|
7
5SL-Y283V-S0-P1 Panel Assembly 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5SL-Y283V-S0-P1 |
US $549.59 |
||
|
8
|
8
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
9
|
9
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
10
|
10
5SL-2836U-00-00 Damper, Locating 2 |
5SL-2836U-00-00 |
from US $7.08 |
||
|
11
|
11
4P6-28392-20-00 Graphic 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4P6-28392-20-00 |
US $113.89 |
||
|
12
|
12
4P6-28315-50-00 Emblemfor Color Black Metallic X SMX / 0903 |
4P6-28315-50-00 |
from US $21.02 |
||
|
13
|
13
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
14
|
14
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
15
|
15
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
16
|
16
5SL-2836K-00-00 Panel, Inner 1 |
5SL-2836K-00-00 |
from US $15.58 |
||
|
17
|
17
5SL-2836L-00-00 Panel, Inner 2 |
5SL-2836L-00-00 |
from US $12.33 |
||
|
18
|
18
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
19
|
19
5SL-Y2808-F0-P4 Cover Assy, Underfor Color Black Metallic X SMX / 0903 |
5SL-Y2808-F0-P4 |
US $455.38 |
||
|
19
|
19
5SL-Y2808-E0-P4 Cover Assy, Underfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5SL-Y2808-E0-P4 |
from US $345.72 |
||
|
20
|
20
5SL-2843J-00-00 Cover 3 |
5SL-2843J-00-00 |
from US $5.24 |
||
|
21
|
21
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
21
|
21
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
22
|
22
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
23
|
23
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
24
|
24
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
25
|
25
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $1.70 |
||
|
26
|
26
5SL-2834E-00-00 Damper 3 |
5SL-2834E-00-00 |
from US $3.12 |
||
|
27
|
27
5SL-2837J-00-00 Damper 5 |
5SL-2837J-00-00 |
from US $8.50 |
||
|
28
|
28
1HX-27415-00-00 Plate, Damper |
1HX-27415-00-00 |
from US $1.34 |
||
|
29
|
29
5SL-21649-00-00 Damper |
5SL-21649-00-00 |
from US $1.34 |
||
|
30
|
30
4P6-2153E-10-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4P6-2153E-10-00 |
US $15.88 |
||
|
30
|
30
4P6-2153E-20-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
4P6-2153E-20-00 |
US $15.88 |
||
|
31
|
31
5SL-Y2809-E0-P4 Cover Assy 2, Under2, UNDER Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5SL-Y2809-E0-P4 |
US $400.90 |
||
|
31
|
31
5SL-Y2809-F0-P4 Cover Assy 2, Under2, UNDER Use for Color Black Metallic X SMX / 0903 |
5SL-Y2809-F0-P4 |
US $500.24 |
||
|
32
|
32
5SL-2844J-00-00 Cover 4 |
5SL-2844J-00-00 |
from US $7.08 |
||
|
33
|
33
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
33
|
33
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
34
|
34
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
35
|
35
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
36
|
36
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
37
|
37
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $1.70 |
||
|
38
|
38
5SL-2834F-00-00 Damper |
5SL-2834F-00-00 |
from US $3.12 |
||
|
39
|
39
5SL-2837K-00-00 Damper 6 |
5SL-2837K-00-00 |
from US $7.48 |
||
|
40
|
40
5SL-2838G-00-00 Seat 1 |
5SL-2838G-00-00 |
US $12.42 |
||
|
41
|
41
5SL-2848K-00-00 Seat 2 |
5SL-2848K-00-00 |
US $6.44 |
||
|
42
|
42
4P6-2153E-20-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
4P6-2153E-20-00 |
US $15.88 |
||
|
42
|
42
4P6-2153E-10-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4P6-2153E-10-00 |
US $15.88 |
||
|
43
|
43
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
44
|
44
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
45
|
45
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
46
|
46
5SL-2836M-00-00 Panel, Inner 3 |
5SL-2836M-00-00 |
from US $39.51 |
||
|
47
|
47
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
48
|
48
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
49
|
49
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
50
|
50
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
50
|
50
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
51
|
51
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
52
|
52
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
53
|
53
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
