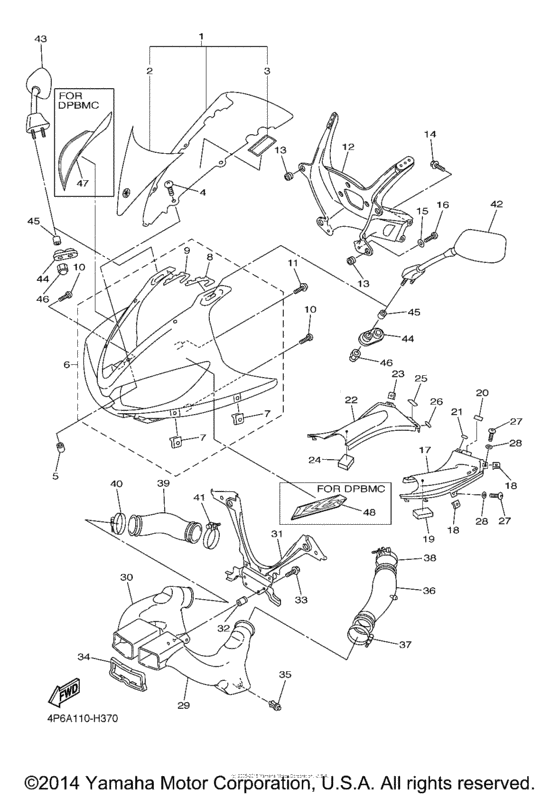

Cowling (1) Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2009
- Model code
- 4P6A
- Sales region
- USA
- Базовая модель
- YZFR6SYL
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-Y2881-31-00 Windshield |
5SL-Y2881-31-00 |
US $161.01 |
||
|
2
|
2
5SL-2832P-00-00
Graphic, 18
18 |
5SL-2832P-00-00 |
— | ||
|
3
|
3
4B5-2815K-00-00 Label, Notice Windshield 1 |
4B5-2815K-00-00 |
from US $6.52 |
||
|
4
|
4
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.56 |
||
|
5
|
5
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
6
|
6
5SL-28330-01-P1 Upper Cowling Assy 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5SL-28330-01-P1 |
US $285.99 |
||
|
6
|
6
5SL-28330-01-P5 Upper Cowling Assy 1Use for Color Black Metallic X SMX / 0903 |
5SL-28330-01-P5 |
from US $285.99 |
||
|
7
|
7
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
7
|
7
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
8
|
8
5SL-28428-00-00 Seal 1 |
5SL-28428-00-00 |
from US $5.29 |
||
|
9
|
9
5SL-28429-00-00 Seal 2 |
5SL-28429-00-00 |
US $8.39 |
||
|
10
|
10
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
10
|
10
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
11
|
11
90160-05007-00 Screw, Round Tapping |
90160-05007-00 |
from US $2.13 |
||
|
12
|
12
5SL-28356-00-00 Stay 1 |
5SL-28356-00-00 |
from US $348.16 |
||
|
13
|
13
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
14
|
14
90105-08052-00 Bolt, Flange |
90105-08052-00 |
from US $2.13 |
||
|
15
|
15
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
16
|
16
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
17
|
17
5SL-2837L-01-00 Panel, Console 1 |
5SL-2837L-01-00 |
from US $33.86 |
||
|
18
|
18
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
19
|
19
4XY-21649-00-00 Damper |
4XY-21649-00-00 |
from US $5.38 |
||
|
20
|
20
1FK-84527-00-00 Damper 2 |
1FK-84527-00-00 |
from US $2.69 |
||
| replacement | |||||
|
20
|
20
1HX-28227-00-00 Damper, 2 |
1HX-28227-00-00 |
from US $2.69 |
||
|
21
|
21
5SL-28416-00-00 Damper 2 |
5SL-28416-00-00 |
from US $1.84 |
||
|
22
|
22
5SL-2837M-01-00 Panel, Console 2 |
5SL-2837M-01-00 |
from US $33.86 |
||
|
23
|
23
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
24
|
24
4XY-21649-00-00 Damper |
4XY-21649-00-00 |
from US $5.38 |
||
|
25
|
25
1FK-84527-00-00 Damper 2 |
1FK-84527-00-00 |
from US $2.69 |
||
| replacement | |||||
|
25
|
25
1HX-28227-00-00 Damper, 2 |
1HX-28227-00-00 |
from US $2.69 |
||
|
26
|
26
5SL-28416-00-00 Damper 2 |
5SL-28416-00-00 |
from US $1.84 |
||
|
27
|
27
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
28
|
28
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
29
|
29
5SL-2838R-00-00 Duct 2 |
5SL-2838R-00-00 |
from US $41.59 |
||
|
30
|
30
5SL-2838T-00-00 Duct 3 |
5SL-2838T-00-00 |
from US $62.17 |
||
|
31
|
31
5SL-2838E-00-00 Cover, Headlight |
5SL-2838E-00-00 |
from US $28.48 |
||
|
32
|
32
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
33
|
33
90119-05001-00 Bolt, With Washer |
90119-05001-00 |
from US $1.84 |
||
|
34
|
34
5SL-28371-00-00
Damper
|
5SL-28371-00-00 |
— | ||
|
35
|
35
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
36
|
36
5EB-1446F-00-00 Joint, Surge Tank 1 |
5EB-1446F-00-00 |
from US $26.64 |
||
|
37
|
37
4TV-13575-00-00
Hose Clamp Assy
|
4TV-13575-00-00 |
— | ||
| replacement | |||||
|
37
|
37
904-50640-04-00 Hose Clamp Assy |
904-50640-04-00 |
from US $4.64 |
||
|
38
|
38
90460-59211-00 Hose Clamp Assy |
90460-59211-00 |
from US $8.22 |
||
| replacements | |||||
|
38
|
38
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
38
|
38
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
39
|
39
5EB-1446F-00-00 Joint, Surge Tank 1 |
5EB-1446F-00-00 |
from US $26.64 |
||
|
40
|
40
4TV-13575-00-00
Hose Clamp Assy
|
4TV-13575-00-00 |
— | ||
| replacement | |||||
|
40
|
40
904-50640-04-00 Hose Clamp Assy |
904-50640-04-00 |
from US $4.64 |
||
|
41
|
41
90460-59211-00 Hose Clamp Assy |
90460-59211-00 |
from US $8.22 |
||
| replacements | |||||
|
41
|
41
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
41
|
41
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
42
|
42
5SL-26280-00-00 Rear View Mirror Assy (Left)Rear view mirror assy (left) |
5SL-26280-00-00 |
from US $102.79 |
||
|
43
|
43
5SL-26290-00-00 Rear View Mirror Assy (Right) |
5SL-26290-00-00 |
from US $102.79 |
||
|
44
|
44
5SL-26298-00-00 Plate, Mirror Fitting 1 |
5SL-26298-00-00 |
from US $2.69 |
||
|
45
|
45
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
46
|
46
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.70 |
||
|
47
|
47
4P6-2832K-00-00 Graphic, 1212 |
4P6-2832K-00-00 |
US $29.84 |
||
|
48
|
48
4P6-28328-10-00 Emblem |
4P6-28328-10-00 |
US $9.85 |
||
