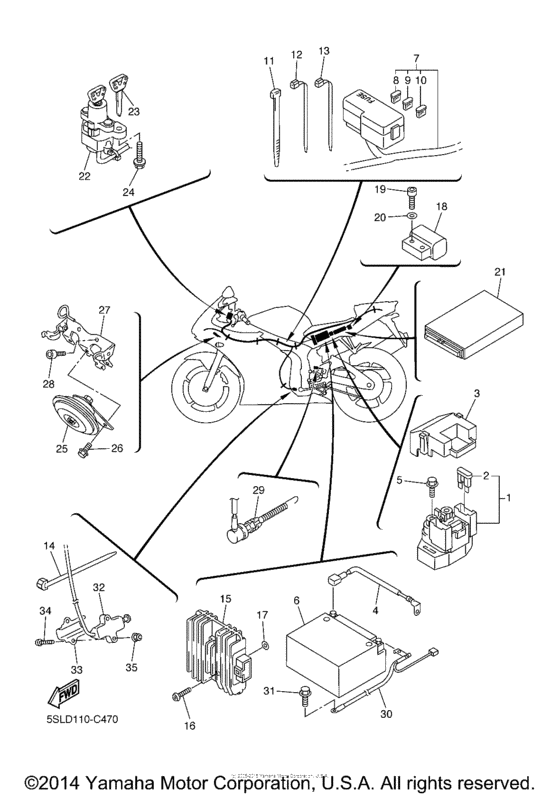

Electrical (2) Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2009
- Model code
- 4P6A
- Sales region
- USA
- Базовая модель
- YZFR6SYL
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-81940-12-00 Starter Relay Assy (Rc19-40) |
5SL-81940-12-00 |
from US $82.48 |
||
|
2
|
2
5EA-82151-00-00 Fuse (40A-Bl)40A-BL |
5EA-82151-00-00 |
from US $2.98 |
||
|
3
|
3
5SL-82119-10-00 Cover, Lead Wire |
5SL-82119-10-00 |
from US $4.39 |
||
|
4
|
4
5SL-82115-00-00 Wire, Plus Lead |
5SL-82115-00-00 |
from US $16.72 |
||
|
5
|
5
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
6
|
6
5FL-82100-01-00
Gt9B4 Gs Battery -
GS BATTERY - |
5FL-82100-01-00 |
— | ||
| replacements | |||||
|
6
|
6
GT9-B4000-00-00 LENS, TAILLIGHTGS BATTERY - |
GT9-B4000-00-00 |
US $135.88 |
||
|
6
|
6
YT9-BBS00-00-00 Battery Assy (Gs Gt9B-4)GS BATTERY - |
YT9-BBS00-00-00 |
US $182.90 |
||
|
7
|
7
5SL-82590-30-00 Wire Harness Assy |
5SL-82590-30-00 |
US $697.43 |
||
|
8
|
8
5JJ-82151-10-00 Fuse (15A-Bl)15A |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
8
|
8
67F-82151-50-00 Fuse (15A)15A |
67F-82151-50-00 |
from US $1.98 |
||
|
9
|
9
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.54 |
||
|
10
|
10
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
10
|
10
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.98 |
||
|
11
|
11
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
12
|
12
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
13
|
13
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
14
|
14
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
14
|
14
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
15
|
15
5SL-81960-00-00 Rectifier & Regulator Assy |
5SL-81960-00-00 |
from US $122.55 |
||
|
16
|
16
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.56 |
||
|
17
|
17
90202-06001-00 Washer, Plate |
90202-06001-00 |
from US $2.13 |
||
|
18
|
18
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
18
|
18
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
US $103.09 |
||
|
19
|
19
91317-04025-00 Bolt |
91317-04025-00 |
from US $1.42 |
||
|
20
|
20
90201-042E0-00 Washer, Plate |
90201-042E0-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90201-043H7-00 Washer, Plate (34L) |
90201-043H7-00 |
from US $1.70 |
||
|
21
|
21
5SL-8591A-E0-00 Engine Control Unit Assy |
5SL-8591A-E0-00 |
US $1,408.67 |
||
|
22
|
22
5SL-82501-11-00 Main Switch Steering Lock |
5SL-82501-11-00 |
from US $172.70 |
||
|
23
|
23
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $11.19 |
||
|
24
|
24
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
24
|
24
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
|
25
|
25
4TH-83371-00-00 Horn |
4TH-83371-00-00 |
from US $50.98 |
||
| replacement | |||||
|
25
|
25
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
26
|
26
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
26
|
26
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
27
|
27
5SL-23377-00-00 Bracket, Horn |
5SL-23377-00-00 |
US $29.52 |
||
|
28
|
28
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
29
|
29
5SL-82530-00-00 Stop Switch Assy |
5SL-82530-00-00 |
from US $23.94 |
||
|
30
|
30
5SL-82116-01-00 Wire, Minus Lead |
5SL-82116-01-00 |
US $31.14 |
||
|
31
|
31
91380-06012-00 Bolt |
91380-06012-00 |
from US $1.42 |
||
|
32
|
32
5PX-82566-72-00 Switch, Side Stand |
5PX-82566-72-00 |
from US $73.78 |
||
|
33
|
33
5JJ-82388-00-00 Plate |
5JJ-82388-00-00 |
from US $7.37 |
||
|
34
|
34
92017-05030-00 Bolt, Button Head |
92017-05030-00 |
from US $2.13 |
||
|
35
|
35
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
