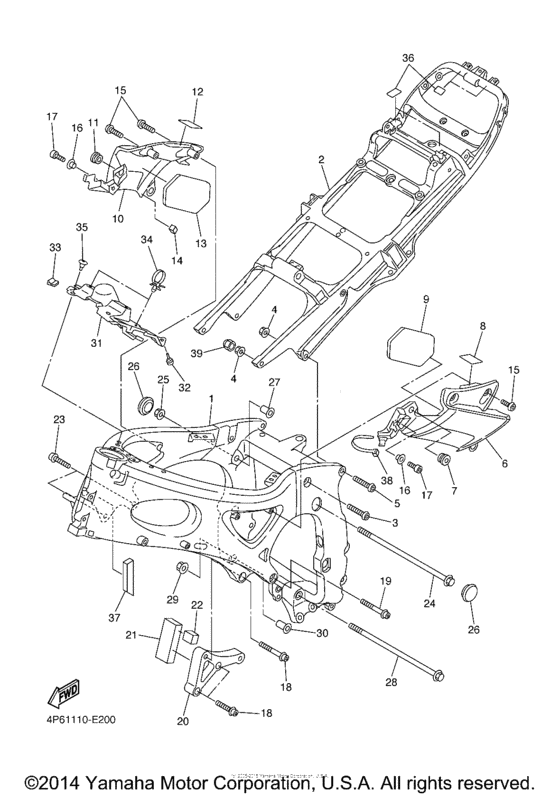

Frame Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2009
- Model code
- 4P6A
- Sales region
- USA
- Базовая модель
- YZFR6SYL
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-21110-01-00 Frame Comp |
5SL-21110-01-00 |
from US $2,257.20 |
||
|
2
|
2
5SL-21190-00-00 Rear Frame Comp |
5SL-21190-00-00 |
from US $706.20 |
||
|
3
|
3
90149-10007-00 Screw |
90149-10007-00 |
from US $4.39 |
||
|
4
|
4
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
5
|
5
90149-10006-00 Screw |
90149-10006-00 |
from US $3.97 |
||
|
6
|
6
5SL-2117V-00-00 Cover 7 |
5SL-2117V-00-00 |
from US $35.42 |
||
|
7
|
7
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
7
|
7
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
8
|
8
3KJ-24723-00-00 Damper, Seat |
3KJ-24723-00-00 |
from US $2.13 |
||
|
9
|
9
5SL-28415-00-00 Damper 1 |
5SL-28415-00-00 |
from US $3.26 |
||
|
10
|
10
5SL-2117W-00-00 Cover 8 |
5SL-2117W-00-00 |
from US $35.42 |
||
|
11
|
11
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
12
|
12
3KJ-24723-00-00 Damper, Seat |
3KJ-24723-00-00 |
from US $2.13 |
||
|
13
|
13
5SL-28415-00-00 Damper 1 |
5SL-28415-00-00 |
from US $3.26 |
||
|
14
|
14
5SL-21649-00-00 Damper |
5SL-21649-00-00 |
from US $1.34 |
||
|
15
|
15
90111-05006-00 Bolt, Hex. Socket Button |
90111-05006-00 |
from US $1.84 |
||
|
16
|
16
90387-050X4-00 Collar |
90387-050X4-00 |
from US $5.24 |
||
|
17
|
17
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
18
|
18
90110-10008-00 Bolt, Hexagon Socket Head |
90110-10008-00 |
from US $3.54 |
||
|
19
|
19
90110-10007-00 Bolt, Hexagon Socket Head |
90110-10007-00 |
from US $4.82 |
||
|
20
|
20
5SL-21283-00-00 Support, Engine |
5SL-21283-00-00 |
from US $102.99 |
||
|
21
|
21
5SL-21488-00-00 Damper |
5SL-21488-00-00 |
from US $1.59 |
||
|
22
|
22
5SL-21486-00-00 Damper 2 |
5SL-21486-00-00 |
US $3.33 |
||
|
23
|
23
90110-10008-00 Bolt, Hexagon Socket Head |
90110-10008-00 |
from US $3.54 |
||
|
24
|
24
901-05100-42-00 Bolt, Flange |
901-05100-42-00 |
from US $12.33 |
||
|
25
|
25
90179-10696-00 Nut |
90179-10696-00 |
from US $9.65 |
||
|
26
|
26
90338-27007-00 Plug |
90338-27007-00 |
from US $1.84 |
||
|
27
|
27
4C8-21495-00-00 Bolt, Engine Adjusting |
4C8-21495-00-00 |
from US $18.56 |
||
|
28
|
28
901-05106-A2-00
Bolt, Washer Based
|
901-05106-A2-00 |
— | ||
| replacement | |||||
|
28
|
28
5BR-F2141-10-00 Shaft Pivot |
5BR-F2141-10-00 |
US $20.54 |
||
|
29
|
29
90179-10696-00 Nut |
90179-10696-00 |
from US $9.65 |
||
|
30
|
30
4C8-21495-00-00 Bolt, Engine Adjusting |
4C8-21495-00-00 |
from US $18.56 |
||
|
31
|
31
5SL-2117M-00-00 Cover 2 |
5SL-2117M-00-00 |
US $31.43 |
||
|
32
|
32
36Y-21639-00-00
Damper 2
|
36Y-21639-00-00 |
— | ||
|
33
|
33
5SL-21208-00-00 Seal Set, 1 |
5SL-21208-00-00 |
US $4.97 |
||
|
34
|
34
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
34
|
34
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
35
|
35
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
36
|
36
5SL-21268-00-00 Seal |
5SL-21268-00-00 |
from US $1.84 |
||
|
37
|
37
5SL-2139X-00-00 Damper |
5SL-2139X-00-00 |
from US $1.53 |
||
|
38
|
38
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
39
|
39
5YU-2143A-00-00 Cap |
5YU-2143A-00-00 |
US $1.70 |
||
