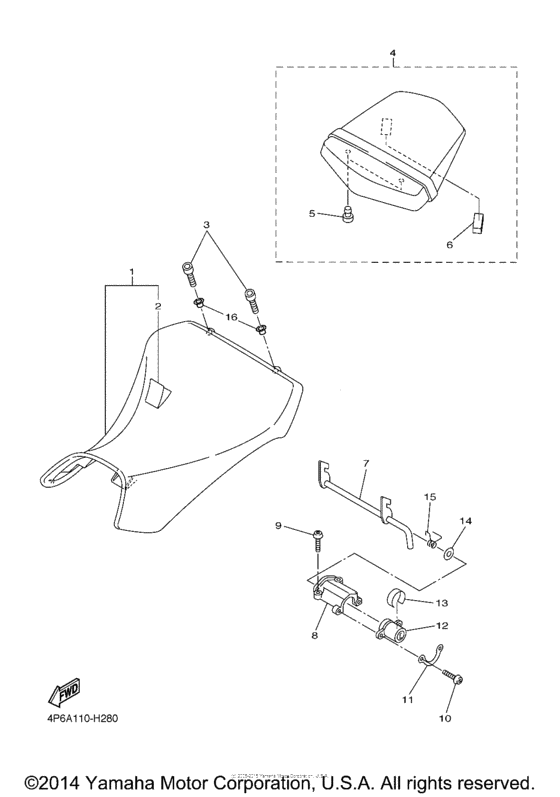

Seat Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2009
- Model code
- 4P6A
- Sales region
- USA
- Базовая модель
- YZFR6SYL
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-24710-00-00
Single Seat Assy
|
5SL-24710-00-00 |
— | ||
|
2
|
2
5SL-2470F-00-00 Seat Cover Comp |
5SL-2470F-00-00 |
US $58.95 |
||
|
3
|
3
90110-06258-00 Bolt, Hexagon Socket Head |
90110-06258-00 |
from US $1.70 |
||
|
4
|
4
5SL-24750-00-00 Tandem Seat Assy |
5SL-24750-00-00 |
from US $175.46 |
||
| replacement | |||||
|
4
|
4
5SL-24750-01-00 |
5SL-24750-01-00 |
US $200.65 |
||
|
5
|
5
5SL-24723-00-00 Damper, Seat |
5SL-24723-00-00 |
from US $1.56 |
||
|
6
|
6
5SL-24724-00-00 Damper, Seat |
5SL-24724-00-00 |
from US $1.56 |
||
|
7
|
7
5SL-24780-00-00
Seat Lock Assy
|
5SL-24780-00-00 |
— | ||
|
8
|
8
5SL-24792-00-00 Plate |
5SL-24792-00-00 |
from US $16.29 |
||
|
9
|
9
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.56 |
||
|
10
|
10
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
|
11
|
11
5SL-2479R-00-00 Plate, Cover |
5SL-2479R-00-00 |
from US $1.98 |
||
|
12
|
12
5SL-W2470-00-00 SEAT LOCK ASSY |
5SL-W2470-00-00 |
from US $52.22 |
||
|
13
|
13
5SL-24858-00-00 Seal |
5SL-24858-00-00 |
from US $3.12 |
||
|
14
|
14
90202-08001-00 Washer, Plate |
90202-08001-00 |
from US $2.27 |
||
|
15
|
15
5SL-24758-00-00 Spring |
5SL-24758-00-00 |
from US $1.98 |
||
|
16
|
16
90387-06066-00 Collar |
90387-06066-00 |
from US $1.65 |
||
