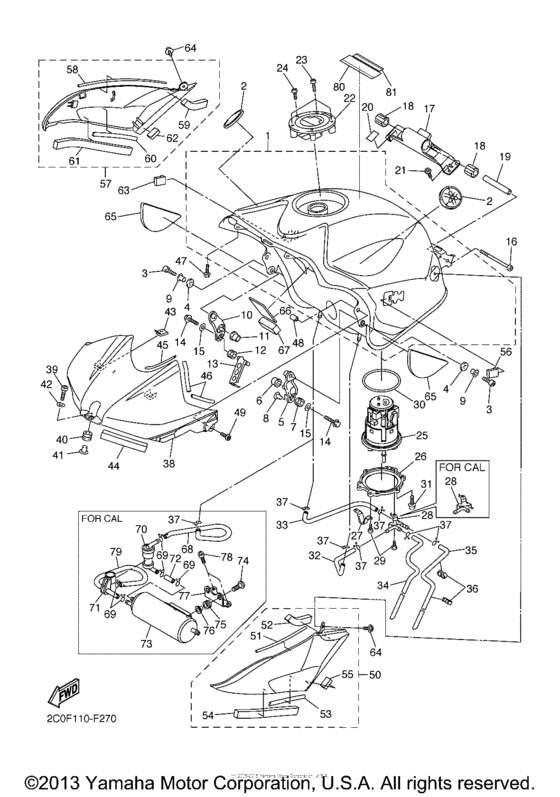

Fuel tank Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2007
- Model code
- 2C0F
- Sales region
- United States (California)
- Базовая модель
- YZFR6WC
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-YK241-00-P0
Fuel Tank Comp
for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
2C0-YK241-00-P0 |
— | ||
|
1
|
1
2C0-YK241-00-P4 Fuel Tank Compfor Color Deep Red Metallic K DRMK / 0918 |
2C0-YK241-00-P4 |
from US $864.12 |
||
|
1
|
1
2C0-YK241-00-P5 Fuel Tank Compfor Color DARK BLUISH GRAYMETALLIC 8 DBNM8 / 0919 |
2C0-YK241-00-P5 |
US $864.12 |
||
|
2
|
2
5SL-2413B-00-00 Emblem |
5SL-2413B-00-00 |
from US $23.82 |
||
|
3
|
3
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
4
|
4
5VY-24183-00-00 Damper, Locating 3 |
5VY-24183-00-00 |
from US $3.26 |
||
|
5
|
5
5VY-24191-00-00 Bracket, Fuel Tank 1 |
5VY-24191-00-00 |
from US $11.90 |
||
| replacement | |||||
|
5
|
5
5VY-24191-10-00 Bracket, Fuel Tank 1 |
5VY-24191-10-00 |
from US $11.90 |
||
|
6
|
6
5VY-24181-00-00 Damper, Locating 1 |
5VY-24181-00-00 |
from US $2.69 |
||
|
7
|
7
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
8
|
8
90387-066Y6-00 Collar |
90387-066Y6-00 |
from US $4.39 |
||
|
9
|
9
90387-06143-00 Collar |
90387-06143-00 |
from US $6.94 |
||
|
10
|
10
5VY-24192-00-00 Bracket, Fuel Tank 2 |
5VY-24192-00-00 |
from US $11.90 |
||
| replacement | |||||
|
10
|
10
5VY-24192-10-00 Bracket, Fuel Tank 2 |
5VY-24192-10-00 |
from US $11.90 |
||
|
11
|
11
5VY-24181-00-00 Damper, Locating 1 |
5VY-24181-00-00 |
from US $2.69 |
||
|
12
|
12
90480-10542-00 Grommet |
90480-10542-00 |
from US $5.95 |
||
|
13
|
13
2C0-21339-00-00 Guide, Wire |
2C0-21339-00-00 |
from US $12.75 |
||
|
14
|
14
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
15
|
15
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.70 |
||
|
16
|
16
91317-06090-00 Bolt |
91317-06090-00 |
from US $3.74 |
||
|
17
|
17
2C0-2413Y-00-00 Bracket, Tank Fitting |
2C0-2413Y-00-00 |
from US $35.56 |
||
|
18
|
18
5SL-24183-00-00 Damper, Locating 3 |
5SL-24183-00-00 |
from US $3.68 |
||
|
19
|
19
903-87060-55-00 Collar |
903-87060-55-00 |
from US $4.39 |
||
|
20
|
20
2C0-21566-00-00 Tape, 1 |
2C0-21566-00-00 |
from US $2.55 |
||
|
21
|
21
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
22
|
22
5JJ-24602-00-00
Cap Assy
|
5JJ-24602-00-00 |
— | ||
| replacement | |||||
|
22
|
22
39P-24602-00-00 Cap Assy |
39P-24602-00-00 |
from US $164.98 |
||
|
23
|
23
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
24
|
24
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
25
|
25
2C0-13907-00-00
Fuel Pump Comp
|
2C0-13907-00-00 |
— | ||
| replacements | |||||
|
25
|
25
2C0-13907-01-00 Fuel Pump Comp |
2C0-13907-01-00 |
from US $740.52 |
||
|
25
|
25
2C0-13907-02-00 Fuel Pump Comp. |
2C0-13907-02-00 |
US $906.32 |
||
|
25
|
25
2C0-13907-03-00 |
2C0-13907-03-00 |
US $1,024.69 |
||
|
26
|
26
2C0-24491-00-00 Bracket, Fuel Pump |
2C0-24491-00-00 |
from US $69.14 |
||
|
27
|
27
5PW-24192-00-00 Bracket, Fuel Tank 2 |
5PW-24192-00-00 |
US $59 |
||
|
28
|
28
2C0-24135-00-00 Clamp 1U49 2C0F |
2C0-24135-00-00 |
from US $22.77 |
||
|
28
|
28
2C0-24135-10-00 Clamp 1CA 2C0G |
2C0-24135-10-00 |
US $22 |
||
|
29
|
29
90154-05012-00 Screw, Bind |
90154-05012-00 |
from US $1.35 |
||
| replacement | |||||
|
29
|
29
98907-05008-00 Screw, Binding |
98907-05008-00 |
from US $1.98 |
||
|
30
|
30
5JW-24486-00-00
O-Ring
|
5JW-24486-00-00 |
— | ||
| replacement | |||||
|
30
|
30
19B-24486-01-00 O-Ring |
19B-24486-01-00 |
from US $20.97 |
||
|
31
|
31
90110-05014-00 Bolt, Hexagon Socket Head |
90110-05014-00 |
from US $1.70 |
||
|
32
|
32
2C0-24315-00-00 Pipe 5 |
2C0-24315-00-00 |
from US $6.28 |
||
|
33
|
33
2C0-24316-00-00 Pipe 6 |
2C0-24316-00-00 |
from US $7.93 |
||
|
34
|
34
2C0-24317-00-00 Pipe 7 |
2C0-24317-00-00 |
from US $19.41 |
||
|
34
|
34
2C0-24317-10-00
Pipe 7
|
2C0-24317-10-00 |
— | ||
|
35
|
35
2C0-24313-00-00 Pipe 3 |
2C0-24313-00-00 |
from US $13.07 |
||
|
36
|
36
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.66 |
||
|
37
|
37
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
37
|
37
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
38
|
38
2C0-2171A-00-P0
Cover, Top
for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
2C0-2171A-00-P0 |
— | ||
|
38
|
38
2C0-2171A-00-P2 Cover, Topfor Color MAT BLACK 2 MBL2 / 0582 |
2C0-2171A-00-P2 |
US $203.66 |
||
|
38
|
38
2C0-2171A-00-P4 Cover, Topfor Color Deep Red Metallic K DRMK / 0918 |
2C0-2171A-00-P4 |
from US $203.66 |
||
|
39
|
39
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
|
40
|
40
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.28 |
||
| replacement | |||||
|
40
|
40
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
41
|
41
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
41
|
41
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
42
|
42
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
43
|
43
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.98 |
||
|
44
|
44
2C0-2414J-00-00 Damper, Plate 2 |
2C0-2414J-00-00 |
from US $1.84 |
||
|
45
|
45
2C0-2414K-00-00 Damper, Plate 3 |
2C0-2414K-00-00 |
from US $1.62 |
||
|
46
|
46
2C0-2414N-00-00 Damper, Plate |
2C0-2414N-00-00 |
from US $0.95 |
||
| replacement | |||||
|
46
|
46
90520-03016-00 Damper, Plate |
90520-03016-00 |
from US $1.34 |
||
|
47
|
47
90105-05002-00 Bolt, Flange |
90105-05002-00 |
from US $1.70 |
||
|
48
|
48
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
49
|
49
98907-05014-00 Screw, Bind |
98907-05014-00 |
from US $1.56 |
||
| replacement | |||||
|
49
|
49
901-5405X-03-00
Screw, Binding (11H)
|
901-5405X-03-00 |
— | ||
|
50
|
50
2C0-24106-00-00 Tank Side Cover Assy 1 |
2C0-24106-00-00 |
from US $73.36 |
||
|
51
|
51
2C0-2414H-00-00 Damper, Plate 1 |
2C0-2414H-00-00 |
from US $1.70 |
||
|
52
|
52
2C0-2414P-00-00 Damper, Plate 5 |
2C0-2414P-00-00 |
from US $1.84 |
||
|
53
|
53
5PW-2414J-00-00 Damper, Plate 2 |
5PW-2414J-00-00 |
from US $2.27 |
||
|
54
|
54
2C0-24184-00-00 Damper, Locating 4 |
2C0-24184-00-00 |
from US $1.84 |
||
|
55
|
55
2C0-2414R-00-00 Damper, Plate 6 |
2C0-2414R-00-00 |
from US $2.69 |
||
|
56
|
56
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.41 |
||
|
57
|
57
2C0-24108-00-00 Tank Side Cover Assy 2 |
2C0-24108-00-00 |
from US $73.36 |
||
|
58
|
58
2C0-2414H-00-00 Damper, Plate 1 |
2C0-2414H-00-00 |
from US $1.70 |
||
|
59
|
59
2C0-2414P-00-00 Damper, Plate 5 |
2C0-2414P-00-00 |
from US $1.84 |
||
|
60
|
60
5PW-2414J-00-00 Damper, Plate 2 |
5PW-2414J-00-00 |
from US $2.27 |
||
|
61
|
61
2C0-24184-00-00 Damper, Locating 4 |
2C0-24184-00-00 |
from US $1.84 |
||
|
62
|
62
2C0-2414R-00-00 Damper, Plate 6 |
2C0-2414R-00-00 |
from US $2.69 |
||
|
63
|
63
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.41 |
||
|
64
|
64
90159-05015-00 Screw, With Washer |
90159-05015-00 |
from US $2.27 |
||
|
65
|
65
2C0-24145-00-00 Damper, Side Cover |
2C0-24145-00-00 |
from US $5.81 |
||
|
66
|
66
5EJ-2414H-00-00 Damper, Plate 1 |
5EJ-2414H-00-00 |
from US $1.84 |
||
|
67
|
67
5JX-21732-00-00 Seal 1 |
5JX-21732-00-00 |
from US $1.98 |
||
|
68
|
68
2C0-24314-00-00 Pipe 4 |
2C0-24314-00-00 |
US $33.84 |
||
|
69
|
69
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
69
|
69
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
70
|
70
2C0-24180-00-00 Roll Over Valve Assy |
2C0-24180-00-00 |
from US $43.93 |
||
|
71
|
71
2C0-24398-00-00
Band 1
|
2C0-24398-00-00 |
— | ||
|
72
|
72
90445-11732-00 Hose (L120) |
90445-11732-00 |
from US $2.81 |
||
| replacement | |||||
|
72
|
72
90445-113E8-00 Hose (L120) |
90445-113E8-00 |
from US $3.54 |
||
|
73
|
73
5EL-24170-00-00 Canister Assy |
5EL-24170-00-00 |
from US $510.26 |
||
|
74
|
74
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.70 |
||
|
75
|
75
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
76
|
76
90387-062L2-00 Collar |
90387-062L2-00 |
from US $3.54 |
||
|
77
|
77
2C0-2419F-00-00 Bracket, Canistor |
2C0-2419F-00-00 |
from US $11.90 |
||
|
78
|
78
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
79
|
79
2C0-1443J-00-00 Pipe |
2C0-1443J-00-00 |
US $27.41 |
||
| replacement | |||||
|
79
|
79
2C0-1443J-01-00 Pipe |
2C0-1443J-01-00 |
US $32.24 |
||
|
80
|
80
5GK-2118K-00-00 Label, Caution |
5GK-2118K-00-00 |
from US $3.40 |
||
|
81
|
81
5PW-2415E-11-00 Label, Caution |
5PW-2415E-11-00 |
from US $2.55 |
||
| replacement | |||||
|
81
|
81
5PW-2415E-12-00 |
5PW-2415E-12-00 |
US $4.32 |
||
