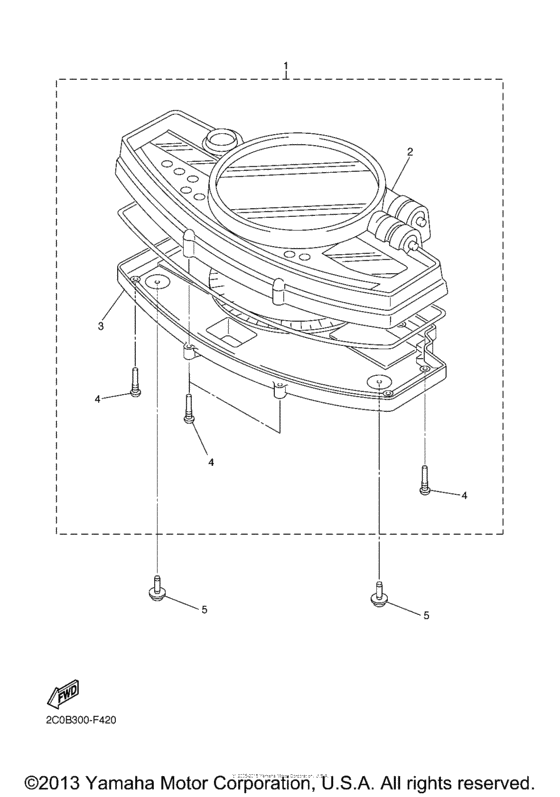

Meter Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2007
- Model code
- 2C0F
- Sales region
- United States (California)
- Базовая модель
- YZFR6WC
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-83500-50-00 Meter Assy |
2C0-83500-50-00 |
from US $602.02 |
||
| replacement | |||||
|
1
|
1
2C0-83500-51-00 BRACKET, REFLECTOR 1 |
2C0-83500-51-00 |
US $947.99 |
||
|
2
|
2
5VY-8353E-00-00 Case, Meter Upper |
5VY-8353E-00-00 |
from US $204.48 |
||
|
3
|
3
5VY-83572-00-00 Case,comp Under Set |
5VY-83572-00-00 |
from US $47.94 |
||
| replacement | |||||
|
3
|
3
999-99036-13-00 Case,comp Under Set |
999-99036-13-00 |
from US $36.79 |
||
|
4
|
4
5PW-8352S-00-00 Screw, Panel Ftting |
5PW-8352S-00-00 |
from US $1.84 |
||
|
5
|
5
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.34 |
||
