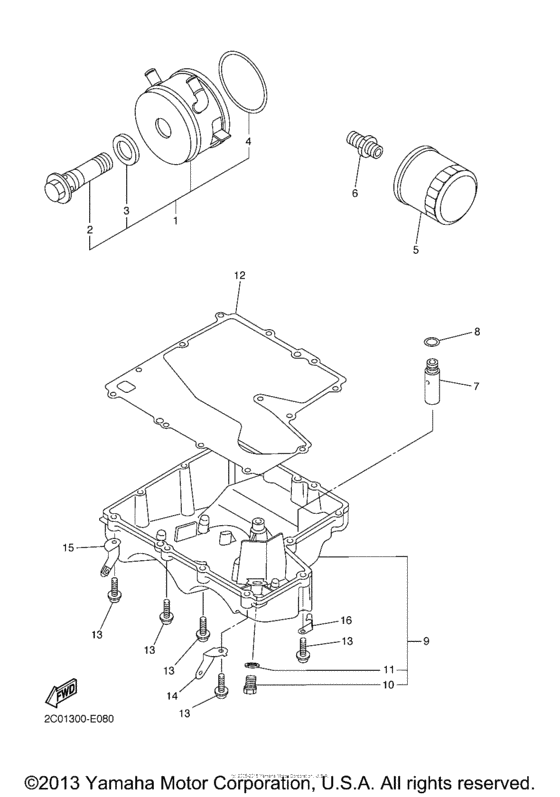

Oil cleaner Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2007
- Model code
- 2C0F
- Sales region
- United States (California)
- Базовая модель
- YZFR6WC
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-13470-00-00 Oil Cooler Assy |
2C0-13470-00-00 |
from US $512.86 |
||
| replacement | |||||
|
1
|
1
13S-13470-00-00 Oil Cooler Assy |
13S-13470-00-00 |
from US $512.86 |
||
|
2
|
2
5EB-12822-00-00 Bolt, Union |
5EB-12822-00-00 |
from US $48.77 |
||
|
3
|
3
5EB-13475-00-00 Gasket |
5EB-13475-00-00 |
from US $12.61 |
||
|
4
|
4
5JW-13473-00-00 O-Ring |
5JW-13473-00-00 |
from US $20.26 |
||
|
5
|
5
5GH-13440-20-00
Element Assy, Oil Cleaner
|
5GH-13440-20-00 |
— | ||
| replacement | |||||
|
5
|
5
5GH-13440-80-00 Element Assy, Oil Cleaner |
5GH-13440-80-00 |
from US $21.50 |
||
|
6
|
6
90401-20145-00 Bolt, Union |
90401-20145-00 |
from US $14.60 |
||
| replacement | |||||
|
6
|
6
90401-20007-00 Bolt, Union |
90401-20007-00 |
from US $14.73 |
||
|
7
|
7
2C0-13490-00-00 Relief Valve Assy |
2C0-13490-00-00 |
from US $46.97 |
||
|
8
|
8
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
9
|
9
2C0-13417-00-00 Strainer Cover Assy |
2C0-13417-00-00 |
from US $99.20 |
||
| replacement | |||||
|
9
|
9
2C0-13400-00-00 Strainer Cover Assy |
2C0-13400-00-00 |
from US $99.20 |
||
|
10
|
10
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
11
|
11
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
12
|
12
2C0-13414-00-00
Gasket, Strainer Cover
|
2C0-13414-00-00 |
— | ||
| replacement | |||||
|
12
|
12
2C0-13414-01-00 Gasket, Strainer Cover |
2C0-13414-01-00 |
from US $14.03 |
||
|
13
|
13
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
|
14
|
14
2C0-2836A-00-00 Bracket 1 |
2C0-2836A-00-00 |
from US $7.37 |
||
|
15
|
15
2C0-2836E-00-00 Bracket 2 |
2C0-2836E-00-00 |
from US $7.37 |
||
|
16
|
16
90465-10040-00 Clamp |
90465-10040-00 |
from US $4.39 |
||
