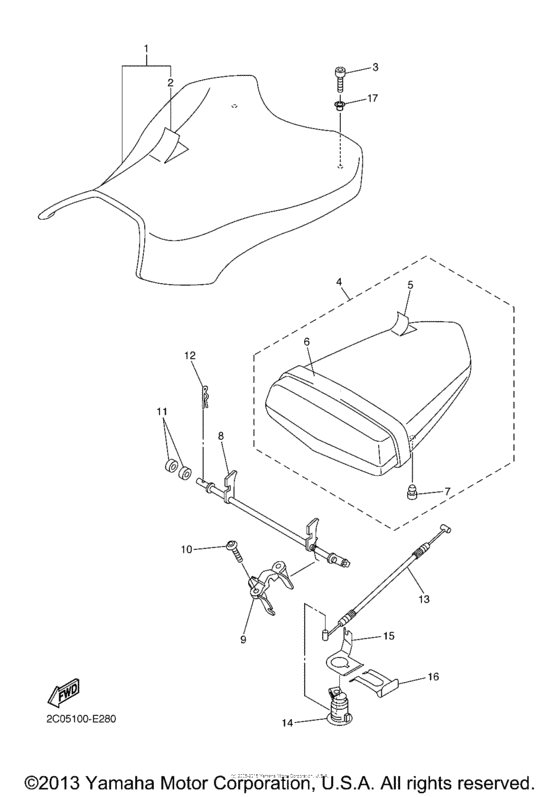

Seat Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2007
- Model code
- 2C0F
- Sales region
- United States (California)
- Базовая модель
- YZFR6WC
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-24710-00-00 Single Seat Assy |
2C0-24710-00-00 |
from US $151.06 |
||
| replacement | |||||
|
1
|
1
2C0-24710-01-00 |
2C0-24710-01-00 |
US $180.88 |
||
|
2
|
2
2C0-24711-00-00 Cover, Single Seat |
2C0-24711-00-00 |
from US $60.09 |
||
|
3
|
3
90110-06258-00 Bolt, Hexagon Socket Head |
90110-06258-00 |
from US $1.70 |
||
|
4
|
4
2C0-24750-00-00 Tandem Seat Assy |
2C0-24750-00-00 |
from US $194.27 |
||
|
5
|
5
2C0-24751-00-00 Cover, Tandem Seat |
2C0-24751-00-00 |
from US $36.57 |
||
|
6
|
6
2C0-24720-00-00 Seat Band Assy |
2C0-24720-00-00 |
from US $42.32 |
||
|
7
|
7
5SL-24723-00-00 Damper, Seat |
5SL-24723-00-00 |
from US $1.56 |
||
|
8
|
8
2C0-24780-00-00 Seat Lock Assy |
2C0-24780-00-00 |
from US $56.78 |
||
| replacement | |||||
|
8
|
8
2C0-24780-10-00 Seat Lock Assy |
2C0-24780-10-00 |
from US $56.78 |
||
|
9
|
9
2C0-24792-00-00 Plate |
2C0-24792-00-00 |
from US $13.74 |
||
|
10
|
10
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.70 |
||
|
11
|
11
2C0-24825-00-00 Spacer, Carrier |
2C0-24825-00-00 |
from US $1.84 |
||
|
12
|
12
90468-16001-00 Clip |
90468-16001-00 |
from US $1.34 |
||
|
13
|
13
2C0-2478E-00-00 Cable, Seat Lock |
2C0-2478E-00-00 |
from US $12.19 |
||
|
14
|
14
5VY-W2470-00-00 Rotor Set |
5VY-W2470-00-00 |
from US $61.48 |
||
|
15
|
15
5VY-2117K-01-00 Stay, Lock |
5VY-2117K-01-00 |
from US $3.40 |
||
|
16
|
16
5VY-2176V-00-00 Spring, Lock 2 |
5VY-2176V-00-00 |
from US $4.11 |
||
|
17
|
17
90387-06066-00 Collar |
90387-06066-00 |
from US $1.65 |
||
