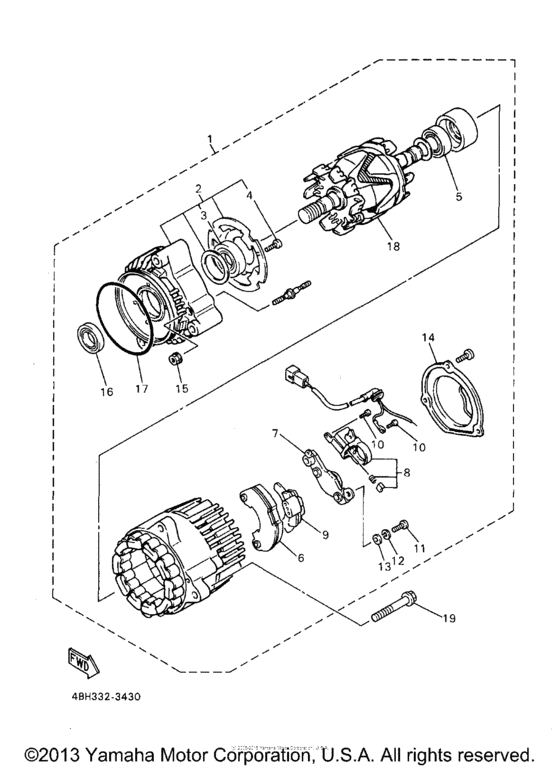

Generator Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-81600-01-00 A.c. Generator Assy |
4SV-81600-01-00 |
from US $1,139.16 |
||
| replacements | |||||
|
1
|
1
4KG-81600-00-00 A.c. Generator Assy |
4KG-81600-00-00 |
from US $1,068.19 |
||
|
1
|
1
4KG-81600-03-00 A.c. Generator Assy |
4KG-81600-03-00 |
US $1,178.87 |
||
|
2
|
2
4BH-81634-00-00 Head Wire Assy |
4BH-81634-00-00 |
from US $450.12 |
||
| replacement | |||||
|
2
|
2
4KG-81634-00-00 Stator Assy |
4KG-81634-00-00 |
from US $450.12 |
||
|
3
|
3
4BH-81643-00-00 Bearing |
4BH-81643-00-00 |
from US $14.88 |
||
| replacement | |||||
|
3
|
3
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
4
|
4
4BH-81645-00-00 Screw |
4BH-81645-00-00 |
from US $0.50 |
||
| replacement | |||||
|
4
|
4
98907-04014-00 Screw, Binding |
98907-04014-00 |
from US $0.52 |
||
|
5
|
5
4BH-81643-10-00 Bearing |
4BH-81643-10-00 |
from US $39.38 |
||
|
6
|
6
4BH-81970-00-00 Rectifier Assembly |
4BH-81970-00-00 |
from US $373.74 |
||
|
7
|
7
36Y-81910-50-00 Voltage Regulator Assembly |
36Y-81910-50-00 |
from US $394.88 |
||
|
8
|
8
3FV-81619-00-00 Brush Holder Assembly |
3FV-81619-00-00 |
from US $68.11 |
||
|
9
|
9
4BH-81972-00-00 Cover, Rectifier |
4BH-81972-00-00 |
from US $7.79 |
||
|
10
|
10
3FV-81645-00-00 Screw |
3FV-81645-00-00 |
from US $9.49 |
||
|
11
|
11
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
4BH-81604-00-00 Cover Assembly |
4BH-81604-00-00 |
from US $45.59 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
16
|
16
36Y-81638-50-00 Oil Seal |
36Y-81638-50-00 |
from US $21.96 |
||
|
17
|
17
2KT-81642-50-00 O-Ring |
2KT-81642-50-00 |
from US $22.24 |
||
|
18
|
18
4BH-81660-00-00 Rotor Assembly |
4BH-81660-00-00 |
from US $382.28 |
||
|
19
|
19
95817-08065-00 Bolt, Flange |
95817-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
19
|
19
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.10 |
||
|
19
|
19
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
