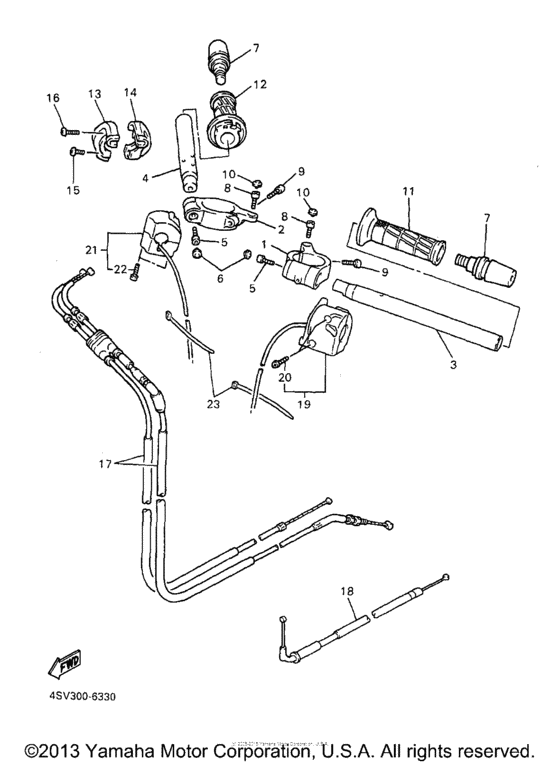

Steering handle cable Diagram Yamaha YZF1000R Thunderace
- Year
- 1997
- Model code
- 4YW2
- Sales region
- United States (California)
- Engine Capacity
- 1000
- Model
- YZF1000R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SV-26121-00-00 Handlebar (Left) |
4SV-26121-00-00 |
US $153.31 |
||
|
2
|
2
4SV-26122-00-00 Handlebar (Right) |
4SV-26122-00-00 |
US $147.49 |
||
|
3
|
3
4SV-26111-00-00
Handlebar
|
4SV-26111-00-00 |
— | ||
|
4
|
4
4SV-26112-00-00 Bar, Handle |
4SV-26112-00-00 |
from US $66.04 |
||
|
5
|
5
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.07 |
||
|
6
|
6
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
7
|
7
4SV-26246-00-00 End, Grip |
4SV-26246-00-00 |
from US $33.35 |
||
|
8
|
8
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
9
|
9
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
10
|
10
10L-23469-00-00 Cap, Bolt |
10L-23469-00-00 |
from US $4.25 |
||
|
11
|
11
4FM-26241-00-00 Grip |
4FM-26241-00-00 |
from US $31.23 |
||
| replacement | |||||
|
11
|
11
4FM-26241-01-00 Grip (Left) |
4FM-26241-01-00 |
from US $34.14 |
||
|
12
|
12
4FM-26240-00-00 Grip Assy |
4FM-26240-00-00 |
from US $50.29 |
||
| replacement | |||||
|
12
|
12
4FM-26240-01-00 Grip Assy |
4FM-26240-01-00 |
from US $50.29 |
||
|
13
|
13
3LN-26281-01-00 Cap, Grip Upper |
3LN-26281-01-00 |
from US $28.76 |
||
|
14
|
14
3LN-26282-01-00 Cap, Grip Lower |
3LN-26282-01-00 |
from US $28.76 |
||
|
15
|
15
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
16
|
16
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
17
|
17
4SV-26302-00-00 Throttle Cable Ass |
4SV-26302-00-00 |
US $79.16 |
||
| replacement | |||||
|
17
|
17
4SV-26302-01-00 Throttle Cable Assy |
4SV-26302-01-00 |
from US $52.12 |
||
|
18
|
18
4SV-26331-00-00 Cable, Starter 1 |
4SV-26331-00-00 |
from US $28.96 |
||
| replacement | |||||
|
18
|
18
4SV-26331-01-00 Cable, Starter 1 |
4SV-26331-01-00 |
from US $19.94 |
||
|
19
|
19
4WN-83973-00-00
Switch, Handle 3
|
4WN-83973-00-00 |
— | ||
|
20
|
20
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
21
|
21
4WN-83975-00-00 Switch, Handle 2 |
4WN-83975-00-00 |
US $74.16 |
||
|
22
|
22
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
23
|
23
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
