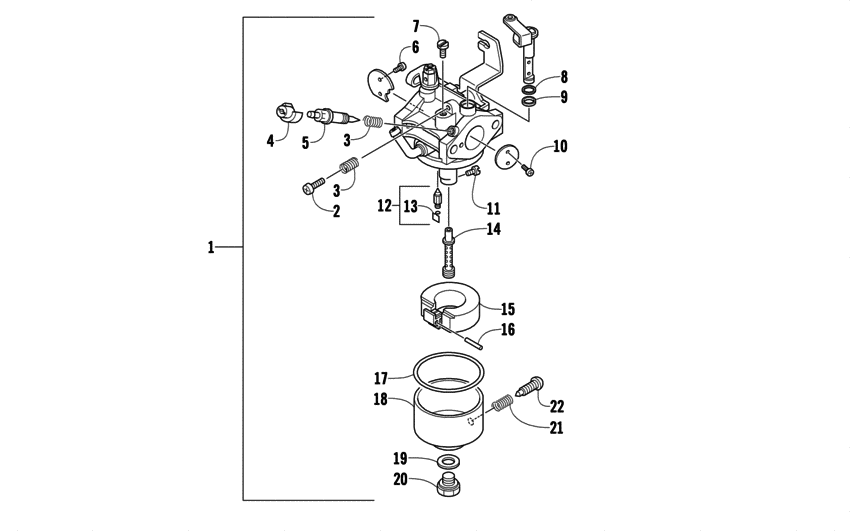

Carburetor assembly Diagram Arctic Cat 120 SNO PRO 120 Sno Pro
- Model code
- S2010ACAAAUSG
- Engine Capacity
- 123
- Year
- 2010
- Commercial Name
- 120 Sno Pro
- Sales region
- General
- Colour
- Green
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- 120 Sno Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3020-023 Carburetor assemblyinc. 2-22 ; |
3020-023 |
US $347.37 |
||
| replacement | |||||
|
1
|
1
3020-626 CARBURETORinc. 2-22 ; |
3020-626 |
US $470.28 |
||
|
2
|
2
3020-001 ScrewThrottle stop |
3020-001 |
US $6.59 |
||
|
3
|
3
3020-005 Spring |
3020-005 |
US $6.88 |
||
|
4
|
4
3020-086 CapAdjuster screw |
3020-086 |
US $15.39 |
||
|
5
|
5
3020-088 Adjuster screwFuel idle |
3020-088 |
US $21.03 |
||
|
6
|
6
3020-091 ScrewMachine |
3020-091 |
US $4.33 |
||
|
7
|
7
3020-131 Pilot jet37.5 ; |
3020-131 |
US $18.20 |
||
|
8
|
8
3020-003 Washer |
3020-003 |
US $1.68 |
||
|
9
|
9
3020-004 Washer |
3020-004 |
US $5.20 |
||
|
10
|
10
3020-090 ScrewMachine |
3020-090 |
US $3.92 |
||
|
11
|
11
3020-130 Main jet77.5 ; |
3020-130 |
US $33.69 |
||
|
12
|
12
3020-084 Needle jetAssembly inc. 13 ; |
3020-084 |
US $64.45 |
||
|
13
|
13
3020-080 ClipRetaining |
3020-080 |
US $18.20 |
||
|
14
|
14
3020-089 Nozzle |
3020-089 |
US $69.93 |
||
|
15
|
15
3020-085 Float |
3020-085 |
US $73.63 |
||
|
16
|
16
3020-002 PinFloat |
3020-002 |
US $16.80 |
||
|
17
|
17
3020-082 GasketFloat chamber |
3020-082 |
US $21.66 |
||
|
18
|
18
3020-081 ChamberFloat |
3020-081 |
US $173.29 |
||
|
19
|
19
3020-083 Washer |
3020-083 |
US $13.99 |
||
|
20
|
20
3020-087 PlugDrain |
3020-087 |
US $15.39 |
||
|
21
|
21
3020-005 Spring |
3020-005 |
US $6.88 |
||
|
22
|
22
3020-079 ScrewMachine |
3020-079 |
US $21.03 |
||
