Engine And Related Parts Diagram Arctic Cat 120 SNO PRO 120 Sno Pro

Model code
S2010ACAAAUSG
Engine Capacity
123
Year
2010
Commercial Name
120 Sno Pro
Sales region
General
Colour
Green
Stroke (2-stroke or 4-stroke)
4 stroke
Model
120 Sno Pro

Difficulties in parts search?

Parts list

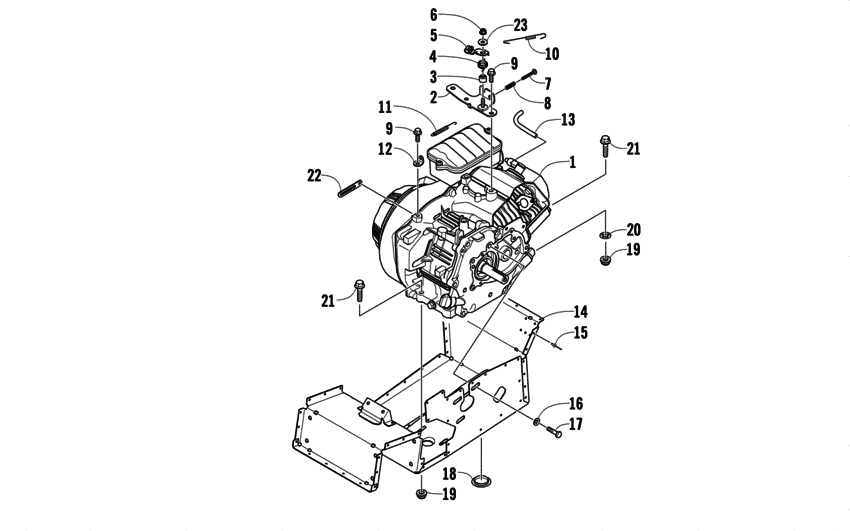

Engine And Related Parts

Difficulties in parts search?

Engine And Related Parts
Description OEM Part # Price
1
1

0662-560

Engine

70cl1-030

0662-560

US $1,522.66

2
2

2670-116

Bracket

Throttle cable; mounting

2670-116

US $49.08

3
3

2670-119

Spacer

2670-119

US $12.60

4
4

2670-134

Spring

2670-134

US $6.46

5
5

2670-115

Lever

Throttle cable

2670-115

US $30.86

6
6

1623-868

Nut

Lock

1623-868

US $3.70

replacement
6
6

8047-366

Nut

Lock

8047-366

US $5.80

7
7

8017-405

Screw

Machine

8017-405

US $4.80

8
8

2670-133

Spring

2670-133

US $9.77

9
9

8408-816

Screw

Cap

8408-816

US $4.40

10
10

2670-193

Spring

2670-193

US $13.99

11
11

2670-127

Spring

2670-127

US $13.99

12
12

4606-770

Tab

Exhaust pipe; mounting

4606-770

US $9.77

13
13

0610-855

Hose

5 ft; breather

0610-855

US $11.16

14
14

3706-775

Front end

3706-775

US $373.92

15
15

8060-504

Rivet

8060-504

US $8.60

16
16

1623-874

Washer

1623-874

US $11.80

replacement
16
16

8050-247

Washer

8050-247

US $8.80

17
17

1623-550

Screw

Cap

1623-550

US $17.60

18
18

0623-822

Plug

0623-822

US $5.43

19
19

1623-869

Nut

Lock

1623-869

US $5.90

replacement
19
19

8047-426

Nut

Lock

8047-426

US $8.80

20
20

1623-355

Nut

Push

1623-355

US $21.78

21
21

1623-863

Screw

Cap

1623-863

US $5.64

replacement
21
21

8020-134

Screw

Cap

8020-134

US $10.40

22
22

3002-964

Clamp

Wire

3002-964

US $11.48

replacement
22
22

1623-984

Clamp,wire - 76.14mm lg w/6.25 hole

1623-984

US $17.70

23
23

8050-222

Washer

8050-222

US $17.60
