Recoil Starter And Air Shroud Assembly Diagram Arctic Cat 120 SNO PRO 120 Sno Pro

Model code
S2010ACAAAUSG
Engine Capacity
123
Year
2010
Commercial Name
120 Sno Pro
Sales region
General
Colour
Green
Stroke (2-stroke or 4-stroke)
4 stroke
Model
120 Sno Pro

Difficulties in parts search?

Parts list
Recoil Starter And Air Shroud Assembly

Difficulties in parts search?

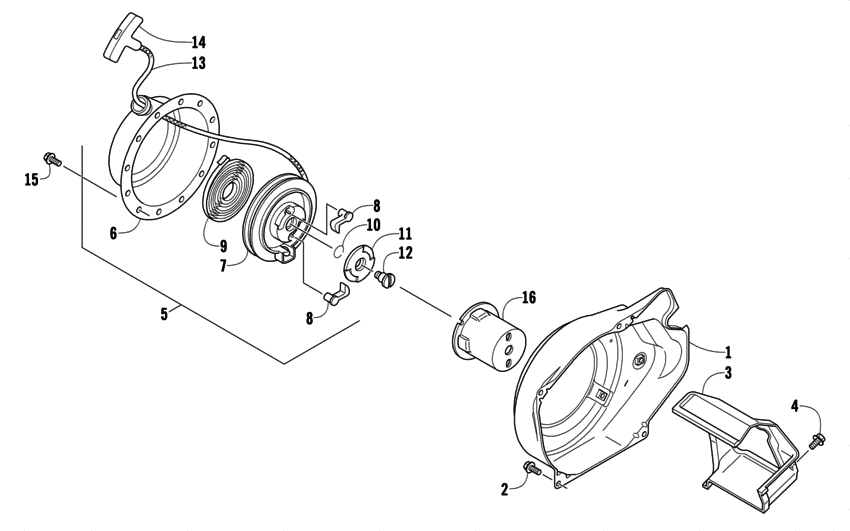

Recoil Starter And Air Shroud Assembly
Description OEM Part # Price
1
1

3020-051

Cowling

Ventilation

3020-051

US $70.91

2
2

3020-120

Screw

Cap

3020-120

US $3.22

3
3

3020-052

Shroud

Air

3020-052

US $30.62

4
4

3020-121

Screw

Cap

3020-121

US $3.22

5
5
3020-064
Starter

inc. 6-14 ;

3020-064

6
6

3020-065

Housing

Recoil

3020-065

US $80.48

7
7

3020-067

Reel

3020-067

US $44.99

8
8

3020-071

Arm

Ratchet

3020-071

US $8.38

9
9

3020-066

Spring

Spiral

3020-066

US $33.43

10
10

3020-068

Spring

Friction

3020-068

US $2.66

11
11

3020-069

Plate

Drive

3020-069

US $12.60

12
12

3020-074

Screw

Shoulder

3020-074

US $13.99

13
13

3020-072

Rope

Starter

3020-072

US $30.62

14
14

3020-073

Grip

Rope

3020-073

US $21.03

15
15

3020-119

Screw

Cap

3020-119

US $3.22

16
16

3020-070

Pulley

Starter

3020-070

US $21.03
