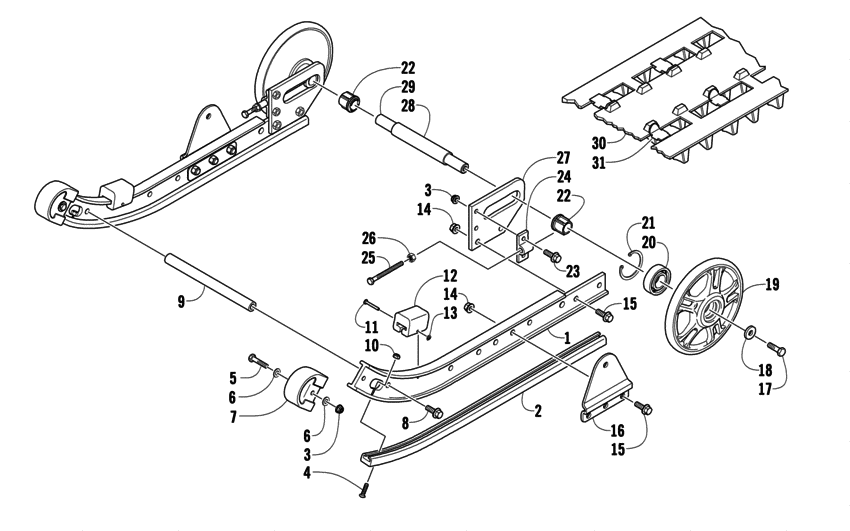

Slide Rail, Idler Wheels, And Track Assembly Diagram Arctic Cat 120 SNO PRO 120 Sno Pro
- Model code
- S2010ACAAAUSG
- Engine Capacity
- 123
- Year
- 2010
- Commercial Name
- 120 Sno Pro
- Sales region
- General
- Colour
- Green
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- 120 Sno Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
1704-883 Complete skid frame assembly |
1704-883 |
US $911.18 |
||
|
1
|
1
1604-705 RailFormed |
1604-705 |
US $73.63 |
||
|
2
|
2
1604-568 WearstripBlack; slide rail |
1604-568 |
US $21.66 |
||
|
3
|
3
1623-868 NutLock |
1623-868 |
US $3.70 |
||
| replacement | |||||
|
3
|
3
8047-366 NutLock |
8047-366 |
US $5.80 |
||
|
4
|
4
0123-859 ScrewMachine |
0123-859 |
US $7.35 |
||
|
5
|
5
1623-852 ScrewCap |
1623-852 |
US $2.95 |
||
| replacement | |||||
|
5
|
5
8002-043 ScrewCap |
8002-043 |
US $8.80 |
||
|
6
|
6
1623-872 Washer |
1623-872 |
US $2.20 |
||
| replacement | |||||
|
6
|
6
8050-217 Washer |
8050-217 |
US $3 |
||
|
7
|
7
0604-231 Nose pieceRail |
0604-231 |
US $13.99 |
||
|
8
|
8
1623-566 ScrewCap |
1623-566 |
US $11.05 |
||
|
9
|
9
1604-566 AxleCross-brace |
1604-566 |
US $21.03 |
||
|
10
|
10
1623-865 NutLock |
1623-865 |
US $5.20 |
||
| replacement | |||||
|
10
|
10
8041-366 NutLock |
8041-366 |
US $4.30 |
||
|
11
|
11
0123-767 RivetSolid |
0123-767 |
US $2.76 |
||
|
12
|
12
0104-631 PadRubber; shock |
0104-631 |
from US $4.80 |
||
|
13
|
13
0423-090 NutPress |
0423-090 |
US $1.18 |
||
|
14
|
14
1623-869 NutLock |
1623-869 |
US $5.90 |
||
| replacement | |||||
|
14
|
14
8047-426 NutLock |
8047-426 |
US $8.80 |
||
|
15
|
15
1623-862 ScrewCap |
1623-862 |
US $7.60 |
||
| replacement | |||||
|
15
|
15
8020-131 ScrewCap |
8020-131 |
US $22.10 |
||
|
16
|
16
0704-896 BracketArm; support |
0704-896 |
US $19.65 |
||
|
17
|
17
1623-427 ScrewCap |
1623-427 |
US $13.30 |
||
|
18
|
18
0623-664 Washer |
0623-664 |
US $8.10 |
||
|
19
|
19
3604-042 WheelRear; idler inc. 20-21 ; |
3604-042 |
US $49.56 |
||
|
20
|
20
3604-033 BearingWheel |
3604-033 |
US $22.45 |
||
|
21
|
21
0623-946 RingRetaining |
0623-946 |
from US $2.82 |
||
|
22
|
22
3604-503 BushingAdjuster |
3604-503 |
US $7.49 |
||
|
23
|
23
1623-861 ScrewCap |
1623-861 |
US $7.24 |
||
| replacement | |||||
|
23
|
23
8020-040 ScrewCap |
8020-040 |
US $26.60 |
||
|
24
|
24
0604-206 AdjusterTrack |
0604-206 |
US $25.42 |
||
|
25
|
25
0124-310 ScrewCap |
0124-310 |
US $13 |
||
|
26
|
26
1623-867 Nut |
1623-867 |
US $4.80 |
||
|
27
|
27
3604-543 HousingRear; axle |
3604-543 |
US $32.26 |
||
|
28
|
28
3604-541 Spacer |
3604-541 |
US $22.44 |
||
|
29
|
29
3604-542 AxleRear |
3604-542 |
US $36.80 |
||
|
30
|
30
1602-015 Track assemblyInc. 20 inc. 31 ; |
1602-015 |
US $541.64 |
||
|
31
|
31
1602-079 ClipGuide |
1602-079 |
US $24.02 |
||
