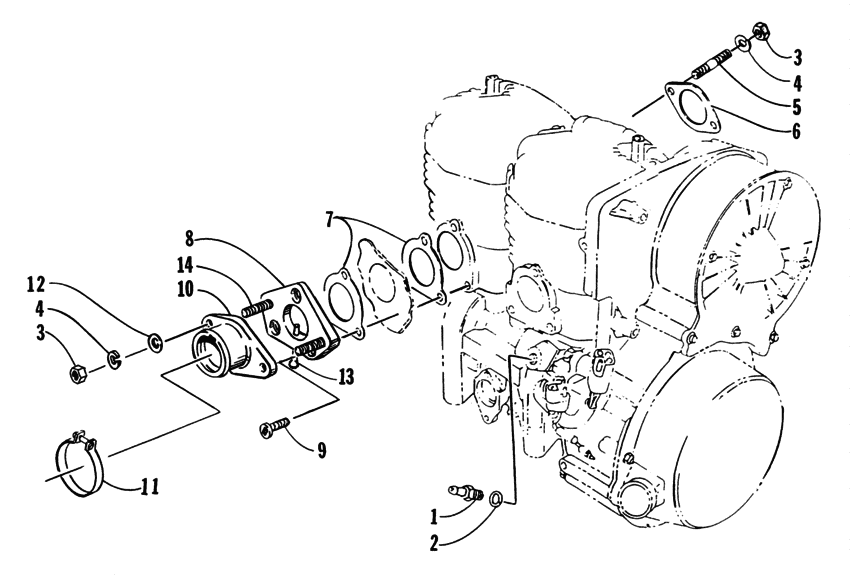

Intake assembly Diagram Arctic Cat BEARCAT Bearcat 440
- Model code
- 96BCB-1996
- Engine Capacity
- 431
- Year
- 1996
- Commercial Name
- Bearcat 440
- Sales region
- General
- Power
- 42 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 440
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3003-229 Union |
3003-229 |
US $19.72 |
||
| replacement | |||||
|
1
|
1
3002-040 Union |
3002-040 |
US $9.86 |
||
|
2
|
2
3002-276 Gasket |
3002-276 |
US $5.50 |
||
|
3
|
3
3004-364 Nut |
3004-364 |
US $12.75 |
||
| replacement | |||||
|
3
|
3
3007-416 Nut |
3007-416 |
US $5.18 |
||
|
4
|
4
3004-280 WasherLock |
3004-280 |
US $17.20 |
||
|
5
|
5
3004-301 StudLeft; bolt |
3004-301 |
US $22.85 |
||
| replacement | |||||
|
5
|
5
3007-419 BoltStud |
3007-419 |
US $6.18 |
||
|
6
|
6
3003-503 GasketExhaust |
3003-503 |
US $30.66 |
||
|
7
|
7
3003-502 GasketIntake |
3003-502 |
US $17.83 |
||
| replacement | |||||
|
7
|
7
3005-952 GasketIntake manifold |
3005-952 |
US $17.83 |
||
|
8
|
8
0670-190 PlateAdaptor |
0670-190 |
US $55.78 |
||
|
9
|
9
3004-576 ScrewCap |
3004-576 |
US $19.60 |
||
| replacement | |||||
|
9
|
9
3007-674 Bolt-6x20 |
3007-674 |
US $5.33 |
||
|
10
|
10
0115-544 Flange |
0115-544 |
US $65.71 |
||
|
11
|
11
0109-709 Clamp |
0109-709 |
US $50.66 |
||
|
12
|
12
3003-079 Washer |
3003-079 |
US $6.44 |
||
| replacement | |||||
|
12
|
12
3423-204 WasherNo. 1; clutch |
3423-204 |
US $1.61 |
||
|
13
|
13
3003-597 NippleOil injection |
3003-597 |
US $14.69 |
||
