Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1718-461 Hood w/decals inc. 2-16 ;	1718-461	US $1,215.84
2	2 1718-460 Hood w/o decals inc. 3-12 ;	1718-460	US $1,070.11
3	3 0717-148 Foam Right - upper; hood	0717-148	US $15.39
3	3 0717-149 Foam Left - upper; hood	0717-149	US $13.58
4	4 0717-165 Foam Upper left; hood	0717-165	US $6.38
4	4 0717-164 Foam Upper right; hood	0717-164	US $5.83
5	5 0717-138 Foam Center; hood	0717-138	US $5.44
6	6 0717-140 Foam Rear - right; hood	0717-140	US $12.34
6	6 0717-141 Foam Rear - left; hood	0717-141	US $11.10
7	7 3611-485 Decal Hood; warning	3611-485	US $29.86
8	8 3611-970 Decal Engine/battery/fuel; caution	3611-970	US $38.39
9	9 3611-580 Decal Reverse	3611-580	US $21.13
10	10 1606-939 Foil Left; hood	1606-939	US $69.75
10	10 1606-938 Foil Right; hood	1606-938	US $55.91
11	11 1606-720 Hinge Black; hood	1606-720	from US $81.60
12	12 0623-797 Screw Self-tapping	0623-797	US $8.32
	replacement
12	12 2623-164 Screw, Self-Tapping	2623-164	US $7.60
13	13 5611-409 Decal	5611-409	US $17.30
14	14 5611-538 Decal Upper right; hood	5611-538	US $85.56
14	14 5611-539 Decal Upper left; hood	5611-539	US $81.83
15	15 5611-403 Decal Lower left; hood	5611-403	US $93.44
15	15 5611-402 Decal Lower right; hood	5611-402	US $104.17
16	16 5611-535 Decal Crest; hood	5611-535	US $43.62
17	17 0616-032 O-ring Windshield	0616-032	US $14.40
18	18 0124-054 Snap cap w/washer	0124-054	US $16.50
19	19 0623-902 Screw Machine	0623-902	US $6.70
20	20 0623-845 Nut Expansion	0623-845	US $16.65
21	21 3606-180 Windshield	3606-180	—
	replacement
21	21 W40-1180 W/S Arctic Cat Smk H -AC	W40-1180	—
22	22 1606-067 Strap Holddown	1606-067	US $57.15
23	23 0623-805 Clip Hairpin	0623-805	US $1.20
24	24 0623-057 Screw	0623-057	—
25	25 2606-247 Cable Hood	2606-247	US $13.99
	replacement
25	25 1606-158 Cable Hood	1606-158	US $13.99
26	26 1623-016 Screw Machine	1623-016	US $62.52
27	27 2606-889 Screen Left; hood	2606-889	US $61.36
28	28 2606-890 Screen Right; hood	2606-890	US $114.59
29	29 2606-891 Screen Upper left; hood	2606-891	US $114.59
30	30 0123-394 Clip	0123-394	US $15
31	31 8060-508 Rivet	8060-508	US $14.40
32	32 2606-370 Duct Air-out	2606-370	US $58.63
33	33 0617-427 Foam Top; air-out duct	0617-427	US $13.99
34	34 0617-428 Foam Side; air-out duct	0617-428	US $9.77
35	35 0617-425 Foam Bottom; air-out duct	0617-425	US $23.85
36	36 0123-802 Washer	0123-802	US $1.16

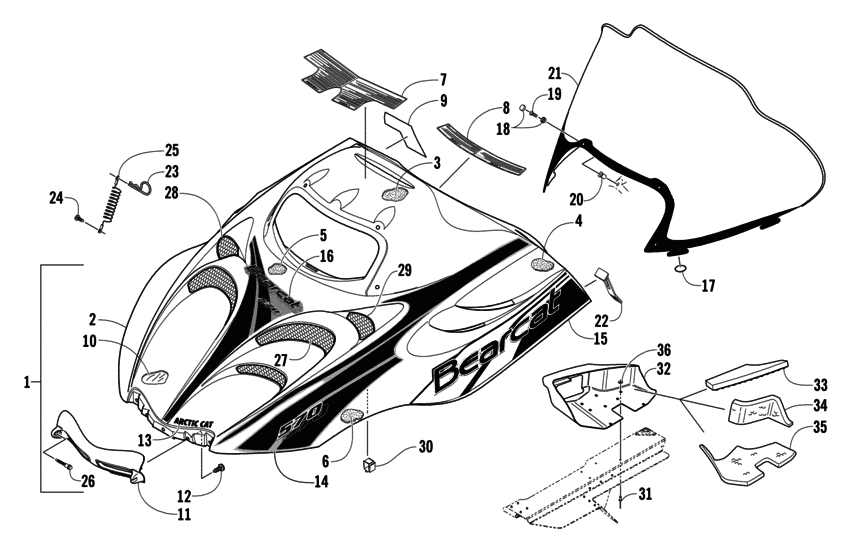

Hood And Windshield Assembly Diagram Arctic Cat BEARCAT Bearcat 570 General 10994045-697814

Hood And Windshield Assembly Diagram Arctic Cat BEARCAT Bearcat 570 General 10994045-697814
