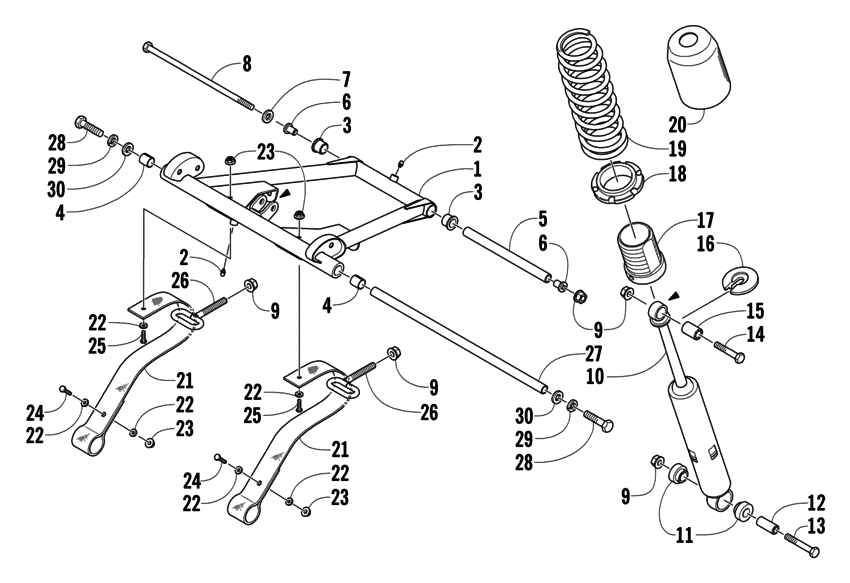

Rear Suspension Front Arm Assembly Diagram Arctic Cat BEARCAT Bearcat 570
- Model code
- S2004BCDLTUSS
- Engine Capacity
- 565
- Year
- 2004
- Commercial Name
- Bearcat 570
- Sales region
- General
- Power
- 61,9 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 570
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0704-628 ArmFront suspension inc. 2-4 ; |
0704-628 |
US $228.25 |
||
|
2
|
2
0623-922 FittingGrease |
0623-922 |
US $21.75 |
||
|
3
|
3
0104-386 Bushing |
0104-386 |
US $39.20 |
||
|
4
|
4
0603-083 Bearing |
0603-083 |
US $37.24 |
||
|
5
|
5
0604-194 TubeAxle |
0604-194 |
US $14.82 |
||
|
6
|
6
0603-061 Axle |
0603-061 |
US $3.96 |
||
|
7
|
7
0623-664 Washer |
0623-664 |
US $8.10 |
||
|
8
|
8
1623-037 ScrewCap |
1623-037 |
US $13.89 |
||
|
9
|
9
8048-486 NutLock |
8048-486 |
US $13.40 |
||
|
10
|
10
1604-369 Shock absorberFront arm |
1604-369 |
US $243.88 |
||
|
11
|
11
1604-384 BushingEyelet |
1604-384 |
US $7.40 |
||
|
12
|
12
1604-329 AxleShock pivot |
1604-329 |
US $71.86 |
||
|
13
|
13
8020-228 ScrewCap |
8020-228 |
US $5.10 |
||
|
14
|
14
8020-226
Screw
|
8020-226 |
— | ||
|
15
|
15
0603-030 AxleShock upper |
0603-030 |
US $2.52 |
||
|
16
|
16
1603-889 RetainerSpring |
1603-889 |
from US $13.42 |
||
|
17
|
17
0603-147 SleeveThreaded; shock |
0603-147 |
US $95.13 |
||
|
18
|
18
0603-259 NutRetainer |
0603-259 |
US $9.77 |
||
|
19
|
19
0603-860 Spring |
0603-860 |
US $107.36 |
||
|
20
|
20
0604-590 CoverSuspension spring |
0604-590 |
US $25.51 |
||
|
21
|
21
1604-865 StrapLimiter |
1604-865 |
US $119.58 |
||
|
22
|
22
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
23
|
23
8048-366 NutLock |
8048-366 |
US $8.80 |
||
|
24
|
24
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
25
|
25
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
26
|
26
0704-256 AdjusterFront arm |
0704-256 |
US $19.83 |
||
|
27
|
27
0114-163 AxleBackrest |
0114-163 |
US $52.04 |
||
|
28
|
28
8002-224 ScrewCap |
8002-224 |
US $5.43 |
||
|
29
|
29
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
30
|
30
0623-044 WasherHardened; flat |
0623-044 |
US $16.55 |
