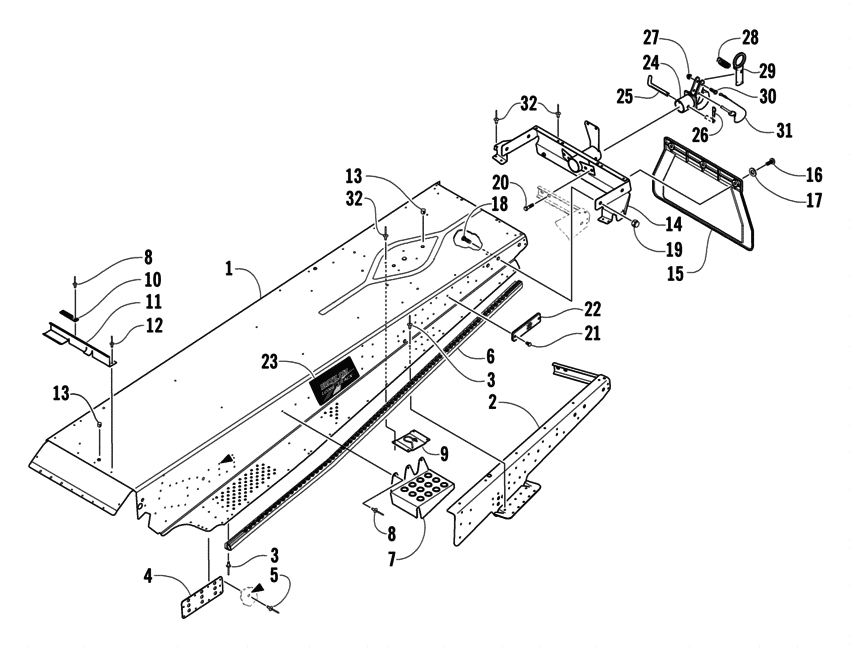

Tunnel, rear bumper, and hitch assembly Diagram Arctic Cat BEARCAT Bearcat 570
- Model code
- S2004BCDLTUSS
- Engine Capacity
- 565
- Year
- 2004
- Commercial Name
- Bearcat 570
- Sales region
- General
- Power
- 61,9 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 570
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1718-589 Tunnel assemblyinc. 2-3 ; |
1718-589 |
US $1,137.62 |
||
|
2
|
2
0707-792 BracketRight; suspension mounting |
0707-792 |
US $100.94 |
||
|
2
|
2
0707-793 BracketLeft; suspension mounting |
0707-793 |
US $100.92 |
||
|
3
|
3
8060-506 RivetOptional; |
8060-506 |
US $4.30 |
||
|
3
|
3
0123-418 Rivet |
0123-418 |
US $10.60 |
||
|
4
|
4
2706-111 PlateFront; suspension mounting |
2706-111 |
US $14.82 |
||
|
5
|
5
0623-072 Rivet |
0623-072 |
US $1.10 |
||
|
6
|
6
2706-540 RollRight; tunnel |
2706-540 |
US $67.88 |
||
|
6
|
6
2706-541 RollLeft; tunnel |
2706-541 |
US $71.98 |
||
|
7
|
7
2706-386 FootrestRight; rear |
2706-386 |
US $124.99 |
||
|
7
|
7
2706-387 FootrestLeft; rear |
2706-387 |
US $101.88 |
||
|
8
|
8
8060-506 Rivet |
8060-506 |
US $4.30 |
||
|
9
|
9
2706-534 PlateSeat latch; catch |
2706-534 |
US $17.41 |
||
|
10
|
10
3002-964 ClampWire |
3002-964 |
US $11.48 |
||
| replacement | |||||
|
10
|
10
1623-984 Clamp,wire - 76.14mm lg w/6.25 hole |
1623-984 |
US $17.70 |
||
|
11
|
11
0707-704 BracketMain harness protector |
0707-704 |
US $16.06 |
||
|
12
|
12
0623-166 Rivet |
0623-166 |
US $15 |
||
|
13
|
13
0623-562 PlugHole |
0623-562 |
US $8.32 |
||
|
14
|
14
2706-371 BumperRear |
2706-371 |
US $225.55 |
||
|
15
|
15
0616-613
Snowflap
|
0616-613 |
— | ||
|
16
|
16
8017-580 ScrewCap |
8017-580 |
US $28.80 |
||
|
17
|
17
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
18
|
18
8020-220 ScrewCap |
8020-220 |
US $8.25 |
||
|
19
|
19
0623-426 NutLock |
0623-426 |
US $12 |
||
|
20
|
20
8020-039 ScrewCap |
8020-039 |
US $7.50 |
||
|
21
|
21
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
22
|
22
0606-029 Red reflector |
0606-029 |
US $58.48 |
||
|
23
|
23
5611-536 DecalRight; tunnel |
5611-536 |
US $58.26 |
||
|
23
|
23
5611-537 DecalLeft; tunnel |
5611-537 |
US $58.26 |
||
|
24
|
24
2706-594 HitchPintle |
2706-594 |
US $184.41 |
||
| replacement | |||||
|
24
|
24
2706-853 HitchPintle |
2706-853 |
US $184.41 |
||
|
25
|
25
2606-933 PinReceiver |
2606-933 |
US $12.34 |
||
|
26
|
26
0605-283 KeyCotter |
0605-283 |
US $14.25 |
||
|
27
|
27
8048-366 NutLock |
8048-366 |
US $8.80 |
||
|
28
|
28
0602-651 SpringReturn |
0602-651 |
US $5.75 |
||
|
29
|
29
2706-503 LatchPintle hitch |
2706-503 |
US $52.32 |
||
|
30
|
30
8020-045 ScrewCap |
8020-045 |
US $2.66 |
||
|
31
|
31
2606-913 PinLock |
2606-913 |
US $14.91 |
||
| replacement | |||||
|
31
|
31
3606-903 PinLock |
3606-903 |
US $14.91 |
||
|
32
|
32
8060-504 Rivet |
8060-504 |
US $8.60 |
||
