Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1712-472 Chamber Assembly, expansion Assembly; expansion inc. 2-7 ;	1712-472	US $763.38
2	2 1712-471 Chamber, Expansion Expansion	1712-471	US $397.14
3	3 2612-137 Cover Upper	2612-137	US $103.67
4	4 2612-345 Cover Lower; expansion chamber	2612-345	US $95.48
5	5 2612-354 Packing Expansion chamber	2612-354	US $22.44
6	6 0624-541 Tie 25 ft; perforated band	0624-541	US $111.85
6	6 0624-552 Tie 5 ft; perforated band	0624-552	US $23.22
7	7 1612-178 Spring Extension	1612-178	US $4.90
8	8 2612-399 Spring Extension	2612-399	US $6.79
9	9 1712-493 Manifold Exhaust	1712-493	US $176.01
10	10 0612-131 Gasket Exhaust joint	0612-131	from US $54.16
11	11 1712-424 Resonator	1712-424	US $599.62
12	12 8050-282 Washer	8050-282	from US $1.60
13	13 8408-850 Screw Cap	8408-850	US $3
14	14 1612-323 Gasket Tailpipe; exhaust	1612-323	from US $28.80
15	15 0412-215 Bushing Exhaust	0412-215	US $12.88
	replacement
15	15 0412-577 Bushing,muffler	0412-577	US $15.68
16	16 8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 Lock	8427-802	US $0.72
17	17 1612-873 Grommet	1612-873	US $7.88
18	18 8060-686 Rivet	8060-686	US $5.80
19	19 2612-024 Bracket Resonator; mounting	2612-024	US $12.60
20	20 2612-010 Shield Heat	2612-010	US $70.91
21	21 1623-437 Screw Cap	1623-437	US $2.79
22	22 8427-602 Nut	8427-602	US $1.45

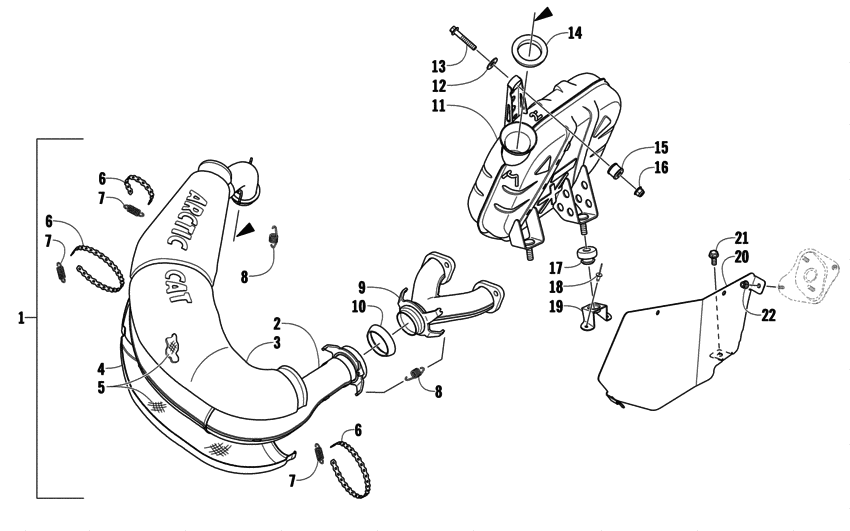

Exhaust assembly Diagram Arctic Cat BEARCAT Bearcat 570 XT Blue General 11022630-698559
