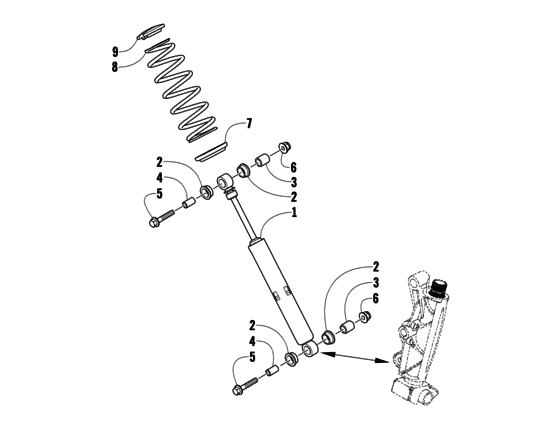

Shock absorber assembly Diagram Arctic Cat BEARCAT Bearcat 570 XT
- Model code
- 96BCD-1996
- Engine Capacity
- 565
- Year
- 2009
- Commercial Name
- Bearcat 570 XT
- Sales region
- General
- Colour
- Blue
- Power
- 61,9 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 570 XT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2603-799 ShockSki inc. 2-3 ; |
2603-799 |
US $210.86 |
||
|
2
|
2
1604-262 BushingShock |
1604-262 |
US $5.71 |
||
|
3
|
3
1604-397 SleeveShock eyelet |
1604-397 |
US $7.40 |
||
|
4
|
4
3604-109 SleeveShock |
3604-109 |
US $8.26 |
||
|
5
|
5
8408-055 ScrewCap |
8408-055 |
US $4.22 |
||
|
6
|
6
8427-002 NUT,HEX FLG-NYL LOCK M10X1.25Lock |
8427-002 |
from US $5.56 |
||
|
7
|
7
2603-719 NutSpring; retainer |
2603-719 |
US $15.28 |
||
|
8
|
8
2703-025 SpringCompression |
2703-025 |
US $75 |
||
|
9
|
9
1603-889 RetainerSpring |
1603-889 |
from US $13.42 |
