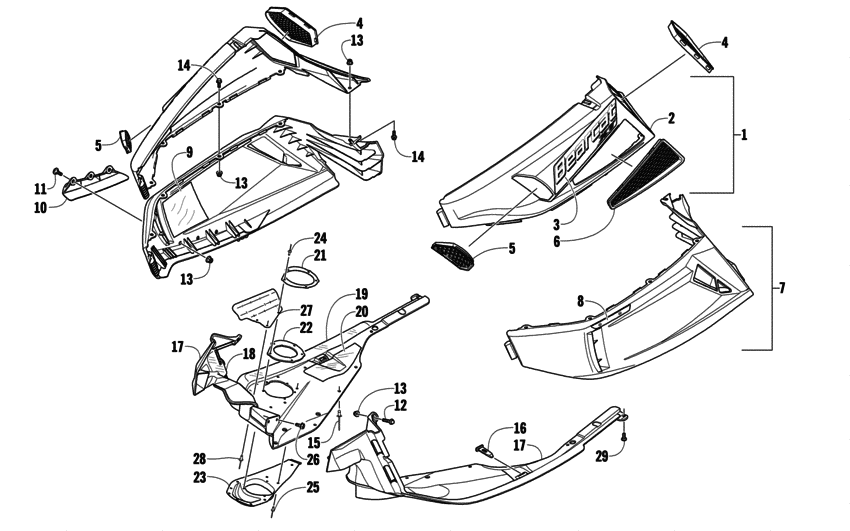

Skid Plate And Side Panel Assembly Diagram Arctic Cat BEARCAT Bearcat 570 XT
- Model code
- 96BCD-1996
- Engine Capacity
- 565
- Year
- 2009
- Commercial Name
- Bearcat 570 XT
- Sales region
- General
- Colour
- Blue
- Power
- 61,9 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 570 XT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2718-652 PanelUpper - right w/decals; side inc. 2-3 ; |
2718-652 |
US $287.80 |
||
|
1
|
1
2718-653 PanelUpper - left w/decals; side inc. 2-3 ; |
2718-653 |
US $287.80 |
||
|
2
|
2
4706-279 PanelUpper - left w/o decals; side |
4706-279 |
US $434.95 |
||
|
2
|
2
5606-614 PanelUpper - right w/o decals; side |
5606-614 |
US $478.45 |
||
|
3
|
3
8611-534 DecalRight; upper side panel |
8611-534 |
US $55.91 |
||
|
3
|
3
8611-535 DecalLeft; upper side panel |
8611-535 |
US $64.45 |
||
|
4
|
4
4606-650
Vent
|
4606-650 |
— | ||
|
4
|
4
4606-651 VentRear - left; upper side panel |
4606-651 |
US $46.46 |
||
|
5
|
5
4606-662 VentRight; upper side panel |
4606-662 |
from US $28.04 |
||
|
5
|
5
4606-663
Vent
|
4606-663 |
— | ||
|
6
|
6
5606-185 VentCenter - left; upper side panel |
5606-185 |
US $40.39 |
||
|
7
|
7
2718-532
Panel
inc. 8-9 ; |
2718-532 |
— | ||
|
7
|
7
2718-533 PanelLower - left; side inc. 8 ; |
2718-533 |
US $256.78 |
||
|
8
|
8
8611-181 DecalReflector |
8611-181 |
US $35.65 |
||
|
9
|
9
5606-548 FoilRight; protective |
5606-548 |
US $2.66 |
||
|
10
|
10
5606-404 DeflectorExhaust |
5606-404 |
US $17.70 |
||
|
11
|
11
0423-355 ScrewShoulder |
0423-355 |
US $5.36 |
||
|
12
|
12
8408-635 ScrewMachine |
8408-635 |
US $4.40 |
||
|
13
|
13
8427-602 Nut |
8427-602 |
US $1.45 |
||
|
14
|
14
8408-620 ScrewCap |
8408-620 |
US $7.24 |
||
| replacement | |||||
|
14
|
14
8476-620 ScrewCap |
8476-620 |
US $2.95 |
||
|
15
|
15
8061-708 Rivet |
8061-708 |
US $13.40 |
||
|
16
|
16
4606-926 StrapHold-down |
4606-926 |
US $6.05 |
||
|
17
|
17
3706-706
Plate
|
3706-706 |
— | ||
|
17
|
17
4706-073 PlateLeft; skid |
4706-073 |
US $48.63 |
||
|
18
|
18
4606-982 FoilRight; skid plate hinge |
4606-982 |
US $15.39 |
||
|
19
|
19
4606-798 FoilProtective |
4606-798 |
US $2.52 |
||
|
20
|
20
4606-797 FoilProtective |
4606-797 |
US $4.33 |
||
|
21
|
21
1712-348 PlateOutlet; exhaust |
1712-348 |
US $15.39 |
||
|
22
|
22
2612-287 SealOutlet; exhaust |
2612-287 |
US $16.80 |
||
|
23
|
23
1712-501 ShieldExhaust outlet; heat |
1712-501 |
US $32.26 |
||
|
24
|
24
8060-510 Rivet |
8060-510 |
US $10.60 |
||
|
25
|
25
0623-778 Rivet |
0623-778 |
US $15 |
||
|
26
|
26
0623-966 ScrewSelf-tapping |
0623-966 |
US $1.50 |
||
|
27
|
27
2612-268 ShieldHeat |
2612-268 |
US $22.44 |
||
|
28
|
28
8061-508 Rivet |
8061-508 |
US $19 |
||
|
29
|
29
0423-538 ScrewSelf-tapping |
0423-538 |
US $8.80 |
||
