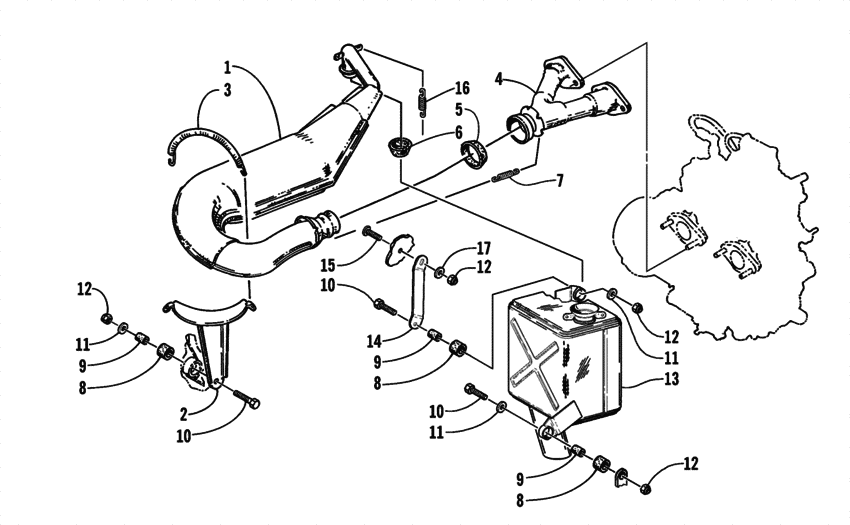

Exhaust assembly Diagram Arctic Cat BEARCAT Bearcat 550 Wide Track
- Model code
- S2000BCCWTOSL
- Engine Capacity
- 550
- Year
- 2000
- Commercial Name
- Bearcat 550 Wide Track
- Sales region
- General
- Colour
- Blue
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 550 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0712-379 ChamberExpansion |
0712-379 |
US $403.82 |
||
|
2
|
2
0712-156 BracketSupport |
0712-156 |
US $89.67 |
||
|
3
|
3
0612-013 SpringExpansion |
0612-013 |
US $21.03 |
||
|
4
|
4
0712-193
Manifold
|
0712-193 |
— | ||
|
5
|
5
0612-131 GasketExhaust joint |
0612-131 |
from US $54.16 |
||
|
6
|
6
0612-188 GasketExhaust |
0612-188 |
US $35.30 |
||
|
7
|
7
0123-321 SpringExtension |
0123-321 |
US $42.72 |
||
|
8
|
8
0612-107 Bushing |
0612-107 |
US $33.30 |
||
|
9
|
9
0612-108 Spacer |
0612-108 |
US $44.67 |
||
|
10
|
10
8002-044 ScrewCap |
8002-044 |
US $28.90 |
||
|
11
|
11
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
12
|
12
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
13
|
13
0712-381 Resonator |
0712-381 |
US $417.51 |
||
|
14
|
14
0612-479 BracketResonator; mounting |
0612-479 |
US $15.39 |
||
|
15
|
15
0623-597 ScrewCap |
0623-597 |
US $1.68 |
||
|
16
|
16
0612-471 Spring |
0612-471 |
US $40.26 |
||
|
17
|
17
0850-217
Washer
|
0850-217 |
— |
