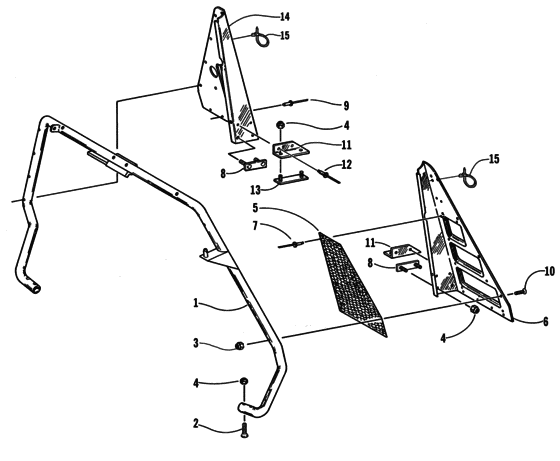

Steering Support Assembly Diagram Arctic Cat BEARCAT Bearcat 550 Wide Track
- Model code
- S2000BCCWTOSL
- Engine Capacity
- 550
- Year
- 2000
- Commercial Name
- Bearcat 550 Wide Track
- Sales region
- General
- Colour
- Blue
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 550 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0705-167 SupportSteering |
0705-167 |
US $134.55 |
||
|
2
|
2
0623-060 ScrewOval head |
0623-060 |
US $8.40 |
||
|
3
|
3
8040-246 NutLock |
8040-246 |
US $4.30 |
||
|
4
|
4
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
5
|
5
0616-283 Screen |
0616-283 |
US $19.65 |
||
|
6
|
6
0616-641 PlateLeft; backing vent |
0616-641 |
US $81.83 |
||
|
7
|
7
8061-426 Rivet |
8061-426 |
US $4.35 |
||
|
8
|
8
0705-042 PlateBacking |
0705-042 |
US $12.60 |
||
| replacement | |||||
|
8
|
8
1705-113 PlateBacking side-ptd blk |
1705-113 |
US $12.60 |
||
|
9
|
9
8060-484 Rivet |
8060-484 |
US $5.80 |
||
|
10
|
10
0623-227 ScrewMachine |
0623-227 |
US $6 |
||
|
11
|
11
0605-120 BraceR.h.; steering support |
0605-120 |
US $16.80 |
||
|
11
|
11
0605-121 BraceL.h.; steering support |
0605-121 |
US $14.82 |
||
|
12
|
12
0623-166 Rivet |
0623-166 |
US $15 |
||
|
13
|
13
0705-043 PlateBacking |
0705-043 |
US $7.42 |
||
| replacement | |||||
|
13
|
13
1705-114 PlateBacking |
1705-114 |
US $7.42 |
||
|
14
|
14
0616-940 PlateRight; backing vent |
0616-940 |
US $97.81 |
||
|
15
|
15
0423-075 ClipSnap-in |
0423-075 |
US $7.50 |
||
