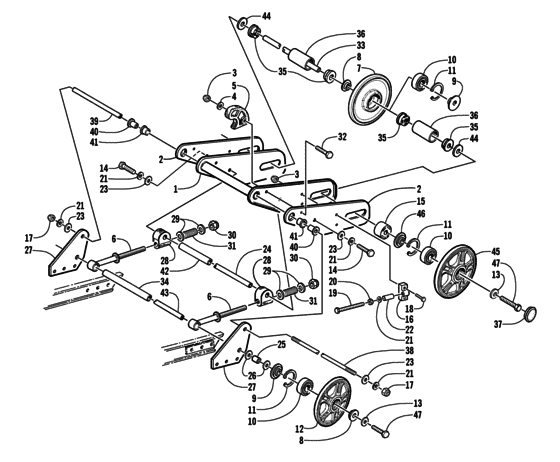

Articulating Skid Frame Assembly Diagram Arctic Cat BEARCAT Bearcat 550 Wide Track
- Model code
- S2002BCCWTOSL
- Engine Capacity
- 550
- Year
- 2002
- Commercial Name
- Bearcat 550 Wide Track
- Sales region
- General
- Colour
- Blue
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 550 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0704-288 ArmW/bearing; swing inc. 41 ; |
0704-288 |
US $80.99 |
||
|
2
|
2
1604-004 BracketRear axle; mounting |
1604-004 |
US $64.45 |
||
|
3
|
3
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
4
|
4
8050-217 Washer |
8050-217 |
US $3 |
||
|
5
|
5
0604-863 BumperTrack guide |
0604-863 |
US $29.45 |
||
|
6
|
6
0704-262
Bracket
|
0704-262 |
— | ||
|
7
|
7
1604-685 WheelIdler inc. 8-11 ; |
1604-685 |
US $97.91 |
||
|
8
|
8
1604-773 InsertOutside; wheel |
1604-773 |
US $18.72 |
||
|
9
|
9
1604-772 InsertInside; wheel |
1604-772 |
US $18.72 |
||
|
10
|
10
0107-598 Bearing |
0107-598 |
US $29.66 |
||
|
11
|
11
0123-798 RingRetaining |
0123-798 |
US $11.30 |
||
|
12
|
12
1604-693 WheelChrome; idler inc. 8-11 ; |
1604-693 |
US $88.13 |
||
|
13
|
13
0123-570 Washer |
0123-570 |
from US $6.40 |
||
|
14
|
14
8002-223 ScrewCap |
8002-223 |
US $54.70 |
||
|
15
|
15
0604-936 BushingAdjuster |
0604-936 |
US $10.16 |
||
|
16
|
16
0704-352 AdjusterTrack |
0704-352 |
US $22.94 |
||
|
17
|
17
0623-026 NutFlex lock |
0623-026 |
US $60.90 |
||
|
18
|
18
8002-042 ScrewCap |
8002-042 |
US $5.90 |
||
|
19
|
19
0623-123 ScrewCap |
0623-123 |
US $16.65 |
||
|
20
|
20
8042-486 Nut |
8042-486 |
US $44.20 |
||
|
21
|
21
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
22
|
22
0604-298 SpacerShock link |
0604-298 |
US $55.91 |
||
|
23
|
23
8050-277 Washer |
8050-277 |
US $10.75 |
||
|
24
|
24
0604-964 Axle |
0604-964 |
US $51.80 |
||
|
25
|
25
0604-901 AxleAuxiliary wheel; outer |
0604-901 |
US $22.24 |
||
|
26
|
26
0123-439 Washer |
0123-439 |
US $50.40 |
||
|
27
|
27
0604-830
Bracket
|
0604-830 |
— | ||
|
28
|
28
0604-839 BlockSlide |
0604-839 |
US $58.90 |
||
|
29
|
29
8050-342 Washer |
8050-342 |
US $10.65 |
||
|
30
|
30
8040-606 NutLock |
8040-606 |
US $7.50 |
||
|
31
|
31
0604-849 Spring |
0604-849 |
US $22.37 |
||
| replacement | |||||
|
31
|
31
1704-027 Spring |
1704-027 |
US $22.37 |
||
|
32
|
32
8002-045
Screw
|
8002-045 |
— | ||
|
33
|
33
1604-682 AxleRear wheel |
1604-682 |
US $86.45 |
||
|
34
|
34
0604-963 TubeAxle |
0604-963 |
US $43.62 |
||
|
35
|
35
0604-968 BushingSpacer |
0604-968 |
US $8.90 |
||
|
36
|
36
0604-965 SpacerCenter |
0604-965 |
US $47.08 |
||
|
37
|
37
0604-246 CapWheel |
0604-246 |
US $14.70 |
||
|
38
|
38
0623-587 BoltStud |
0623-587 |
US $30.95 |
||
|
39
|
39
0604-962 AxleSwing arm |
0604-962 |
US $36.80 |
||
|
40
|
40
0603-061 Axle |
0603-061 |
US $3.96 |
||
|
41
|
41
0104-386 Bushing |
0104-386 |
US $39.20 |
||
|
42
|
42
0604-966 SpacerArticulating frame |
0604-966 |
US $24.75 |
||
|
43
|
43
0604-952 AxleRear |
0604-952 |
US $137.79 |
||
|
44
|
44
0623-220 Washer |
0623-220 |
US $15.65 |
||
|
45
|
45
1604-694 WheelIdler inc. 10-11 and 46 ; |
1604-694 |
US $97.91 |
||
|
46
|
46
1604-774 InsertIdler wheel |
1604-774 |
US $11.72 |
||
|
47
|
47
8002-222
Screw
|
8002-222 |
— | ||
