Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0670-494 Tank Coolant	0670-494	US $58.26
2	2 0616-878 Spacer	0616-878	US $11.17
3	3 0616-930 Guard Coolant hose	0616-930	US $47.30
4	4 0610-016 Hose 25 ft	0610-016	US $123.18
4	4 0610-015 Hose 100 ft	0610-015	US $326.26
5	5 8050-222 Washer	8050-222	US $17.60
6	6 8051-217 Washer	8051-217	—
7	7 8002-044 Screw Cap	8002-044	US $28.90 ~~US $28.90~~
8	8 8060-706 Rivet	8060-706	US $5.80
9	9 8053-212 Washer Lock	8053-212	US $1.45
10	10 8002-042 Screw Cap	8002-042	US $5.90
11	11 0606-268 Cap	0606-268	US $22.94
12	12 8040-366 Nut Lock	8040-366	US $8.60
13	13 0623-736 Clamp Hose	0623-736	US $7.88
14	14 0610-296 Hose Right exchanger; coolant	0610-296	US $31.14
15	15 0610-325 Hose Coolant tank/engine	0610-325	US $43.57
16	16 0716-400 Exchanger Right; heat	0716-400	US $250.49
17	17 0716-401 Exchanger Left; heat	0716-401	US $224.29
18	18 0423-070 Clamp Hose	0423-070	US $3.72
19	19 0610-223 Hose Left exchanger/front; coolant	0610-223	US $49.78
20	20 0610-328 Hose Pump/front exchanger; coolant	0610-328	US $79.74
21	21 2611-758 Decal Fuel tank; fill level	2611-758	US $9.93
22	22 1606-269 Bracket Coolant tank; wire form	1606-269	US $9.93
23	23 0716-280 Exchanger Front; heat	0716-280	US $230.53
24	24 0623-184 Washer	0623-184	US $7.50
25	25 0623-540 Protector Hose	0623-540	US $12
26	26 8060-504 Rivet	8060-504	US $8.60
27	27 0610-228 Hose Rear; coolant	0610-228	US $44.79
28	28 0623-424 Clamp Hose	0623-424	US $15.39
29	29 0123-788 Tie Cable	0123-788	US $2.90

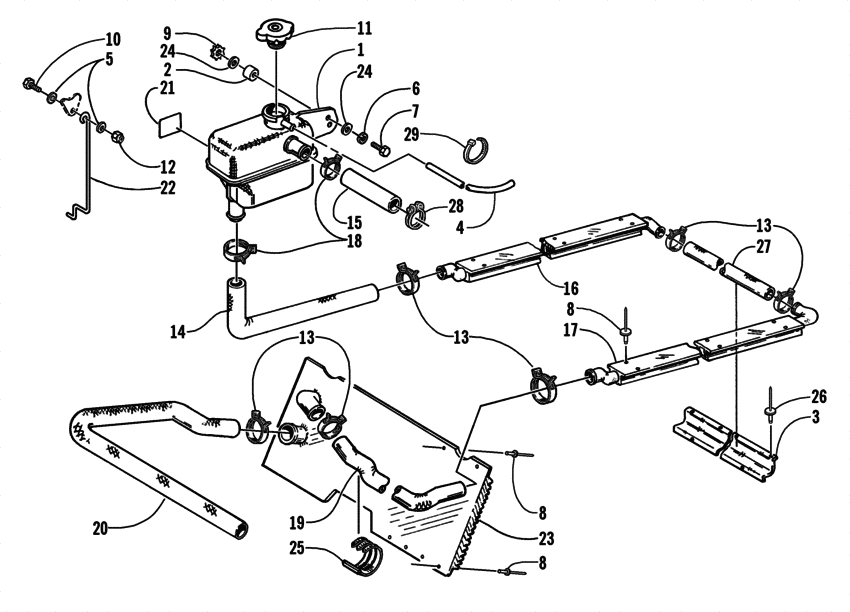

Cooling assembly Diagram Arctic Cat BEARCAT Bearcat 550 Wide Track Blue General 10982470-697579
