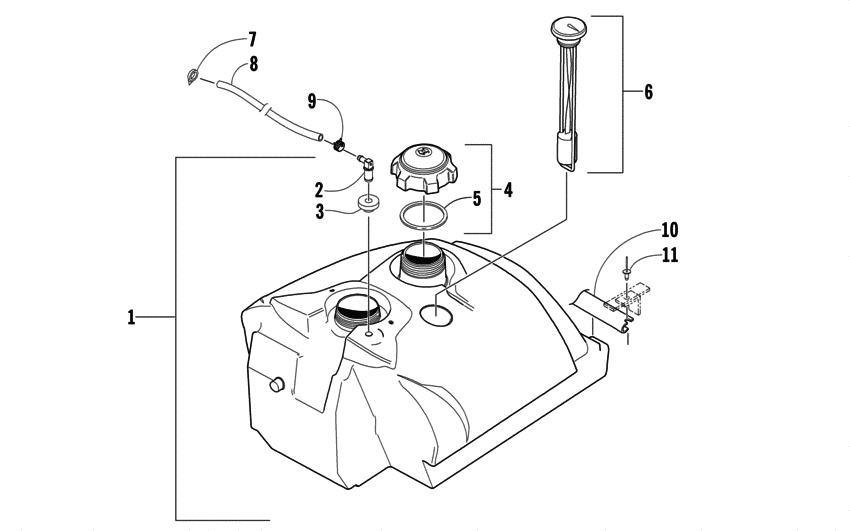

Gas Tank Assembly Diagram Arctic Cat BEARCAT Bearcat 660 Wide Track
- Model code
- S2005BCFWTUSS
- Engine Capacity
- 658
- Year
- 2005
- Commercial Name
- Bearcat 660 Wide Track
- Sales region
- General
- Power
- 53 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat 660 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0770-704 TankGas inc. 2-6 ; |
0770-704 |
US $351.44 |
||
|
2
|
2
1670-494 VentGas tank |
1670-494 |
US $3.70 |
||
|
3
|
3
1670-325 Grommet |
1670-325 |
US $3.84 |
||
|
4
|
4
1670-199 CapGas tank inc. 5 ; |
1670-199 |
US $42.33 |
||
| replacement | |||||
|
4
|
4
0470-541 CapGas tank inc. 5 ; |
0470-541 |
US $50.45 |
||
|
5
|
5
1670-228 SealGas cap |
1670-228 |
US $29.23 |
||
|
6
|
6
1670-524 GaugeAssembly w/gasket; fuel Press-Fit ; |
1670-524 |
US $139.14 |
||
|
7
|
7
0623-101 ClipRouting |
0623-101 |
US $42.15 |
||
|
8
|
8
6101-001 Hose100 ft; gasline |
6101-001 |
US $668.74 |
||
|
8
|
8
6101-009 Hose50 ft; vent |
6101-009 |
US $418.10 |
||
|
9
|
9
1623-233 ClampHose |
1623-233 |
US $4.40 |
||
|
10
|
10
2706-900 BracketGas tank; hold-down |
2706-900 |
US $21.16 |
||
|
11
|
11
8060-706 Rivet |
8060-706 |
US $5.80 |
||
