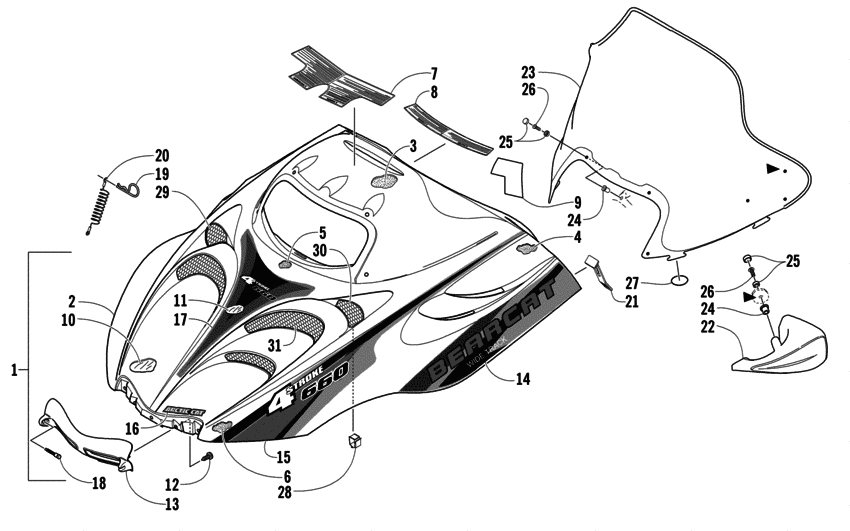

Hood And Windshield Assembly Diagram Arctic Cat BEARCAT Bearcat 660 Wide Track
- Model code
- S2005BCFWTUSS
- Engine Capacity
- 658
- Year
- 2005
- Commercial Name
- Bearcat 660 Wide Track
- Sales region
- General
- Power
- 53 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat 660 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1718-612 Hood w/decalsinc. 2-17 ; |
1718-612 |
US $1,391.02 |
||
|
2
|
2
1718-201 Hood w/o decalsinc. 3-13 ; |
1718-201 |
US $1,070.11 |
||
|
3
|
3
0717-166 FoamUpper middle - right; hood |
0717-166 |
US $9.92 |
||
|
4
|
4
0717-141 FoamRear - left; hood |
0717-141 |
US $11.10 |
||
|
4
|
4
0717-140 FoamRear - right; hood |
0717-140 |
US $12.34 |
||
|
5
|
5
0717-138 FoamCenter; hood |
0717-138 |
US $5.44 |
||
|
6
|
6
0717-146 FoamRight - rear; hood |
0717-146 |
US $12.41 |
||
|
6
|
6
0717-147 FoamFront - left; hood |
0717-147 |
US $13.58 |
||
|
7
|
7
3611-485 DecalHood; warning |
3611-485 |
US $29.86 |
||
|
8
|
8
3611-970 DecalEngine/battery/fuel; caution |
3611-970 |
US $38.39 |
||
|
9
|
9
3611-580 DecalReverse |
3611-580 |
US $21.13 |
||
|
10
|
10
1606-939 FoilLeft; hood |
1606-939 |
US $69.75 |
||
|
10
|
10
1606-938 FoilRight; hood |
1606-938 |
US $55.91 |
||
|
11
|
11
2606-935 FoilCenter; hood |
2606-935 |
US $18.20 |
||
|
12
|
12
0623-797 ScrewSelf-tapping |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
12
|
12
2623-164 Screw, Self-Tapping |
2623-164 |
US $7.60 |
||
|
13
|
13
1606-720 HingeBlack; hood |
1606-720 |
from US $81.60 |
||
|
14
|
14
6611-152 DecalLower right; hood |
6611-152 |
US $92.19 |
||
|
14
|
14
6611-153 DecalLower left; hood |
6611-153 |
US $94.70 |
||
|
15
|
15
6611-150 DecalUpper right; hood |
6611-150 |
US $82.20 |
||
|
15
|
15
6611-151 DecalUpper left; hood |
6611-151 |
US $82.20 |
||
|
16
|
16
5611-409 Decal |
5611-409 |
US $17.30 |
||
|
17
|
17
6611-156 DecalCrest; hood |
6611-156 |
US $37.15 |
||
|
18
|
18
1623-016 ScrewMachine |
1623-016 |
US $62.52 |
||
|
19
|
19
0623-805 ClipHairpin |
0623-805 |
US $1.20 |
||
|
20
|
20
3606-746 CableHood |
3606-746 |
US $12.38 |
||
|
21
|
21
1606-067 StrapHolddown |
1606-067 |
US $57.15 |
||
|
22
|
22
2639-477
Mirror
inc. six No. 24-26 ; |
2639-477 |
— | ||
|
23
|
23
2606-753 Windshield |
2606-753 |
US $239.65 |
||
|
24
|
24
0623-845 NutExpansion |
0623-845 |
US $16.65 |
||
|
25
|
25
0124-054 Snap cap w/washer |
0124-054 |
US $16.50 |
||
|
26
|
26
0623-902 ScrewMachine |
0623-902 |
US $6.70 |
||
|
27
|
27
0616-032 O-ringWindshield |
0616-032 |
US $14.40 |
||
|
28
|
28
0123-394 Clip |
0123-394 |
US $15 |
||
|
29
|
29
2606-890 ScreenRight; hood |
2606-890 |
US $114.59 |
||
|
30
|
30
2606-891 ScreenUpper left; hood |
2606-891 |
US $114.59 |
||
|
31
|
31
2606-889 ScreenLeft; hood |
2606-889 |
US $61.36 |
||
