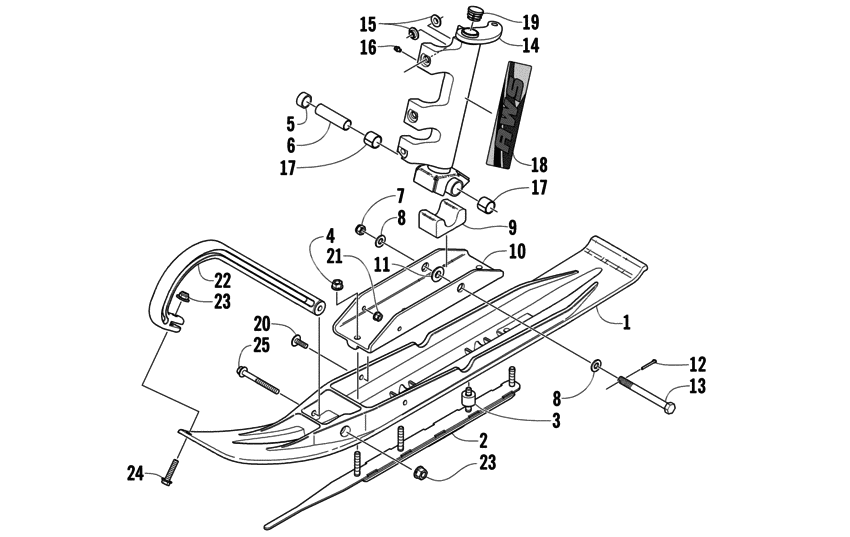

Ski And Spindle Assembly Diagram Arctic Cat BEARCAT Bearcat 660 Wide Track
- Model code
- S2005BCFWTUSS
- Engine Capacity
- 658
- Year
- 2005
- Commercial Name
- Bearcat 660 Wide Track
- Sales region
- General
- Power
- 53 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat 660 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1703-312 SkiPlastic |
1703-312 |
US $249.71 |
||
|
2
|
2
1703-212 Wearbar |
1703-212 |
US $200.92 |
||
| replacement | |||||
|
2
|
2
1703-871 SkagDual-duckbill-woody's |
1703-871 |
US $100.46 |
||
|
3
|
3
0603-616 SpacerSaddle |
0603-616 |
US $19.09 |
||
|
4
|
4
8047-486 NutLock |
8047-486 |
US $6.90 |
||
|
5
|
5
1603-908 SpacerSki-stance |
1603-908 |
US $15.86 |
||
|
6
|
6
0603-034 AxleSpindle |
0603-034 |
US $17.83 |
||
| replacement | |||||
|
6
|
6
2603-548 AxleSpindle |
2603-548 |
US $17.83 |
||
|
7
|
7
0123-296 NutLock |
0123-296 |
US $33.72 |
||
|
8
|
8
0623-728 Washer |
0623-728 |
US $20.30 |
||
|
9
|
9
1603-960
Damper
|
1603-960 |
— | ||
|
10
|
10
0703-269 SaddleInc. 17; ski inc. 11 ; |
0703-269 |
US $71.89 |
||
|
11
|
11
0603-621 InsertSki saddle |
0603-621 |
US $15.76 |
||
|
12
|
12
0123-458 PinCotter |
0123-458 |
US $5.80 |
||
|
13
|
13
0623-552 ScrewCap |
0623-552 |
US $13.42 |
||
|
14
|
14
1703-384 SpindleRight; steering inc. 15-17 ; |
1703-384 |
US $289.14 |
||
|
14
|
14
1703-385 SpindleLeft; steering inc. 15-17 ; |
1703-385 |
US $289.14 |
||
|
15
|
15
0603-647 InsertSpindle |
0603-647 |
US $11.64 |
||
|
16
|
16
1623-010 FittingGrease |
1623-010 |
US $12.80 |
||
|
17
|
17
0603-158 Bearing |
0603-158 |
US $31.04 |
||
|
18
|
18
6611-198 Decal |
6611-198 |
US $34.67 |
||
|
18
|
18
6611-199 Decal |
6611-199 |
US $34.67 |
||
|
19
|
19
0623-831 CapSpindle |
0623-831 |
US $4.36 |
||
|
20
|
20
8017-581 ScrewMachine |
8017-581 |
US $57 |
||
|
21
|
21
8048-366 NutLock |
8048-366 |
US $8.80 |
||
|
22
|
22
0603-624 HandlePlastic |
0603-624 |
US $61.16 |
||
|
23
|
23
8048-426 NutLock |
8048-426 |
US $16.50 |
||
|
24
|
24
8020-135 ScrewCap |
8020-135 |
US $1.22 |
||
|
25
|
25
8020-143 ScrewCap |
8020-143 |
US $98.90 |
||
