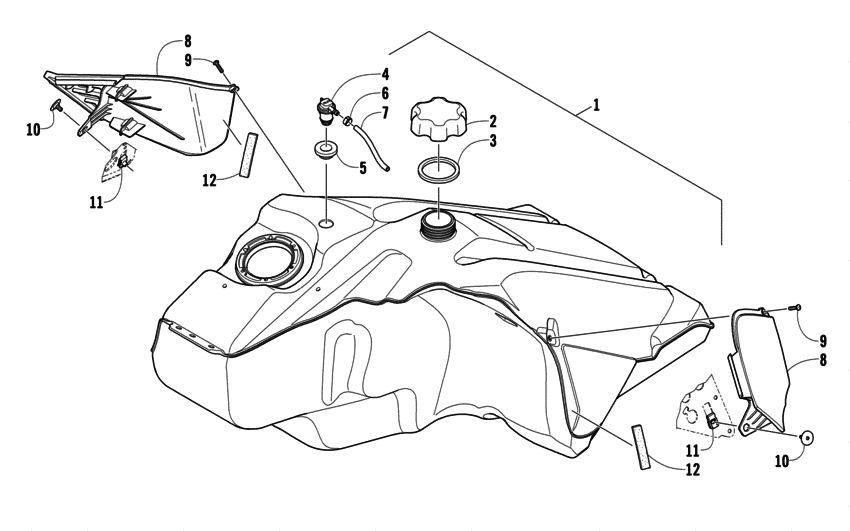

Gas Tank Assembly Diagram Arctic Cat BEARCAT Bearcat Z1 XT
- Model code
- S2010BCNWTUSG
- Engine Capacity
- 1056
- Year
- 2010
- Commercial Name
- Bearcat Z1 XT
- Sales region
- General
- Colour
- Green
- Power
- 123 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat Z1 XT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0770-910 TankAssembly; gas inc. 2-5 ; |
0770-910 |
US $618.23 |
||
|
2
|
2
0470-438 CapGas inc. 3 ; |
0470-438 |
US $15.58 |
||
|
3
|
3
0109-733 GasketGas cap |
0109-733 |
US $4.58 |
||
|
4
|
4
1670-787 ValveCheck |
1670-787 |
US $39.34 |
||
|
5
|
5
1670-822 Grommet |
1670-822 |
US $5.14 |
||
|
6
|
6
1623-233 ClampHose |
1623-233 |
US $4.40 |
||
|
7
|
7
6101-001 Hose100 ft; gasline |
6101-001 |
US $668.74 |
||
|
7
|
7
6101-009 Hose50 ft; vent |
6101-009 |
US $418.10 |
||
|
8
|
8
4706-746 Knee padRight |
4706-746 |
US $19.09 |
||
|
8
|
8
4706-747 Knee padLeft |
4706-747 |
US $19.09 |
||
|
9
|
9
8470-510 ScrewMachine |
8470-510 |
US $4.40 |
||
|
10
|
10
0423-101 ScrewBody |
0423-101 |
US $14.40 |
||
|
11
|
11
0423-577 ClipU-nut |
0423-577 |
US $2.90 |
||
|
12
|
12
0619-946 Tape1 ft; foam |
0619-946 |
US $36.80 |
