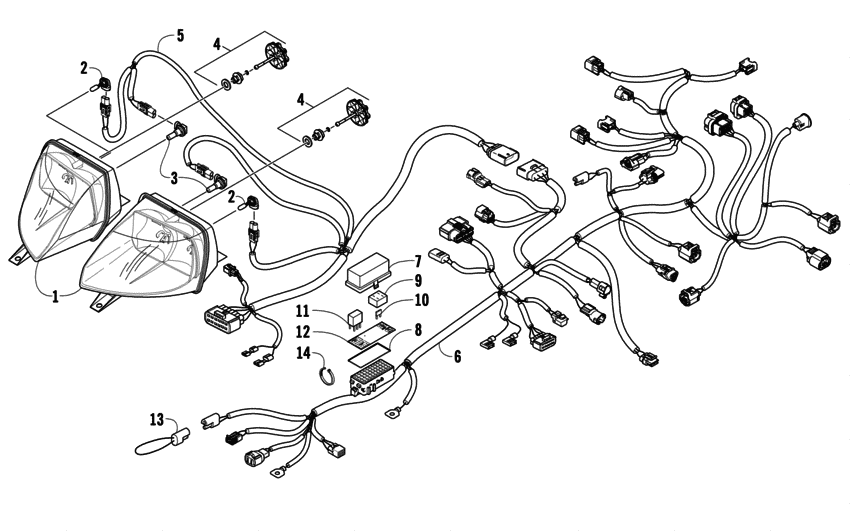

Headlight and wiring assemblies Diagram Arctic Cat BEARCAT Bearcat Z1 XT
- Model code
- S2010BCNWTUSG
- Engine Capacity
- 1056
- Year
- 2010
- Commercial Name
- Bearcat Z1 XT
- Sales region
- General
- Colour
- Green
- Power
- 123 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- Bearcat Z1 XT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0609-870 Lens/reflectorHeadlight - right inc. 2-4 ; |
0609-870 |
US $192.25 |
||
|
1
|
1
0609-871 Lens/reflectorHeadlight - left inc. 2-4 ; |
0609-871 |
US $192.25 |
||
|
2
|
2
0609-783 BulbLow beam; headlight |
0609-783 |
US $47.08 |
||
|
3
|
3
0609-782 BulbHigh beam; headlight |
0609-782 |
US $44.60 |
||
|
4
|
4
0609-779 AdjusterAssembly; headlight |
0609-779 |
US $40.89 |
||
|
5
|
5
1686-547 HarnessConsole |
1686-547 |
US $208.77 |
||
|
6
|
6
1686-522 HarnessMain inc. 7-13 ; |
1686-522 |
US $1,076.05 |
||
|
7
|
7
0430-085 CoverFuse block |
0430-085 |
US $8.43 |
||
|
8
|
8
0430-086 Seal |
0430-086 |
US $3.78 |
||
|
9
|
9
0430-037 HolderFuse |
0430-037 |
US $4.06 |
||
|
10
|
10
0430-031 Fuse15 amp |
0430-031 |
US $6.05 |
||
|
10
|
10
0630-232 Fuse20 amp |
0630-232 |
US $4.75 |
||
| replacement | |||||
|
10
|
10
0430-098 Fuse,mini-20a |
0430-098 |
US $3.92 |
||
|
10
|
10
0630-233 Fuse25 amp |
0630-233 |
US $4.48 |
||
| replacement | |||||
|
10
|
10
0430-099 FUSE,MINI-25A |
0430-099 |
US $2.11 |
||
|
10
|
10
0430-030 Fuse30 amp |
0430-030 |
US $8.67 |
||
|
11
|
11
0430-045 Relay20 amp |
0430-045 |
US $26.55 |
||
|
11
|
11
0430-033 Relay |
0430-033 |
US $24.13 |
||
|
12
|
12
8611-663
Decal
|
8611-663 |
— | ||
|
13
|
13
0486-164 TetherAccessory connector |
0486-164 |
US $13.42 |
||
|
14
|
14
0123-903 TieCable |
0123-903 |
US $7.40 |
||
