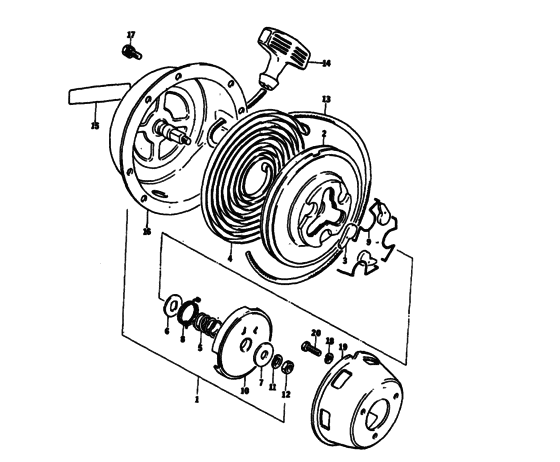

Recoil starter Diagram Arctic Cat CROSS COUNTRY CAT Сross Country Cat
- Model code
- 0250-086-1976
- Year
- 1976
- Commercial Name
- Сross Country Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3002-258 Recoil starter ass'yIncl. 2 - 16 |
3002-258 |
US $400.71 |
||
| replacement | |||||
|
1
|
1
3002-299 Recoil starter ass'yIncl. 2 - 16 |
3002-299 |
US $400.71 |
||
|
2
|
2
3001-600 ReelRecoil |
3001-600 |
US $85.93 |
||
| replacement | |||||
|
2
|
2
3002-301 ReelRecoil |
3002-301 |
US $85.93 |
||
|
3
|
3
3001-082 Pawl |
3001-082 |
US $219.45 |
||
| replacement | |||||
|
3
|
3
3004-730 Ratchet set |
3004-730 |
US $73.15 |
||
|
4
|
4
3001-077 SpringRecoil |
3001-077 |
US $46.05 |
||
|
5
|
5
3001-080 Spring |
3001-080 |
US $146.30 |
||
| replacement | |||||
|
5
|
5
3004-730 Ratchet set |
3004-730 |
US $73.15 |
||
|
6
|
6
3001-079
Washer
|
3001-079 |
— | ||
|
7
|
7
3001-602
Washer
|
3001-602 |
— | ||
|
8
|
8
3001-081 SpringReturn |
3001-081 |
US $44.79 |
||
|
9
|
9
3001-083
Spring
|
3001-083 |
— | ||
|
10
|
10
3001-084 RetainerCover |
3001-084 |
US $18.54 |
||
|
11
|
11
3000-044 WasherSpring |
3000-044 |
US $17.20 |
||
| replacement | |||||
|
11
|
11
3004-280 WasherLock |
3004-280 |
US $17.20 |
||
|
12
|
12
3000-045 Nut8mm |
3000-045 |
US $10.80 |
||
| replacements | |||||
|
12
|
12
3007-416 Nut |
3007-416 |
US $5.18 |
||
|
12
|
12
3004-334 Nut |
3004-334 |
US $21.60 |
||
|
13
|
13
3000-453 Rope |
3000-453 |
US $16.13 |
||
| replacements | |||||
|
13
|
13
3006-889 RopeStarter |
3006-889 |
US $50.66 |
||
|
13
|
13
3020-072 RopeStarter |
3020-072 |
US $30.62 |
||
|
14
|
14
3000-864
Handle
|
3000-864 |
— | ||
|
15
|
15
3002-109
Emblem
|
3002-109 |
— | ||
| replacement | |||||
|
15
|
15
0611-113
Decal
|
0611-113 |
— | ||
|
16
|
16
3002-107 CaseRecoil |
3002-107 |
US $153.25 |
||
| replacement | |||||
|
16
|
16
3002-610 CaseRecoil |
3002-610 |
US $153.25 |
||
|
17
|
17
3000-755 Bolt6 x 16 |
3000-755 |
US $0.55 |
||
|
18
|
18
3000-105 WasherSpring |
3000-105 |
US $32.20 |
||
| replacement | |||||
|
18
|
18
3004-447 WasherLock |
3004-447 |
US $21.70 |
||
|
19
|
19
3002-257 PulleyStarter |
3002-257 |
US $67.25 |
||
|
20
|
20
3000-083 Bolt |
3000-083 |
US $0.55 |
||
