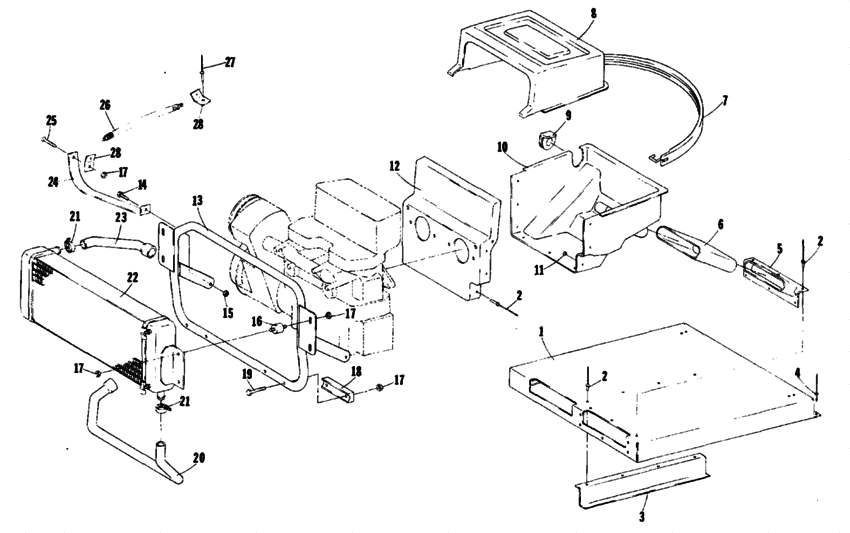

Cooling system Diagram Arctic Cat CROSS COUNTRY CAT Сross Country Cat
- Model code
- 0250-114-1977
- Year
- 1977
- Commercial Name
- Сross Country Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0109-985
Air cooler
|
0109-985 |
— | ||
|
2
|
2
0123-792
Rivet
|
0123-792 |
— | ||
|
3
|
3
0109-984
Support
|
0109-984 |
— | ||
|
4
|
4
8060-486 Rivet |
8060-486 |
US $11.60 |
||
|
5
|
5
0109-977
Flange
|
0109-977 |
— | ||
|
6
|
6
0109-978
Tube
|
0109-978 |
— | ||
|
7
|
7
0109-970
Seal
|
0109-970 |
— | ||
|
8
|
8
0109-974
Air box-upper
|
0109-974 |
— | ||
|
9
|
9
0109-925
Grommet
|
0109-925 |
— | ||
|
10
|
10
0109-975
Air box-lower
|
0109-975 |
— | ||
|
11
|
11
8050-122 Washer |
8050-122 |
US $78.40 |
||
|
12
|
12
0109-973
Air box-front
|
0109-973 |
— | ||
|
13
|
13
0109-979
Support
|
0109-979 |
— | ||
|
14
|
14
8002-130 ScrewCap |
8002-130 |
US $6.80 |
||
|
15
|
15
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
16
|
16
0115-018 Mount |
0115-018 |
US $80.75 |
||
|
17
|
17
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
18
|
18
0105-195
Bracket
|
0105-195 |
— | ||
|
19
|
19
8002-047 ScrewCap |
8002-047 |
US $7.50 |
||
|
20
|
20
0109-966
Hose
|
0109-966 |
— | ||
|
21
|
21
0214-017 Clamp |
0214-017 |
US $5.25 |
||
|
22
|
22
0109-965
Radiator
|
0109-965 |
— | ||
|
23
|
23
0109-967
Hose
|
0109-967 |
— | ||
|
24
|
24
0112-536
Support
|
0112-536 |
— | ||
|
25
|
25
0123-190 ScrewMachine |
0123-190 |
US $3.70 |
||
|
26
|
26
0112-232 Spring |
0112-232 |
US $23.50 |
||
|
27
|
27
0112-760
Rivet
|
0112-760 |
— | ||
|
28
|
28
0112-417
Tab
|
0112-417 |
— |
