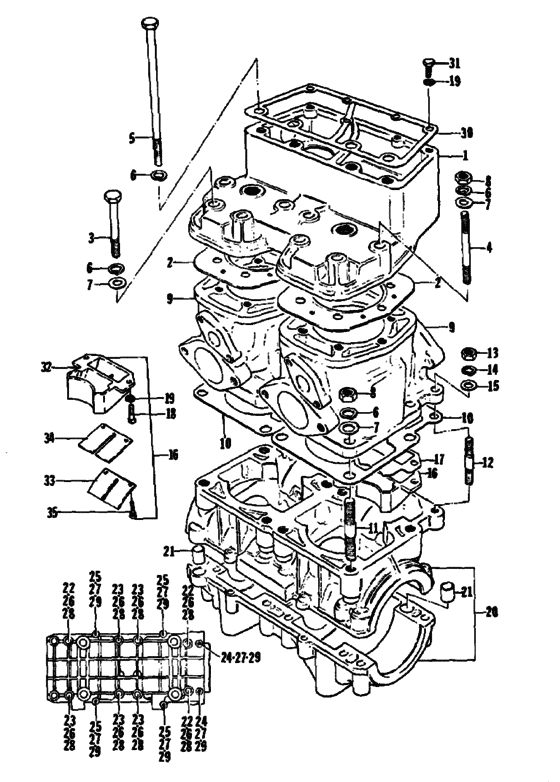

Crankcase And Cylinder Diagram Arctic Cat CROSS COUNTRY CAT Сross Country Cat
- Model code
- 0250-114-1977
- Year
- 1977
- Commercial Name
- Сross Country Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3002-359
Cylinder head
|
3002-359 |
— | ||
|
2
|
2
3002-362
Gasket
|
3002-362 |
— | ||
|
3
|
3
3002-347 Bolt |
3002-347 |
US $4.29 |
||
| replacement | |||||
|
3
|
3
3002-678 BoltHex m10-1.5x60 g5 |
3002-678 |
US $8.58 |
||
|
4
|
4
3002-431 BoltStud |
3002-431 |
US $4.22 |
||
| replacement | |||||
|
4
|
4
3007-500 BoltStud |
3007-500 |
US $3.53 |
||
|
5
|
5
3002-351
Bolt
|
3002-351 |
— | ||
|
6
|
6
3000-565 WasherLock |
3000-565 |
US $39.40 |
||
| replacement | |||||
|
6
|
6
3007-424 WasherLock |
3007-424 |
US $3.94 |
||
|
7
|
7
3002-017 Washer |
3002-017 |
US $2.79 |
||
| replacement | |||||
|
7
|
7
3007-410 Washer |
3007-410 |
US $3.78 |
||
|
8
|
8
3002-312 Nut |
3002-312 |
US $3.22 |
||
| replacement | |||||
|
8
|
8
3008-209 Nut |
3008-209 |
US $21.70 |
||
|
9
|
9
3002-365 Cylinder |
3002-365 |
US $576.28 |
||
|
10
|
10
3002-368 GasketCylinder |
3002-368 |
US $21.13 |
||
| replacement | |||||
|
10
|
10
3003-731 GasketCylinder |
3003-731 |
US $21.13 |
||
|
11
|
11
3002-021 Stud bolt |
3002-021 |
US $47.50 |
||
| replacement | |||||
|
11
|
11
3005-383 BoltCylinder; stud |
3005-383 |
US $4.75 |
||
|
12
|
12
3002-006 Stud bolt |
3002-006 |
US $32.20 |
||
| replacement | |||||
|
12
|
12
3007-520 BoltStud |
3007-520 |
US $3.22 |
||
|
13
|
13
3000-255 Nut8mm |
3000-255 |
US $2.16 |
||
| replacements | |||||
|
13
|
13
3007-416 Nut |
3007-416 |
US $5.18 |
||
|
13
|
13
3004-334 Nut |
3004-334 |
US $21.60 |
||
|
14
|
14
3000-044 WasherSpring |
3000-044 |
US $17.20 |
||
| replacement | |||||
|
14
|
14
3004-280 WasherLock |
3004-280 |
US $17.20 |
||
|
15
|
15
3000-102 Washer |
3000-102 |
US $16.10 |
||
| replacement | |||||
|
15
|
15
3423-204 WasherNo. 1; clutch |
3423-204 |
US $1.61 |
||
|
16
|
16
3002-437
Reed valve assy
|
3002-437 |
— | ||
|
17
|
17
3002-386 GasketReed valve |
3002-386 |
US $8.92 |
||
|
18
|
18
3002-349 Screw |
3002-349 |
US $8.05 |
||
|
19
|
19
3000-105 WasherSpring |
3000-105 |
US $32.20 |
||
| replacement | |||||
|
19
|
19
3004-447 WasherLock |
3004-447 |
US $21.70 |
||
|
20
|
20
3002-369
Crankcase Assy
|
3002-369 |
— | ||
| replacement | |||||
|
20
|
20
3002-948
Crankcase Assy
|
3002-948 |
— | ||
|
21
|
21
3002-027 Dowel pin |
3002-027 |
US $25.45 |
||
|
22
|
22
3002-004
Bolt
|
3002-004 |
— | ||
|
23
|
23
3002-003
Bolt
|
3002-003 |
— | ||
|
24
|
24
3002-398 Bolt |
3002-398 |
US $8.70 |
||
|
25
|
25
3002-217 Bolt |
3002-217 |
US $21.10 |
||
| replacement | |||||
|
25
|
25
3007-386 Bolt |
3007-386 |
US $3.22 |
||
|
26
|
26
3000-044 WasherSpring |
3000-044 |
US $17.20 |
||
| replacement | |||||
|
26
|
26
3004-280 WasherLock |
3004-280 |
US $17.20 |
||
|
27
|
27
3000-105 WasherSpring |
3000-105 |
US $32.20 |
||
| replacement | |||||
|
27
|
27
3004-447 WasherLock |
3004-447 |
US $21.70 |
||
|
28
|
28
3000-102 Washer |
3000-102 |
US $16.10 |
||
| replacement | |||||
|
28
|
28
3423-204 WasherNo. 1; clutch |
3423-204 |
US $1.61 |
||
|
29
|
29
3000-261 Washer |
3000-261 |
US $1.35 |
||
| replacement | |||||
|
29
|
29
3003-023 Washer |
3003-023 |
US $16.80 |
||
|
30
|
30
3002-392 Gasket |
3002-392 |
US $5.99 |
||
|
31
|
31
3002-216
Bolt
|
3002-216 |
— | ||
|
32
|
32
3002-545
Seat
|
3002-545 |
— | ||
|
33
|
33
3002-547 StopperReed valve |
3002-547 |
US $11.16 |
||
|
34
|
34
3002-548
Reed valve
|
3002-548 |
— | ||
|
35
|
35
3002-550 ScrewW/lock washer |
3002-550 |
US $16.10 |
||
