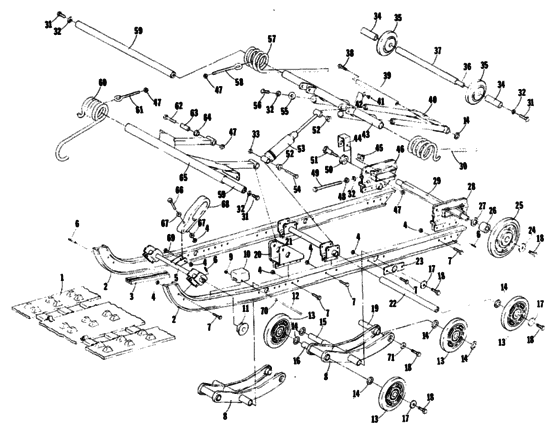

Undercarriage and track Diagram Arctic Cat CROSS COUNTRY CAT Сross Country Cat
- Model code
- 0250-114-1977
- Year
- 1977
- Commercial Name
- Сross Country Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0102-240 Track |
0102-240 |
US $647.15 |
||
| replacement | |||||
|
1
|
1
0102-294
Track assy
|
0102-294 |
— | ||
|
2
|
2
0104-975
Rail
|
0104-975 |
— | ||
|
3
|
3
0114-047
Strip
|
0114-047 |
— | ||
| replacement | |||||
|
3
|
3
0114-408 StripWear |
0114-408 |
US $23.61 |
||
|
4
|
4
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
5
|
5
0104-978
Crossbrace-front
|
0104-978 |
— | ||
|
6
|
6
8070-285 PinSpring |
8070-285 |
US $6.10 |
||
|
7
|
7
8002-132 ScrewCap |
8002-132 |
US $4.80 |
||
|
8
|
8
0104-966
Carriage
|
0104-966 |
— | ||
|
9
|
9
0123-766 NutPush |
0123-766 |
US $8.25 |
||
|
10
|
10
0104-631 PadRubber; shock |
0104-631 |
from US $4.80 |
||
|
11
|
11
0104-779 RollerFront spring |
0104-779 |
US $3.05 |
||
| replacement | |||||
|
11
|
11
0604-582 RollerSpring suspension |
0604-582 |
US $6.14 |
||
|
12
|
12
0123-767 RivetSolid |
0123-767 |
US $2.76 |
||
|
13
|
13
0114-042 Wheel |
0114-042 |
US $48.32 |
||
| replacement | |||||
|
13
|
13
0604-450 WheelInc. 17, 19, 31, 32; idler |
0604-450 |
US $48.32 |
||
|
14
|
14
0123-439 Washer |
0123-439 |
US $50.40 |
||
|
15
|
15
0114-054
Axle
|
0114-054 |
— | ||
|
16
|
16
0114-056
Axle
|
0114-056 |
— | ||
|
17
|
17
0123-260 Washer |
0123-260 |
US $10.40 |
||
|
18
|
18
8012-130 ScrewLock; cap |
8012-130 |
US $13.70 |
||
|
19
|
19
0114-057
Axle
|
0114-057 |
— | ||
|
20
|
20
0104-984
Bracket
|
0104-984 |
— | ||
|
21
|
21
0104-974
Bracket
|
0104-974 |
— | ||
|
22
|
22
0114-055 Axle |
0114-055 |
US $43.57 |
||
|
23
|
23
0104-972
Bracket
|
0104-972 |
— | ||
|
24
|
24
0123-019 Washer |
0123-019 |
US $45.80 |
||
|
25
|
25
0114-061 Wheel |
0114-061 |
US $48.32 |
||
| replacement | |||||
|
25
|
25
0114-206 WheelInc. 51-52, 55-56; idler w/bearing |
0114-206 |
US $48.32 |
||
|
26
|
26
0104-785 Spacer |
0104-785 |
US $14.06 |
||
|
27
|
27
0104-784 WasherHex |
0104-784 |
US $0.55 |
||
|
28
|
28
0104-957
Housing
|
0104-957 |
— | ||
|
29
|
29
0114-037
Axle-rear
|
0114-037 |
— | ||
|
30
|
30
0114-045
Spring
|
0114-045 |
— | ||
|
31
|
31
8002-222
Screw
|
8002-222 |
— | ||
|
32
|
32
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
33
|
33
8041-486 NutLock |
8041-486 |
US $5.80 |
||
|
34
|
34
0114-053
Spacer
|
0114-053 |
— | ||
|
35
|
35
0104-875 WheelIdler |
0104-875 |
US $39.81 |
||
|
36
|
36
0104-781 AxleIdler |
0104-781 |
US $47.30 |
||
|
37
|
37
0114-052
Spacer
|
0114-052 |
— | ||
|
38
|
38
8012-132 ScrewLock; cap |
8012-132 |
US $2.95 |
||
|
39
|
39
0104-765
Axle
|
0104-765 |
— | ||
|
40
|
40
0104-790 TelescopeRear arm |
0104-790 |
US $128.32 |
||
|
41
|
41
0104-062 Zerk |
0104-062 |
US $8.25 |
||
|
42
|
42
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
43
|
43
0104-985
Arm
|
0104-985 |
— | ||
|
44
|
44
0114-058
Retainer
|
0114-058 |
— | ||
|
45
|
45
0104-838 Plate/nutWeldment |
0104-838 |
US $37.26 |
||
|
46
|
46
0104-956
Housing
|
0104-956 |
— | ||
|
47
|
47
8040-486 NutLock |
8040-486 |
from US $1.60 |
||
|
48
|
48
8042-486 Nut |
8042-486 |
US $44.20 |
||
|
49
|
49
0123-703 ScrewCap |
0123-703 |
US $2.28 |
||
| replacement | |||||
|
49
|
49
0124-310 ScrewCap |
0124-310 |
US $13 |
||
|
50
|
50
0104-922 RollerSpring-rear |
0104-922 |
US $111.30 |
||
|
51
|
51
0104-842 BoltShoulder |
0104-842 |
US $24.35 |
||
|
52
|
52
0103-099 Bushing |
0103-099 |
US $29.68 |
||
|
53
|
53
0104-964
Shock
|
0104-964 |
— | ||
|
54
|
54
8002-226 ScrewCap |
8002-226 |
US $4.80 |
||
|
55
|
55
0123-570 Washer |
0123-570 |
from US $6.40 |
||
|
56
|
56
8012-192 ScrewCap-lock |
8012-192 |
US $4.25 |
||
|
57
|
57
0114-044
Spring
|
0114-044 |
— | ||
|
58
|
58
2272-056
Eyebolt
|
2272-056 |
— | ||
|
59
|
59
0104-960
Axle
|
0104-960 |
— | ||
|
60
|
60
0104-980 SpringFront-right |
0104-980 |
US $110.89 |
||
|
60
|
60
0104-981 SpringFront-left |
0104-981 |
US $107.12 |
||
|
61
|
61
2272-037
Eye bolt
|
2272-037 |
— | ||
|
62
|
62
8002-228 ScrewCap |
8002-228 |
US $23.35 |
||
|
63
|
63
0104-629 Spacer |
0104-629 |
US $20.77 |
||
|
64
|
64
0104-386 Bushing |
0104-386 |
US $39.20 |
||
|
65
|
65
0104-982
Arm
|
0104-982 |
— | ||
|
66
|
66
8002-137 ScrewCap |
8002-137 |
US $7.50 |
||
|
67
|
67
8050-247 Washer |
8050-247 |
US $8.80 |
||
|
68
|
68
0104-816
Stop
|
0104-816 |
— | ||
|
69
|
69
8002-135 ScrewCap |
8002-135 |
US $2.85 |
||
|
70
|
70
0123-149 Washer |
0123-149 |
US $11.28 |
||
|
71
|
71
8050-252 Washer |
8050-252 |
US $8.80 |
||
