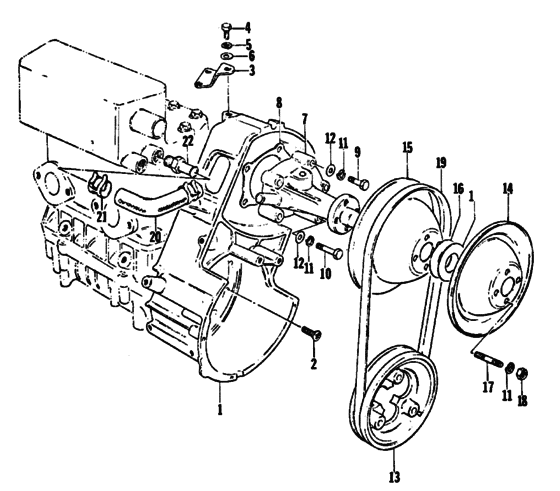

Water pump Diagram Arctic Cat CROSS COUNTRY CAT Сross Country Cat
- Model code
- 0250-114-1977
- Year
- 1977
- Commercial Name
- Сross Country Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3002-224
Case
|
3002-224 |
— | ||
|
2
|
2
3002-127 Screw |
3002-127 |
US $3.52 |
||
| replacement | |||||
|
2
|
2
3003-395
Screw
|
3003-395 |
— | ||
|
3
|
3
3002-373
Bracket
|
3002-373 |
— | ||
|
4
|
4
3002-108
Bolt
|
3002-108 |
— | ||
|
5
|
5
3000-044 WasherSpring |
3000-044 |
US $17.20 |
||
| replacement | |||||
|
5
|
5
3004-280 WasherLock |
3004-280 |
US $17.20 |
||
|
6
|
6
3000-102 Washer |
3000-102 |
US $16.10 |
||
| replacement | |||||
|
6
|
6
3423-204 WasherNo. 1; clutch |
3423-204 |
US $1.61 |
||
|
7
|
7
3002-228
Water pump ass'y
|
3002-228 |
— | ||
|
8
|
8
3002-229
Gasket
|
3002-229 |
— | ||
|
9
|
9
3002-216
Bolt
|
3002-216 |
— | ||
|
10
|
10
3002-217 Bolt |
3002-217 |
US $21.10 |
||
| replacement | |||||
|
10
|
10
3007-386 Bolt |
3007-386 |
US $3.22 |
||
|
11
|
11
3000-105 WasherSpring |
3000-105 |
US $32.20 |
||
| replacement | |||||
|
11
|
11
3004-447 WasherLock |
3004-447 |
US $21.70 |
||
|
12
|
12
3000-261 Washer |
3000-261 |
US $1.35 |
||
| replacement | |||||
|
12
|
12
3003-023 Washer |
3003-023 |
US $16.80 |
||
|
13
|
13
3002-232
Pulley
|
3002-232 |
— | ||
|
14
|
14
3002-233
Pulley
|
3002-233 |
— | ||
|
15
|
15
3002-234 PulleyDriven, no. 2 |
3002-234 |
US $22.37 |
||
|
16
|
16
3002-235 Shim |
3002-235 |
US $6.96 |
||
|
17
|
17
3002-436 BoltStud |
3002-436 |
US $27.90 |
||
| replacement | |||||
|
17
|
17
3004-850 BoltStud |
3004-850 |
US $2.79 |
||
|
18
|
18
3000-278
Nut
|
3000-278 |
— | ||
|
19
|
19
3002-236
Belt
|
3002-236 |
— | ||
|
20
|
20
3002-388
Hose
|
3002-388 |
— | ||
|
21
|
21
3002-220 Clamp |
3002-220 |
US $6.46 |
||
| replacement | |||||
|
21
|
21
3008-488 ClampHose |
3008-488 |
US $9.10 |
||
|
22
|
22
3002-218 Union |
3002-218 |
US $20.44 |
||
