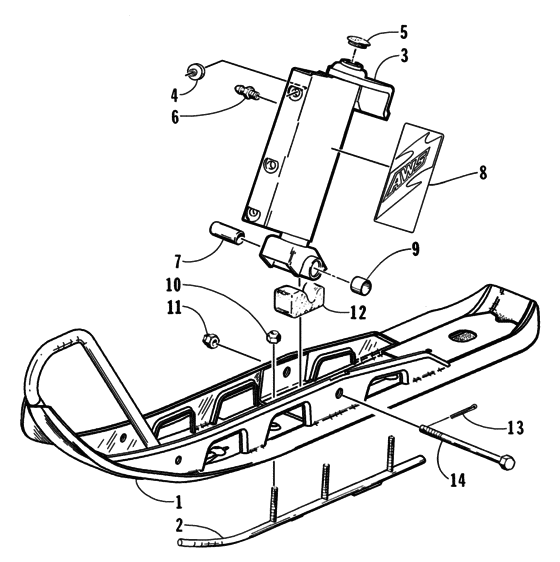

Ski And Spindle Assembly Diagram Arctic Cat EXT EXT 600
- Model code
- 98ETA-1998
- Engine Capacity
- 600
- Year
- 1998
- Commercial Name
- EXT 600
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- EXT 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0703-295 Ski |
0703-295 |
US $173.20 |
||
|
2
|
2
0703-251 Skag |
0703-251 |
US $80.94 |
||
|
3
|
3
0703-480 SpindleInc. two no. 9, one no. 13 and four no. 12; right; housing |
0703-480 |
US $311.58 |
||
|
3
|
3
0703-481 SpindleInc. two no. 9, one no. 13 and four no. 12; left; housing |
0703-481 |
US $311.58 |
||
|
4
|
4
0603-647 InsertSpindle |
0603-647 |
US $11.64 |
||
|
5
|
5
0603-049 CapSpindle |
0603-049 |
US $4.40 |
||
|
6
|
6
0623-010 ZerkGrease |
0623-010 |
US $5.81 |
||
|
7
|
7
0603-034 AxleSpindle |
0603-034 |
US $17.83 |
||
| replacement | |||||
|
7
|
7
2603-548 AxleSpindle |
2603-548 |
US $17.83 |
||
|
8
|
8
2611-862 DecalRight; aws spindle |
2611-862 |
US $21.16 |
||
|
8
|
8
2611-863 DecalLeft; aws spindle |
2611-863 |
US $21.16 |
||
|
9
|
9
0603-158 Bearing |
0603-158 |
US $31.04 |
||
|
10
|
10
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
11
|
11
0623-027 NutFlex lock |
0623-027 |
US $11.14 |
||
|
12
|
12
0603-036 Damper |
0603-036 |
US $78.16 |
||
|
13
|
13
0123-458 PinCotter |
0123-458 |
US $5.80 |
||
|
14
|
14
0623-080 ScrewCap |
0623-080 |
US $46.44 |
||
