	Description	OEM Part #	Price
1	1 0718-644 Tunnel assembly Inc. 2	0718-644	US $716.26
2	2 0706-716 Bracket Rear; rh; susp. mtg.	0706-716	US $92.76
	replacement
2	2 2706-608 Bracket Susp.rh-ptd blk	2706-608	US $92.76
3	3 0616-965 Plate Front; suspension mounting	0616-965	US $14.82
	replacement
3	3 2706-111 Plate Front; suspension mounting	2706-111	US $14.82
3	3 0706-717 Bracket Rear; lh; susp. mtg.	0706-717	US $92.76
	replacement
3	3 2706-609 Bracket Susp.lh-ptd blk	2706-609	US $92.76
4	4 0123-418 Rivet	0123-418	US $10.60 ~~US $10.60~~
5	5 2611-940 Decal Rear; tunnel	2611-940	US $68.43
6	6 2611-860 Decal Right; tunnel	2611-860	US $31.06
6	6 2611-861 Decal Left; tunnel	2611-861	US $51.02
7	7 0716-481 Bumper	0716-481	—
7	7 0616-730 Bumper	0616-730	—
8	8 0606-821 Insert Bumper	0606-821	US $54.78
	replacement
8	8 2706-600 Insert	2706-600	—
9	9 0616-728 Plate Rear tunnel; end	0616-728	US $258.20
10	10 0606-029 Red reflector	0606-029	US $58.48
11	11 0623-269 Clip Retaining	0623-269	US $8.25
12	12 8002-046 Screw Cap	8002-046	US $15
13	13 1611-567 Decal French; towing caution	1611-567	US $27.98
14	14 1611-566 Decal	1611-566	—
15	15 8002-040 Screw Cap	8002-040	US $10.41
16	16 8050-217 Washer	8050-217	US $3
17	17 8040-366 Nut Lock	8040-366	US $8.60
18	18 8019-585 Screw Machine	8019-585	US $0.50
19	19 8017-582 Screw Machine	8017-582	US $5.90
20	20 0616-612 Snowflap	0616-612	—
21	21 0616-613 Snowflap	0616-613	—

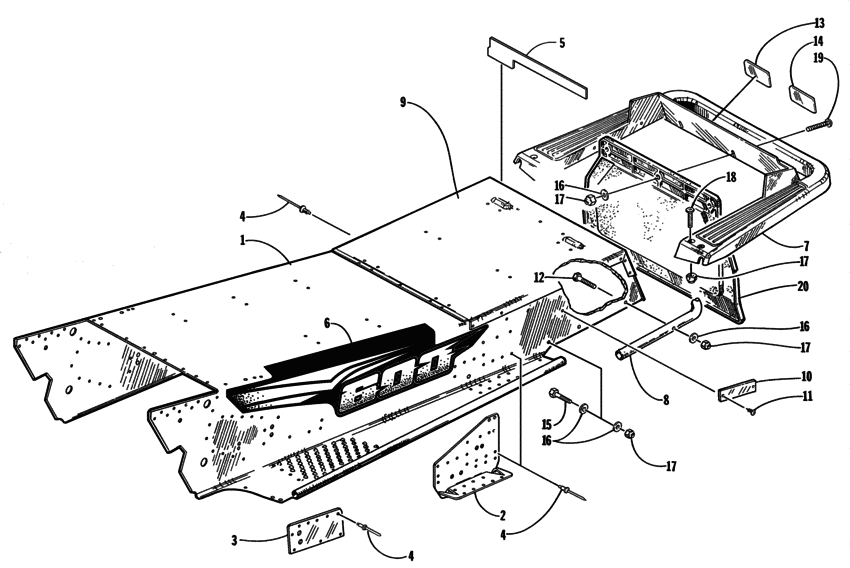

Tunnel and rear bumper Diagram Arctic Cat EXT EXT 600 General 10953350-696907
