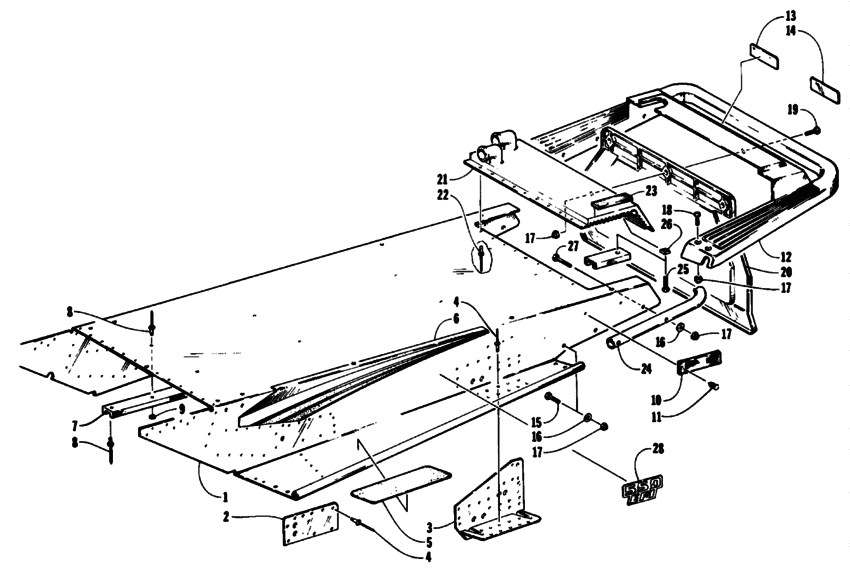

Tunnel and rear bumper Diagram Arctic Cat EXT EXT EFI
- Model code
- 0650-236-1993
- Year
- 1993
- Commercial Name
- EXT EFI
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- EXT EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0718-201 Tunnel ass'yInc. 3 |
0718-201 |
US $883.43 |
||
|
2
|
2
0606-554 PlateFr; susp. mtg. |
0606-554 |
US $25.77 |
||
| replacement | |||||
|
2
|
2
2706-277 PlateFront; suspension mounting |
2706-277 |
US $25.77 |
||
|
3
|
3
0706-717 BracketRear; lh; susp. mtg. |
0706-717 |
US $92.76 |
||
| replacement | |||||
|
3
|
3
2706-609 BracketSusp.lh-ptd blk |
2706-609 |
US $92.76 |
||
|
3
|
3
0706-716 BracketRear; rh; susp. mtg. |
0706-716 |
US $92.76 |
||
| replacement | |||||
|
3
|
3
2706-608 BracketSusp.rh-ptd blk |
2706-608 |
US $92.76 |
||
|
4
|
4
8060-504 Rivet |
8060-504 |
US $8.60 |
||
|
5
|
5
0116-924
Pad
|
0116-924 |
— | ||
|
6
|
6
1611-456 DecalRh; tunnel |
1611-456 |
US $24.83 |
||
|
6
|
6
1611-457 DecalLh; tunnel |
1611-457 |
US $48.32 |
||
|
7
|
7
0706-739 WearstripTunnel |
0706-739 |
US $28.58 |
||
|
8
|
8
8060-488 Rivet |
8060-488 |
US $5.90 |
||
|
9
|
9
0123-149 Washer |
0123-149 |
US $11.28 |
||
|
10
|
10
0606-029 Red reflector |
0606-029 |
US $58.48 |
||
|
11
|
11
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
12
|
12
0706-741 BumperInc. 43; rear |
0706-741 |
US $181.32 |
||
| replacement | |||||
|
12
|
12
0716-223
Bumper
|
0716-223 |
— | ||
|
13
|
13
1611-567 DecalFrench; towing caution |
1611-567 |
US $27.98 |
||
|
14
|
14
1611-566
Decal
|
1611-566 |
— | ||
|
15
|
15
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
16
|
16
8050-217 Washer |
8050-217 |
US $3 |
||
|
17
|
17
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
18
|
18
8007-615 ScrewMachine |
8007-615 |
US $4.88 |
||
|
19
|
19
8007-582 ScrewMachine |
8007-582 |
US $2.40 |
||
|
20
|
20
0616-086 Snowflap |
0616-086 |
US $50.82 |
||
| replacement | |||||
|
20
|
20
0616-612
Snowflap
|
0616-612 |
— | ||
|
20
|
20
0606-514
Snowflap
|
0606-514 |
— | ||
|
21
|
21
0706-564 ExchangerRear; heat |
0706-564 |
US $194.40 |
||
|
22
|
22
0123-784 Rivet |
0123-784 |
US $8.70 |
||
|
23
|
23
0706-707
Strip
|
0706-707 |
— | ||
|
24
|
24
0606-821 InsertBumper |
0606-821 |
US $54.78 |
||
| replacement | |||||
|
24
|
24
2706-600
Insert
|
2706-600 |
— | ||
|
25
|
25
8009-577 ScrewMachine |
8009-577 |
US $1.95 |
||
|
26
|
26
0623-076 NutSquare |
0623-076 |
US $132.65 |
||
|
27
|
27
0623-032 ScrewCap |
0623-032 |
US $7.50 |
||
|
28
|
28
1611-485 Decal"550 efi" |
1611-485 |
US $62.27 |
||
