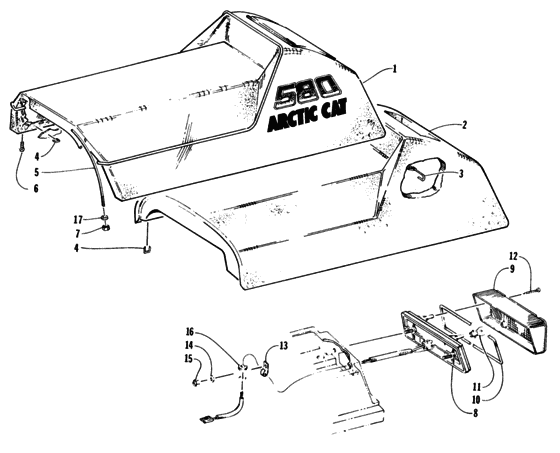

Seat and taillight assembly Diagram Arctic Cat EXT EXT EFI
- Model code
- 96ETB-1996
- Year
- 1996
- Commercial Name
- EXT EFI
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- EXT EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
0718-457
Complete seat assembly
|
0718-457 |
— | ||
|
1
|
1
0716-482
Cover
|
0716-482 |
— | ||
|
2
|
2
0706-971
Bumper
|
0706-971 |
— | ||
|
3
|
3
0606-057 WireSeat |
0606-057 |
US $10.50 |
||
|
4
|
4
0623-577 Staple |
0623-577 |
US $148.85 |
||
| replacement | |||||
|
4
|
4
0624-528 Staple |
0624-528 |
US $148.85 |
||
|
5
|
5
0616-389 Hold downSeat cover |
0616-389 |
US $34.67 |
||
| replacement | |||||
|
5
|
5
3706-219 HolddownSeat cover-ptd blk |
3706-219 |
US $34.67 |
||
|
6
|
6
0124-031 Screw |
0124-031 |
US $27.98 |
||
|
7
|
7
8040-246 NutLock |
8040-246 |
US $4.30 |
||
|
8
|
8
0609-091 Taillight w/socket ass'y |
0609-091 |
US $74.39 |
||
|
9
|
9
0609-090 LensTaillight |
0609-090 |
US $59.81 |
||
|
10
|
10
0609-092 GasketTaillight |
0609-092 |
US $12.71 |
||
|
11
|
11
0109-460 BulbStop taillight |
0109-460 |
US $2.70 |
||
|
12
|
12
0609-093 Screw |
0609-093 |
US $5.90 |
||
|
13
|
13
3002-964 ClampWire |
3002-964 |
US $11.48 |
||
| replacement | |||||
|
13
|
13
1623-984 Clamp,wire - 76.14mm lg w/6.25 hole |
1623-984 |
US $17.70 |
||
|
14
|
14
8050-217 Washer |
8050-217 |
US $3 |
||
|
15
|
15
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
16
|
16
0617-136 SealSeat base; foam |
0617-136 |
US $2.09 |
||
|
17
|
17
8050-152 Washer |
8050-152 |
US $93.40 |
||
