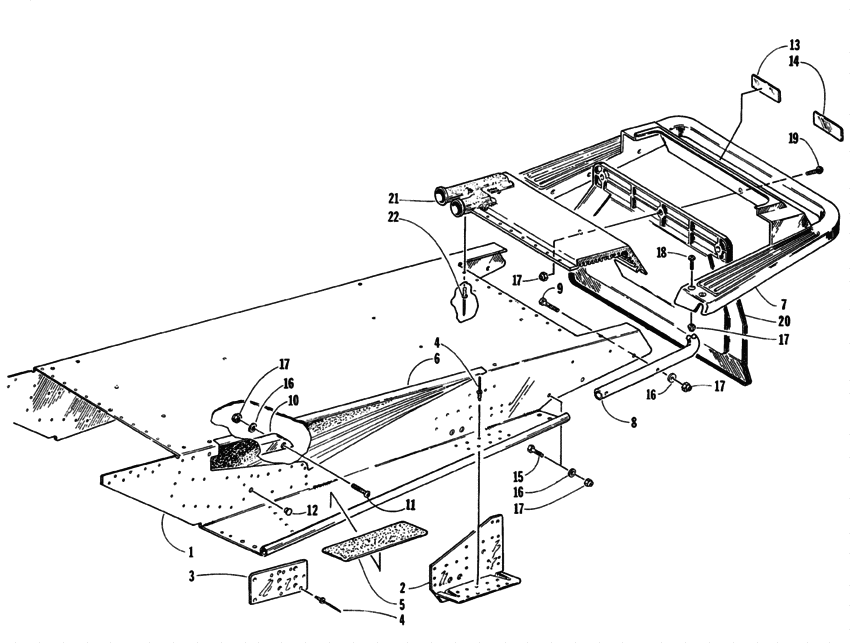

Tunnel and rear bumper Diagram Arctic Cat EXT EXT Mountain Cat
- Model code
- 96ETC-1996
- Year
- 1996
- Commercial Name
- EXT Mountain Cat
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- EXT Mountain Cat
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0718-407 Tunnel assemblyInc. 2 |
0718-407 |
US $690.44 |
||
|
2
|
2
0706-730 BracketRear; susp. mtg-rh |
0706-730 |
US $41.05 |
||
|
2
|
2
0706-731 BracketRear; sups. mtg-lh |
0706-731 |
US $44.79 |
||
|
3
|
3
0616-459 PlateFront; suspension mounting |
0616-459 |
US $4.33 |
||
|
4
|
4
8060-504 Rivet |
8060-504 |
US $8.60 |
||
|
5
|
5
0116-924
Pad
|
0116-924 |
— | ||
|
6
|
6
2611-424
Decal
|
2611-424 |
— | ||
|
6
|
6
2611-425
Decal
|
2611-425 |
— | ||
|
7
|
7
0716-223
Bumper
|
0716-223 |
— | ||
|
7
|
7
0616-731 BumperRear |
0616-731 |
US $151.29 |
||
|
8
|
8
0606-821 InsertBumper |
0606-821 |
US $54.78 |
||
| replacement | |||||
|
8
|
8
2706-600
Insert
|
2706-600 |
— | ||
|
9
|
9
8002-046 ScrewCap |
8002-046 |
US $15 |
||
|
10
|
10
0604-497 GuideTrack |
0604-497 |
US $18.54 |
||
|
11
|
11
0623-268 ScrewMachine |
0623-268 |
US $1.30 |
||
|
12
|
12
0606-983 PlugBody |
0606-983 |
US $3.84 |
||
|
13
|
13
1611-567 DecalFrench; towing caution |
1611-567 |
US $27.98 |
||
|
14
|
14
1611-566
Decal
|
1611-566 |
— | ||
|
15
|
15
8002-040 ScrewCap |
8002-040 |
US $10.41 |
||
|
16
|
16
8050-217 Washer |
8050-217 |
US $3 |
||
|
17
|
17
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
18
|
18
8007-585 ScrewCap |
8007-585 |
US $2.05 |
||
|
19
|
19
8007-582 ScrewMachine |
8007-582 |
US $2.40 |
||
|
20
|
20
0616-612
Snowflap
|
0616-612 |
— | ||
|
20
|
20
0616-613
Snowflap
|
0616-613 |
— | ||
|
21
|
21
0716-374 ExchangerRear; heat |
0716-374 |
US $149.52 |
||
|
22
|
22
0123-784 Rivet |
0123-784 |
US $8.70 |
||
