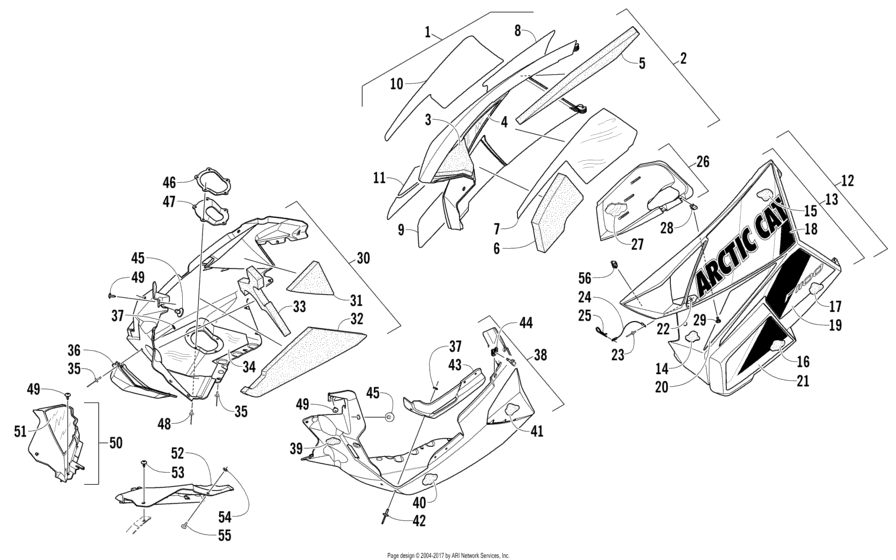

Skid Plate And Side Panel Assembly (96712) Diagram Arctic Cat F1100 F1100 Sno Pro Limited
- Model code
- S2013F1NELUSB
- Engine Capacity
- 1056
- Year
- 2013
- Commercial Name
- F1100 Sno Pro Limited
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 4-Stroke
- Model
- F1100 Sno Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3718-668 Panel,side-rh w/decals(f1100 ltd blk)Right - w/Decals - Black | (inc. 2-11) |
3718-668 |
US $547.16 |
||
|
2
|
2
3718-660 Panel,side-rh w/foam-blk/clr (4 strk)Right - w/o Decals - Black | (inc. 3-7) |
3718-660 |
US $287.93 |
||
|
3
|
3
0617-626 Foam,upper side panel-frt-rhUpper Front - Right |
0617-626 |
US $4.33 |
||
|
4
|
4
6606-414 Foil,protective-middle side panel-rhUpper Front - Right |
6606-414 |
US $1.92 |
||
|
5
|
5
0617-628 Foam,upper side panel-rear-rhUpper Rear - Right |
0617-628 |
US $36.80 |
||
|
6
|
6
0617-632 Foam,lwr side panel-frt-rhLower Front - Right |
0617-632 |
US $20.41 |
||
|
7
|
7
6606-416 Foil,protective-lwr side panel-rear-rhLower Front - Right |
6606-416 |
US $3.64 |
||
|
8
|
8
0621-292 Decal,side panel-upper-blk-rh (ltd)Upper Rear - Right |
0621-292 |
US $77.74 |
||
|
9
|
9
0621-298 Decal,side panel-fwd-blk-rh (ltd)Lower Front - Right |
0621-298 |
US $105.04 |
||
|
10
|
10
0621-302 Decal,side panel-lwr-blk-rh (f 1100 ltd)Lower Rear - Right |
0621-302 |
US $105.04 |
||
|
11
|
11
0621-296 Decal,side panel-mid-blk-rh (ltd)Upper Front - Right |
0621-296 |
US $99.59 |
||
|
12
|
12
3718-669 Panel,side-lh w/decals(f1100 ltd blk)Left - w/Decals - Black | (inc. 13-21) |
3718-669 |
US $547.16 |
||
|
13
|
13
3718-659 Panel,side-lh w/foam-blk/clrw/o Decals - Left - Black | (inc. 14-17) |
3718-659 |
US $287.93 |
||
|
14
|
14
0617-631 Foam,middle side panel-lhCenter Front - Left |
0617-631 |
US $4.33 |
||
|
15
|
15
0617-629 Foam,upper side panel-rear-lhUpper Rear - Left |
0617-629 |
US $16.80 |
||
|
16
|
16
0617-681 Foam,lwr side panel-frt-lhLower Front - Left |
0617-681 |
US $5.75 |
||
|
17
|
17
0617-635 Foam,lwr side panel-rear-lhLower Rear - Left |
0617-635 |
US $12.60 |
||
|
18
|
18
0621-293 Decal,side panel-upper-blk-lh (ltd)Upper Rear - Left |
0621-293 |
US $77.74 |
||
|
19
|
19
0621-303 Decal,side panel-lwr-blk-lh (f 1100 ltd)Lower Rear - Left |
0621-303 |
US $105.04 |
||
|
20
|
20
0621-297 Decal,side panel-mid-blk-lh (ltd)Upper Front - Left |
0621-297 |
US $99.59 |
||
|
21
|
21
0621-299 Decal,side panel-fwd-blk-lh (ltd)Lower Front - Left |
0621-299 |
US $105.04 |
||
|
22
|
22
8050-127 WasherFlat Lower Front - Left |
8050-127 |
US $39 |
||
|
23
|
23
8060-486 RivetLower Front - Left |
8060-486 |
US $11.60 |
||
|
24
|
24
0607-447 CableLower Front - Left |
0607-447 |
US $4.98 |
||
|
25
|
25
0605-283 KeyCotter Lower Front - Left |
0605-283 |
US $14.25 |
||
|
26
|
26
1702-279 Duct,air-clutch w/foilClutch W/Foil | (inc. 27) |
1702-279 |
US $42.27 |
||
|
27
|
27
6606-462 Foil,clutch duct-2 strokeClutch W/Foil | (inc. 27) |
6606-462 |
US $2.94 |
||
|
28
|
28
1623-030 NutSpeed Clutch W/Foil | (inc. 27) |
1623-030 |
US $8.04 |
||
|
29
|
29
0623-797 ScrewSelf-tapping Clutch W/Foil | (inc. 27) |
0623-797 |
US $8.32 |
||
| replacement | |||||
|
29
|
29
2623-164 Screw, Self-TappingClutch W/Foil | (inc. 27) |
2623-164 |
US $7.60 |
||
|
30
|
30
3718-744 Plate,skid-blk/clr-rh w/foamRight - w/o Decals - Black | (inc. 34-40) |
3718-744 |
US $367.11 |
||
|
31
|
31
0617-638 Foam,skid plate-middle-rhCenter Front - Right |
0617-638 |
US $43.62 |
||
|
32
|
32
0617-640 Foam,skid plate-rear-rhUpper Rear - Right |
0617-640 |
US $3.64 |
||
|
33
|
33
0617-636 Foam,skid plate-frt-rhUpper Front - Right |
0617-636 |
US $36.80 |
||
|
34
|
34
2612-850 Foil,skid plate-resonatorUpper Front - Right |
2612-850 |
US $19.09 |
||
| replacement | |||||
|
34
|
34
3612-325 Foil,heat-Skid PlateUpper Front - Right |
3612-325 |
US $19.09 |
||
|
35
|
35
8061-708 RivetUpper Front - Right |
8061-708 |
US $13.40 |
||
|
36
|
36
2612-754 Shield,resonator-skid plateUpper Front - Right |
2612-754 |
US $26.77 |
||
|
37
|
37
0123-802 WasherUpper Front - Right |
0123-802 |
US $1.16 |
||
|
38
|
38
3718-745 Plate,skid-blk/clr-lh w/foamLeft - w/o Decals - Black | (inc. 46-49) |
3718-745 |
US $224.53 |
||
|
39
|
39
0617-637 Foam,skid plate-frt-lhUpper Front - Left |
0617-637 |
US $16.22 |
||
|
40
|
40
0617-639 Foam,skid plate-middle-lhCenter Front - Left |
0617-639 |
US $17.85 |
||
|
41
|
41
0617-641 Foam,skid plate-rear-lhUpper Rear - Left |
0617-641 |
US $4.32 |
||
|
42
|
42
8061-708 RivetUpper Rear - Left |
8061-708 |
US $13.40 |
||
|
43
|
43
6606-613 Retainer,tab-side panelUpper Rear - Left |
6606-613 |
US $13.35 |
||
|
44
|
44
1623-748 ClipStud Upper Rear - Left |
1623-748 |
US $7.57 |
||
|
45
|
45
5606-639 PinRetainer Upper Rear - Left |
5606-639 |
US $54.60 |
||
| replacement | |||||
|
45
|
45
6606-592 Pin,retainer-body plasticUpper Rear - Left |
6606-592 |
US $13.58 |
||
|
46
|
46
2612-796 Plate,exhaust outletUpper Rear - Left |
2612-796 |
US $24.24 |
||
|
47
|
47
2612-799 Seal,exhaust outlet-4 strkUpper Rear - Left |
2612-799 |
US $16.56 |
||
|
48
|
48
8061-710 RivetUpper Rear - Left |
8061-710 |
US $30 |
||
|
49
|
49
1623-129 ScrewSelf-tapping Upper Rear - Left |
1623-129 |
US $3.34 |
||
| replacement | |||||
|
49
|
49
2623-166 Screw, Self-TappingUpper Rear - Left |
2623-166 |
US $10.40 |
||
|
50
|
50
3718-302 Panel,filler w/foil-rhRight - Black | (inc. 45) |
3718-302 |
US $75.53 |
||
|
51
|
51
6606-404 Foil,protective-filler panel-rhRight - Black | (inc. 45) |
6606-404 |
US $2.66 |
||
|
52
|
52
6606-343 Panel,filler-lh blkLeft - Black |
6606-343 |
US $17.83 |
||
|
53
|
53
0623-784
Screw
Left - Black |
0623-784 |
— | ||
| replacement | |||||
|
53
|
53
2623-163 Screw, Self-TappingLeft - Black |
2623-163 |
US $9.05 |
||
|
54
|
54
2623-001 Ushnut - 3/16" studLeft - Black |
2623-001 |
US $2.36 |
||
|
55
|
55
1623-999 Screw,1" rnd knob-m5x0.8x20mm lgLeft - Black |
1623-999 |
US $26.68 |
||
|
56
|
56
1623-637 ClipU-nut Left - Black |
1623-637 |
US $13 |
||
