	Description	OEM Part #	Price
	0644-198 Wrench Nut Not Illustrated.;	0644-198	US $2.26
1	1 0616-165 Console	0616-165	US $302.83
2	2 1611-414 Decal	1611-414	—
3	3 8050-157 Washer	8050-157	US $33
4	4 0623-378 Screw Self-tapping	0623-378	US $5.35 ~~US $5.35~~
5	5 0687-007 Cable Choke	0687-007	US $149.76
6	6 0636-062 Choke lever kit	0636-062	US $11.54
7	7 0609-080 Key	0609-080	US $95.45
	replacement
7	7 0609-412 Key	0609-412	—
8	8 0609-081 Switch Ignition	0609-081	US $50.82
9	9 0123-899 Washer	0123-899	—
10	10 0123-900 Nut Knurled	0123-900	US $10.54
11	11 0609-186 Switch Toggle	0609-186	US $25.51
	replacement
11	11 0609-903 Switch Handwarmer/thumbwarmer	0609-903	US $25.51
12	12 0609-189 Nut Toggle switch; retaining	0609-189	US $2.16
	replacement
12	12 0609-220 Nut Retaining	0609-220	US $6.48
13	13 8007-577 Screw	8007-577	—
14	14 2611-226 Plate Switches; console	2611-226	US $18.65
15	15 1611-408 Decal	1611-408	—
16	16 0617-133 Foam Lh side; vent	0617-133	US $43.42
17	17 0706-780 Trim Console	0706-780	US $13.65
18	18 0617-153 Foam Console-lh	0617-153	US $13.65
18	18 0617-152 Foam Console-rh	0617-152	US $12.38
19	19 0123-539 Nut	0123-539	—
20	20 8060-484 Rivet	8060-484	US $5.80
21	21 0106-956 Bracket	0106-956	US $2.85
22	22 0623-464 Nut Jam	0623-464	US $0.31
23	23 0623-034 Screw	0623-034	—

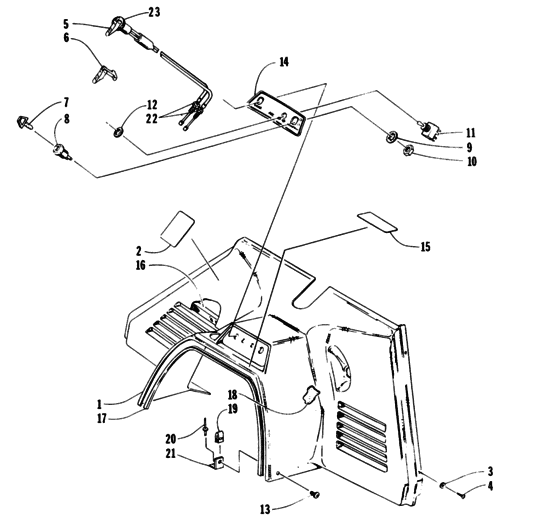

Console and switch assemblies Diagram Arctic Cat JAG JAG Liquid General 10950254-696829
