	Description	OEM Part #	Price
1	1 0115-135 Vent Gas tank	0115-135	US $4.90
2	2 0610-010 Hose Vent-25'	0610-010	US $70.91
3	3 0611-384 Decal Oil tank	0611-384	US $5.72
4	4 0636-272 Kit Fuel pump repair NOT ILLUSTRATED;	0636-272	US $80.41
5	5 0115-763 Spring Retaining	0115-763	US $49.60
6	6 0115-880 Cap Gas	0115-880	US $15.28
	replacement
6	6 0670-341 Cap Tank	0670-341	US $15.28
7	7 0109-733 Gasket Gas cap	0109-733	US $4.58
8	8 0670-054 Tank	0670-054	—
9	9 0115-739 Fitting	0115-739	US $23.85
10	10 0124-045 Clamp Hose	0124-045	US $37.30
11	11 0610-011 Hose 25 ft; clear	0610-011	US $120.16
12	12 0610-007 Line Fuel	0610-007	US $157.54
13	13 8061-710 Rivet	8061-710	US $30
14	14 0115-564 Pad	0115-564	—
15	15 0610-017 Hose 100'; gasline	0610-017	US $240.38
15	15 0610-008 Hose 25'; gas line	0610-008	US $98.94
16	16 0115-481 Fuel pump	0115-481	US $130.66
17	17 0510-335 Filter In-line	0510-335	US $42.74
	replacement
17	17 0470-988 Filter,fuel-inline	0470-988	US $39.08
18	18 0170-208 Tank Inc. 1, 2, 19, 20; gas	0170-208	US $171.92
	replacement
18	18 0770-025 Tank Gas-assy	0770-025	US $171.92
19	19 0670-125 Valve Shut off	0670-125	US $54.50
20	20 0510-358 Strainer	0510-358	US $8.85
21	21 0124-034 Spring	0124-034	—
22	22 0670-135 Cap Gas tank	0670-135	US $80.59
23	23 0611-709 Decal	0611-709	—

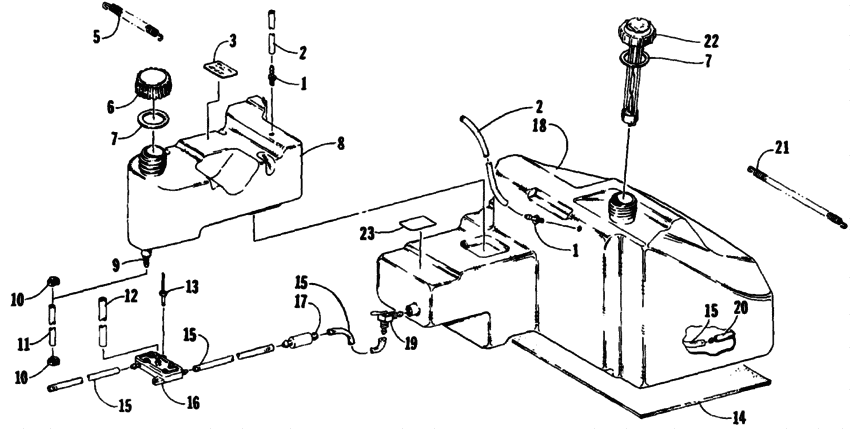

Gas and oil tank assembly Diagram Arctic Cat JAG JAG Mountain Cat General 10944826-696646
