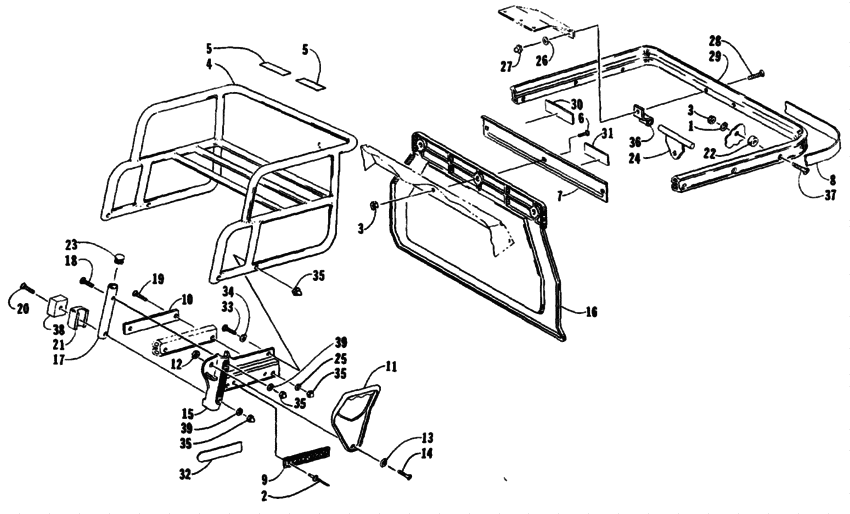

Rack and rear bumper Diagram Arctic Cat JAG JAG Mountain Cat
- Model code
- 0650-150-1991
- Year
- 1991
- Commercial Name
- JAG Mountain Cat
- Sales region
- General
- Model
- JAG Mountain Cat
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8050-217 Washer |
8050-217 |
US $3 |
||
|
2
|
2
8060-428 Rivet |
8060-428 |
US $12 |
||
|
3
|
3
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
4
|
4
0706-376 Rack |
0706-376 |
US $245.48 |
||
|
5
|
5
1611-004 DecalEnglish; maximum load |
1611-004 |
US $13.99 |
||
| replacement | |||||
|
5
|
5
1611-568
Decal
|
1611-568 |
— | ||
|
5
|
5
1611-005 DecalFrench; maximum load |
1611-005 |
US $13.99 |
||
| replacement | |||||
|
5
|
5
1611-569 DecalFrench; maximum load |
1611-569 |
US $13.99 |
||
|
6
|
6
8011-071 BoltCarriage |
8011-071 |
US $2.20 |
||
|
7
|
7
0106-914 CapSnowflap |
0106-914 |
US $59.76 |
||
|
8
|
8
0611-858
Strip
|
0611-858 |
— | ||
|
9
|
9
0606-029 Red reflector |
0606-029 |
US $58.48 |
||
|
10
|
10
0606-528 SpacerBumper |
0606-528 |
US $19.87 |
||
|
11
|
11
0106-336
Handlegrip
|
0106-336 |
— | ||
|
12
|
12
8041-366 NutLock |
8041-366 |
US $4.30 |
||
|
13
|
13
0123-765 WasherCup |
0123-765 |
US $29.50 |
||
|
14
|
14
8007-611 Screw |
8007-611 |
US $0.55 |
||
|
15
|
15
0706-448 BracketR.h.; backrest |
0706-448 |
US $79.72 |
||
|
15
|
15
0706-449 BracketL.h.; backrest |
0706-449 |
US $79.72 |
||
|
16
|
16
0606-505
Snowflap
|
0606-505 |
— | ||
|
17
|
17
0606-627 Tube |
0606-627 |
US $24.88 |
||
|
18
|
18
8007-585 ScrewCap |
8007-585 |
US $2.05 |
||
|
19
|
19
8007-587 Screw |
8007-587 |
US $0.41 |
||
|
20
|
20
8007-589 Screw |
8007-589 |
US $2 |
||
|
21
|
21
0706-460 SpacerTube |
0706-460 |
US $12.22 |
||
|
22
|
22
0606-529 Spacer |
0606-529 |
US $62.20 |
||
|
23
|
23
0606-487 ClosureTube |
0606-487 |
US $13.99 |
||
|
24
|
24
0120-320 Hitch |
0120-320 |
US $34.67 |
||
|
25
|
25
8050-212 Washer |
8050-212 |
US $10.20 |
||
|
26
|
26
8050-247 Washer |
8050-247 |
US $8.80 |
||
|
27
|
27
0123-107 NutLock |
0123-107 |
US $8.64 |
||
|
28
|
28
0623-133 Screw |
0623-133 |
US $6.75 |
||
|
29
|
29
0706-620 BumperRear |
0706-620 |
US $59.79 |
||
|
30
|
30
0212-133 DecalFrench |
0212-133 |
US $7.46 |
||
|
31
|
31
0212-271 Decal "towing caution" |
0212-271 |
US $7.46 |
||
|
32
|
32
0611-712
Decal
|
0611-712 |
— | ||
|
33
|
33
8002-045
Screw
|
8002-045 |
— | ||
|
34
|
34
8050-222 Washer |
8050-222 |
US $17.60 |
||
|
35
|
35
0123-108 NutNylon cap |
0123-108 |
US $8.80 |
||
|
36
|
36
0114-432 BracketHitch |
0114-432 |
US $30.62 |
||
|
37
|
37
0123-982
Screw
|
0123-982 |
— | ||
|
38
|
38
0606-641
Spacer
|
0606-641 |
— | ||
|
39
|
39
8050-217 Washer |
8050-217 |
US $3 |
||
