	Description	OEM Part #	Price
1	1 1623-292 Clamp Hose	1623-292	US $5.89
2	2 0610-667 Hose Breather	0610-667	US $39.53
3	3 0770-712 Tank Separator	0770-712	US $149.26
4	4 0610-684 Clamp Hose	0610-684	US $3.46
5	5 0610-666 Hose Drain; breather	0610-666	US $68.17
	replacement
5	5 3007-507 Hose Drain	3007-507	US $68.17
6	6 1623-285 Clamp Hose	1623-285	US $21.10
7	7 1623-291 Clamp Hose	1623-291	US $1.86
8	8 0610-665 Hose Separator; breather	0610-665	US $43.62
9	9 1623-288 Clamp Hose	1623-288	US $3.64
10	10 8408-610 Screw Cap	8408-610	US $1.81
11	11 1670-660 Tank	1670-660	—
12	12 0610-692 Hose 25 ft; gasline	0610-692	US $128.24
12	12 0610-693 Hose 100 ft; gasline	0610-693	US $94.90
13	13 4606-209 Cap Filler neck	4606-209	US $15.06
14	14 0623-736 Clamp Hose	0623-736	US $7.88
15	15 0610-640 Hose Coolant tank/engine; coolant	0610-640	US $21.13
16	16 0610-639 Hose Heat exchanger; coolant	0610-639	US $47.30
17	17 0610-638 Hose Engine/heat exchanger; coolant	0610-638	US $118.70
18	18 0610-734 Loom	0610-734	US $23.22
19	19 3706-369 Bracket Coolant hose	3706-369	US $19.89
20	20 8408-020 Screw Cap	8408-020	US $4.67
21	21 0123-788 Tie Cable	0123-788	US $2.90
22	22 1623-092 Clamp Hose	1623-092	US $4.70
23	23 0623-373 Clamp Hose	0623-373	US $7.68
24	24 0610-657 Hose Bypass; coolant	0610-657	US $34.85
25	25 1623-278 Clamp Hose	1623-278	US $1.49
26	26 0623-540 Protector Hose	0623-540	US $12

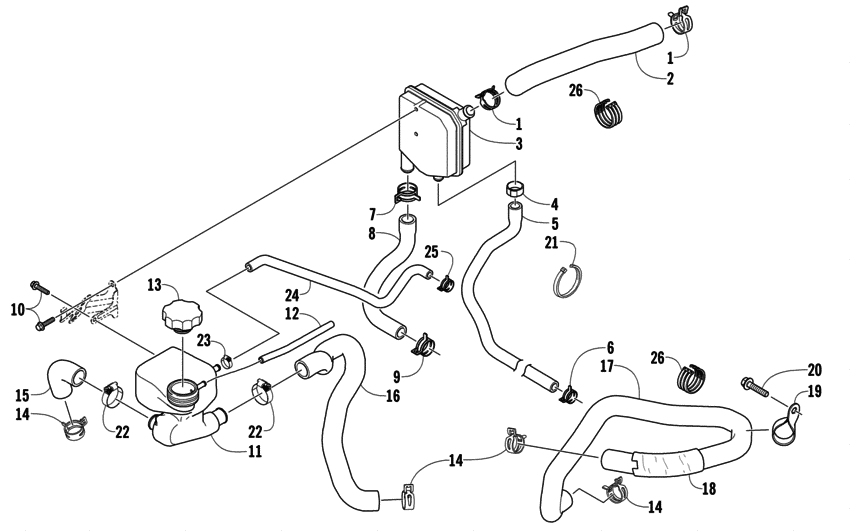

Cooling assembly Diagram Arctic Cat JAGUAR Jaguar Z1 Early Build Green General 11015684-698407
